ALRE Room temperature controller

Alre-it Room Temperature Controller AP RTBSB-001.000

Manufacturer: Alre-it
Designation: Room temperature controller AP 5-30 °C, Normally Open, 10 A
Type: RTBSB-001.000
Design: On/Off
Power Supply Type: 230 V AC

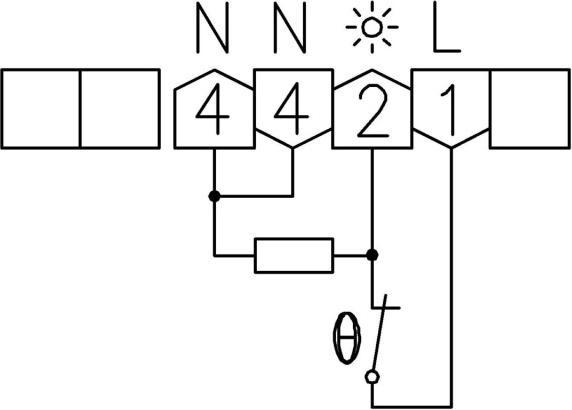

Connection: three-/four-wire
With Receiver: no
Measuring Range: 5..30 °C
External Sensor: no
Thermal Feedback: parallel
Control Characteristic: P
Suitable for Heating: yes
Number of Heating Outputs: 1
Suitable for Cooling: no
Differential Value: 0.5 K
Adjustable Differential: no
Temperature Readable: no
Sensor/Probe Design: Bimetal
Mounting Type: Surface-mounted
With Display: no
Operation: Rotary
Concealed Operation: no
With Drinking Water Circuit: no
Contact Type: Normally Open (NC)
Max. Voltage of Contacts: 230 V
Max. Contact Load: 10 A
Protection Class (IP): IP30
Protection Class (NEMA): other
Explosion-Proof: no
Color: pure white
RAL Number: 9010
Height: 83.4 mm
Width: 78.3 mm
Depth: 25.5 mm
Class of Temperature Controller: I

The Alre-it Room Temperature Controller AP RTBSB-001.000 is an electromechanical room temperature controller in a surface-mounted housing designed for regulating or monitoring temperatures in offices, living spaces, and hotels. It is suitable for all types of heating systems. The thermal feedback achieves a very precise switching differential. The adjustment range can be modified using the range limitation located under the adjustment knob. The device is mounted via surface or wall mounting (4-hole fastening on a flush-mounted box).
