ALRE Room temperature controller

Alre-it room temperature controller AP RTBSB-201.000

Manufacturer: Alre-it
Designation: Room temperature controller AP 5-30 °C, normally open 2 A, 230 V
Type: RTBSB-201.000
Design: On/Off
Power supply type: 230 V AC

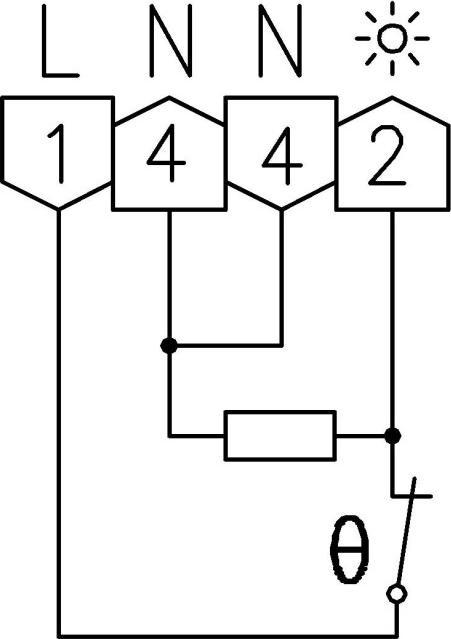

Connection: three-/four-wire
With receiver: no
Measuring range: 5..30 °C
External sensor: no
Thermal feedback: parallel
Control characteristic: P
Suitable for heating: yes
Number of heating outputs: 1
Suitable for cooling: no
Differential value: 0.5 K
Adjustable differential: no
Temperature readable: no
With noise level indicator: no
Sensor/probe design: Bimetal
Mounting type: Surface-mounted
With display: no
Operation: Rotary
Concealed operation: no
With drinking water circuit: no
Contact type: Normally Open (NC)
Max. voltage of contacts: 230 V
Max. contact load: 2 A
Protection class (IP): IP30
Protection class (NEMA): other
Explosion-proof: no
Color: pure white
RAL number: 9010

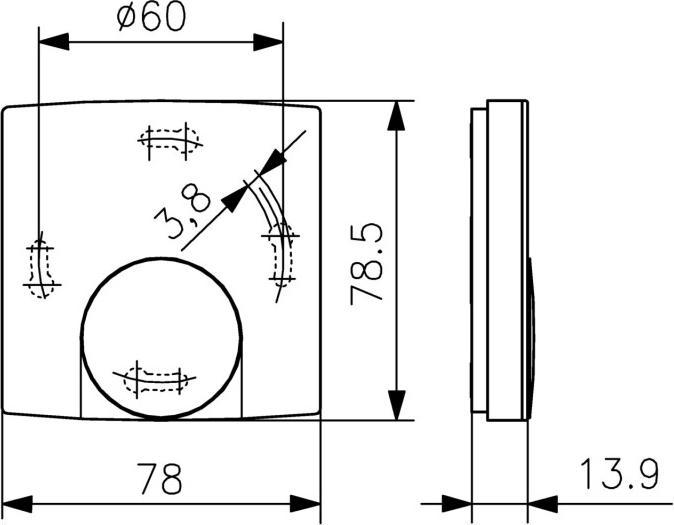

Height: 78.5 mm
Width: 78 mm
Depth: 13.9 mm
Class of temperature controller: I

Alre-it room temperature controller AP RTBSB-201.000: additional details
Electromechanical room temperature controller in a super-slim surface-mounted housing (only 13.9 mm deep) for regulating or monitoring temperatures in offices, living spaces, and hotels. The thermal feedback achieves a very precise switching differential. The adjustment range can be modified using the range narrowing located under the adjustment knob. The device is mounted using surface/wall mounting (4-hole fastening on a flush-mounted box). Suitable for hot water heating systems.
