ALRE IT VOORL-318.053

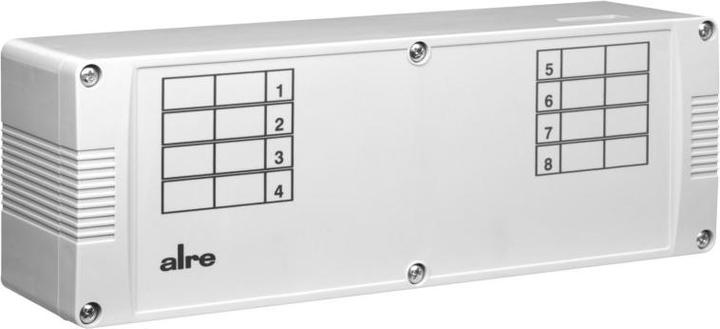

Alre-it Terminal Block VOORL-318.053

Manufacturer: Alre-it
Designation: Terminal Block
Max. Room Thermostats: 8
Type: VOORL-318.053
Supply Voltage: 230 V
Output Voltage: 230 V
Number of Channels/Zones: 8
Suitable for Heating: yes
Suitable for Cooling: yes
Contact Design: Normally Open (NO)
Max. Contact Voltage: 230 V
Max. Contact Load: 3 A
Protection Class (IP): IP20
Width: 255 mm
Height: 90 mm
Depth: 70 mm

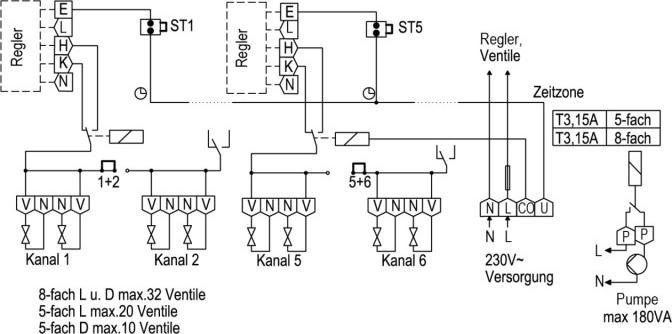

This device has been specifically designed for the quick, clear, and comfortable wiring of 230 VAC individual room temperature controllers with the associated valve actuators for fixed installation. The heating/cooling switching is done via a central contact. Heating controllers with changeover contacts can be connected as controllers. Significant time and cost savings are achieved through the convenient wiring using tool-free spring clamp terminals, as well as the ingeniously fast and clean installation in the heating circuit distributor using optional magnetic feet. By using a time controller, a master-slave time zone can be created. The time zone can also be switched to ECO mode via an external switching contact at terminal U.
EAN: 4050528077318.
