ALRE Dew point sensor

Alre-it dew point sensor TPS 1

Manufacturer: Alre-it

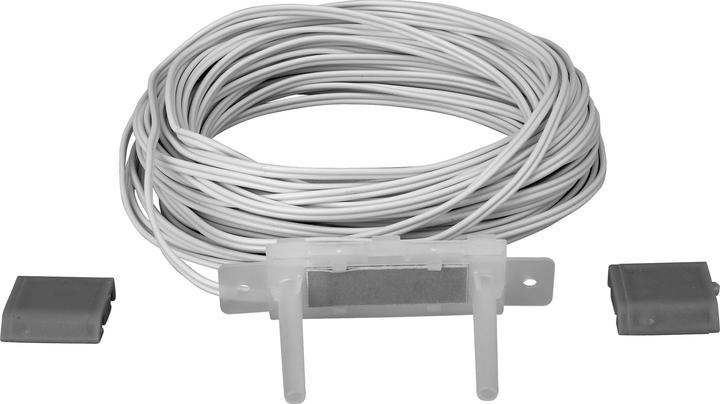

Description: Dew point sensor for cooling mat, 10m cable
Type: TPS 1
With fixing material: Yes
Fixed cable on sensor: Yes
Cable length: 10 m
With display: No
Explosion-proof: No
Protection class (IP): Other

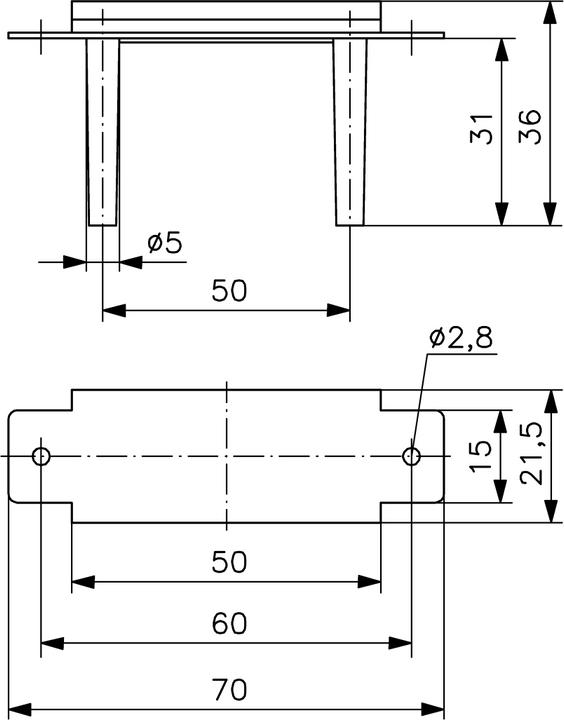

Housing height: 70 mm
Housing width: 21.5 mm
Housing depth: 36 mm

This dew point sensor was developed in conjunction with an Alre dew point monitor or chilled ceiling controller specifically for detecting and signaling the dew point. When installed correctly, it prevents condensation dripping from the cooled parts of the cooling circuit.

Application: Drywall cooling ceiling (plasterboard) with applied capillary tube mat, metal cooling ceiling with integrated capillary tube system. Installation/fastening is carried out using clips on the cooling ceiling capillary tube. Sensor cable can be extended up to 50 m with 2 x 0.5 mm².
