AEG RTD 903 TC

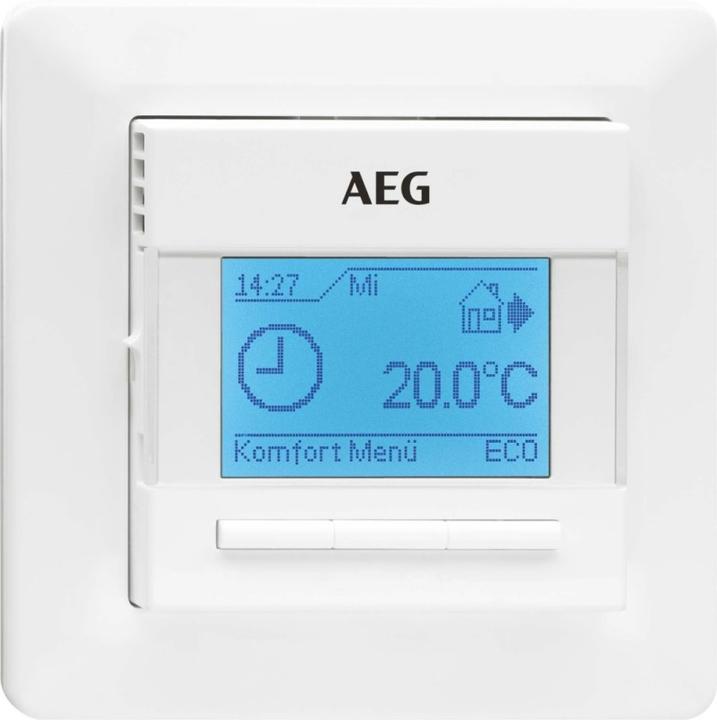

AEG Electric Room Temperature Controller AEG RTD 903 TC

Manufacturer: AEG
Designation: Electric room temperature controller with touch color display
Type: AEG RTD 903 TC
Design: On/Off
Power supply type: 230 V AC
With receiver: No
Measuring range: 5 to 35 °C
External sensor: No
Thermal feedback: None
Control characteristic: Other
Suitable for heating: Yes
Number of heating outputs: 1
Suitable for cooling: No
Adjustable differential: No
Temperature readable: Yes
With noise level indicator: No
Sensor type: Resistance sensor
Mounting type: Flush-mounted
With display: Yes
Operation: Button
Concealed operation: No
With drinking water circuit: No
Contact type: Changeover (NO/NC)
Max. voltage of contacts: 230 V
Max. contact load: 16 A
Protection class (IP): IP21
Explosion-proof: No
Color: White
Height: 40 mm
Width: 84 mm
Depth: 40 mm
Power consumption in standby: 0.5 W
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

AEG Electric Room Temperature Controller AEG RTD 903 TC: Additional Details
Application: Electronic room temperature controller to adjust the room temperature to individual needs. It features definable weekly programs and a menu-guided interval programming. The weekly program is factory pre-set. Intuitive and simple touchscreen operation. The large, easily readable, and illuminated color display shows the various operating functions. Desired operating modes can be easily selected via shortcut keys. The self-adjusting, learning control automatically determines the preheating time in timer mode. The temperature setting range can be limited or blocked. Retrospective display of energy consumption for week, month, and year. Factory settings for all functions with a simple reset function. Flush-mounted installation compatible with nearly all switch programs.
