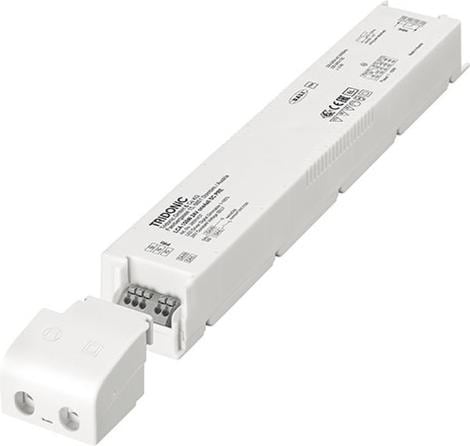

Tridonic Dimmable installation power supply 24V 150W with DALI and Push-Dim input

Dimmable installation power supply unit 24 Volt 150 Watt from Tridonic of the Premium series from European production.

Thanks to one4all, the driver with a dimming range of 1-100% can be used for dimming via DALI, DSI, switchDIM and many other configurations.

• Dimmable 24 V constant voltage LED driver for flexible constant voltage LED strips

• one4all interface and ready2mains enable various dimming options

• Dimming range from 1 - 100

• No external dimmer necessary

• Suitable for safety lighting systems according to EN 50172

• Nominal life up to 50,000 h

• 5 years warranty

Interfaces:

• one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)

• ready2mains (configuration and dimming via mains)

• Terminals: 45° plug-in terminals

The LED power supply has the CE, TÜV test mark and the following EU standards: EN61347-1 / EN61347-2-13 / EN55015 / EN61547 / EN61000-3-2 / EN 61000-3-3.
