Philips Ballast

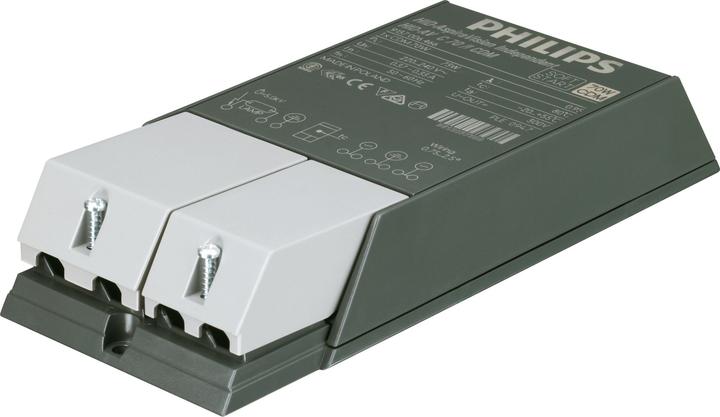

Philips Lighting ballast HID-AV C 35-70/I CDM

Manufacturer: Philips Lighting
Designation: Ballast
Voltage: 220-240V
Frequency: 50/60Hz
Type: HID-AV C 35-70/I CDM
Version: Electronic
Multiwatt version: Yes
Dimming options:

• 0-10 V: No
• 1-10 V: No
• DALI: No
• DMX: No
• Potentiometer (device-integrated): No
• GPRS: No
• LineSwitch: No
• Manufacturer-specific: No
• Mains voltage modulation: No
• Phase section: No
• Phase angle: No
• Programmable: No
• RF: No
• Sine Wave Reduction: No
• Touch and Dim: No
• Zigbee: No
• With push-button: No
• Without dimming function: Yes

Lamp compatibility:

• HI lamp type: Yes
• HM lamp type: No
• HS lamp type: No
• LS lamp type: No
• T7 lamp type: No
• T16 lamp type: No
• T16-R lamp type: No
• T26 lamp type: No
• T38 lamp type: No
• T-R lamp type: No
• T-U lamp type: No
• TC-D lamp type: No
• TC-DD lamp type: No
• TC-DEL lamp type: No
• TC-F lamp type: No
• TC-L lamp type: No
• TC-QEL lamp type: No
• TC-S lamp type: No
• TC-SEL lamp type: No
• TC-T lamp type: No
• TC-TEL lamp type: No

Suitable for lamp wattage (1-lamp): 35-70 W
Suitable for number of lamps: 1
Rated voltage: 220-240 V
Housing: Plastic housing
With strain relief: No
Protection class (IP): IP20
Protection class: I
Length: 189.2 mm
Width: 83.5 mm
Height: 34.7 mm

Philips Lighting ballast HID-AV C 35-70/I CDM features the innovative electronic MultiWatt ballast for CDM lamps. The recently added switching function offers maximum flexibility, allowing the ballast to be set to three different lamp wattages. The intelligent SOFT START function enables more luminaires to be operated on one circuit breaker than before.
