Kern Digital force gauge (external measuring cell)Max 200 kN d=40 N

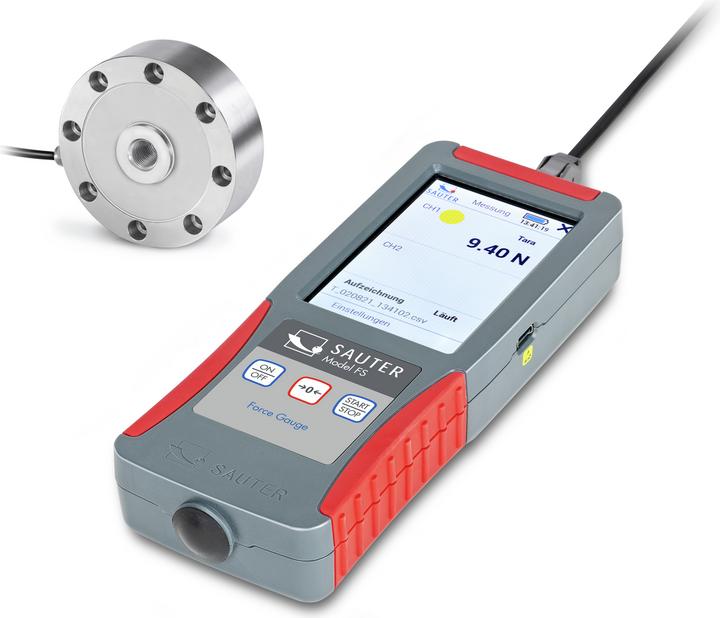

Premium force measuring device FS 2; Measurement of forces in different tension or compression directions possible with just one measuring device; 3.5" touchscreen; Standard version with 2 measuring channels for external force sensors (can be subsequently expanded from 2 to 4); The specific data of an external sensor is stored directly in the connector; Adjustable SI units: kg, N, kN, mN, MN, Nm, kNm, mNm; Track function for continuous measurement display; Peak value measurement; Tolerance function; Internal device memory (16 GB); USB interface for data transfer and power supply as standard; Two-point adjustment with weights or numerical adjustment possible; Supplied in a high-quality, robust design.Two-point adjustment with weights or numerical adjustment possible; Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C; Load cell made of alloy steel CR 20000-1Y1; Accuracy class in accordance with OIML C1; High precision (combined error 0.05% F.S.); Nominal characteristic value: 2 mV/V; Dust and splash water protection IP68 (according to EN 60529), hermetically sealed; Application: for tension and compression force measurements;.
