1. Festo 2/2 Way Solenoid Valve, NC, G1/8, 3mm
Manufacturer Series: VZWD
Mounting type: Inline
Function: 2/2
Connection thread: G1/8
Actuation type: Solenoid/spring
Solenoid connection: Yes
Body material: Stainless steel
Operating temperature min: -10°C
Operating temperature max: +35°C
Configuration: 2 positions, single
VZWD series solenoid valves are ideal for use in high pressure applications with low flow rates. The valve can operate without differential pressure at up to 15 bar even with closed media circuits.
Features and benefits:
- For water, air, and neutral media
- Operation is not affected by light dirt
- Available with G1/4 or G1/8 connection thread
- Mechanical spring return
- Integrated N/C function
- Max. operating pressure of 15 bar
- Inline mounting
- Protection class IP65
Field of application: Pneumatics, high pressure cleaning, process automation, vacuum technology, venting of gas and tank systems.

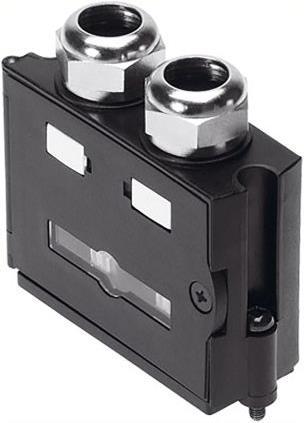

2. Festo SUB 9 Pin to 2 x 5 Pole Fieldbus Adapter
Fieldbus module adapters include FBA-1 and FBA-2. They feature plugs and sockets for fieldbus connectors. The straight 9-pin female Sub-D connects to a straight 5-pin male M12 for CANopen/DeviceNet. There are also configurations for straight 9-pin female Sub-D to straight 5-pin male/straight 5-pin female M12, and straight 9-pin male Sub-D to straight 5-pin male/straight 5-pin female M12 for PROFIBUS/CC-LINK.
Sockets for fieldbus connectors have a connection cross-section of 0.75 mm² to 2.5 mm², including a straight 5-pin socket M12 for FBA-2-M12-5POL and an angled 5-pin socket with screw connection for FBA-1-SL-5POL.
Fieldbus plugs with a 9-pin Sub-D connector also have a connection cross-section of 0.75 mm², including a straight plug for FBA-2-M12-5POL, a plug for DeviceNet/CANopen, a straight plug for PROFIBUS, an angled plug for CANopen, and a plug for PROFIBUS.
Additionally, there is a T-adapter for fieldbus connectors on valve connections, featuring a 5-pin plug M12 to 2 5-pin sockets M12.
3. Festo COMMO-ST Encoder Cable
The COMMO-ST Encoder Cable from Festo is a high-quality connection cable specifically designed for use with stepper motors and servo drives. With a length of 10 meters, it provides ample flexibility for various applications in electrical engineering. The 8-pin A-coded M12 connector ensures a reliable connection and is ideal for use in industrial environments. The cable is robust and durable, making it an excellent choice for demanding applications. It is designed to ensure stable signal transmission and optimize the efficiency of motor controls. This cable is a valuable addition to any electrical engineering accessory and offers a simple solution for connecting motors and control devices.
- 8-pin A-coded M12 connector for reliable connections
- Suitable for stepper motors and servo drives
- Robust construction for industrial applications
- Optimizes the efficiency of motor controls.
4. Festo G1/2" 0.5-12 bar F/R with On/Off Valve
Manufacturer series: MS
Connection type: G1/2
Drain type: Manual
Filter size: 40µm
Gauge connection: G1/2
Gauge connection thread size: 1/2 inch
Connection thread size: 1/2 inch
Operating pressure max: 18 bar
Operating ambient temperature max: +50°C
Process operating temperature min: 0°C
Operating pressure min: 0.8 bar
Operating ambient temperature min: 0°C
Compressed air according to ISO 8573-1:2010 [-:4:-] Noble gases. The MSB series filter regulator features a filter regulator and a pressure gauge. It includes a 40-μm filter, a lockable regulator head, a plastic bowl with protection, and a manual condensate drain.
Features and benefits:
- Flow direction: left to right
- Manual rotating condensate drain
- 40-μm filter
- Operating pressure: 0.5 to 12 bar
- Flow rate: MSB4 is 1400 L/min to 1700 L/min, MSB6 is 4000 L/min to 5100 L/min
- Pneumatic connection: MSB4 is G1/4, MSB6 is 1/2
- Corrosion resistance classification 2 (moderate corrosion)
- Die-cast aluminum body with plastic shell and protection.
5. Festo G1/2" Filter regulator unit 0.3 to 7 bar
Manufacturer Series: MS6-LFR
Connection Type: G1/2
Drain Type: manual
Filter Size: 5µm
Pressure Gauge Connection: G 1/2
Pressure Gauge Connection Thread Size: 1/2 inch
Connection Thread Size: 1/2 inch
Max Operating Pressure: 20 bar
Max Operating Ambient Temperature: +60°C
Min Process Operating Temperature: -10°C
Min Operating Pressure: 0.8 bar
Pressure Gauge Connection Standard Thread: G
Filter regulators of the MS-LFR series. A combined pressure regulator and filter from Festo. The pneumatic filter regulators MS4 and MS6 remove impurities from compressed air down to a particle size of 5 μm or 40 μm (depending on the filter cartridge). Available in pressure ranges of 0.3 bar to 7 bar and 0.5 bar to 12 bar, the MS series filter regulators have a high flow rate and an integrated return for draining air from connection 2 to port 1. Available with G1/8 or G1/4 connections. Features and benefits: Constant output pressure with return, choice between fully automatic and manual drainage, plastic or fully integrated metal cover protection. Can be equipped with an analog pressure gauge or a sensor with an LCD display. The rotary knob with a detent can be locked to prevent adjustment changes.
6. Festo 3/2 Single Solenoid N/C Valve, G1/4"
Manufacturer Series: MFH
Connection Thread: G1/4
Housing Material: Aluminum Die Casting
Standard Thread: G
Tiger Classic Solenoid Valves. The Tiger Classic valves can be mounted with hollow screws on PAL distribution strips or on PRS distribution blocks. The distribution strip and the distribution block have 2 to 6 valve positions. Free positions can be sealed with blind caps on PAL distribution strips or with blind plates on PRS distribution blocks. Separate pressure levels can be provided to individual valves using the hollow screws with threaded connections.
Features and Benefits:
- Extremely durable diaphragm valve concept for all 3/2 and 5/2-way valves
- Electric actuation with F-magnet coil
- High flow rates
- Pipe threads in sizes G1/8 and G1/4
- Proven mounting on PAL or PRS distribution strips with hollow screws
- Optimized response times with patented U-ring and servo control
- RoHS compliant.
7. Festo 10 Position G1/8" Size 10 Valve Manifold
Manufacturer Series: VABM
Type: Terminal Block
Number of Stations: 10
Connection Thread: G1/8
Housing Material: Aluminum Alloy
Thread Size: 1/8 inch
Standard Thread: G
Electrical Connection Type: Screw Fastening
Terminal blocks of the VABM series. The VABM terminal blocks are designed for the pneumatic connection of VUVG valves. Features and benefits: Mounting in any position, corrosion resistance class 2 (moderate corrosion exposure), through-hole, RoHS compliant, distribution block made of aluminum alloy, half-coupling and terminal plate valve options available.
8. Festo 6 Position G1/4" Size 14 Valve Manifold
Manufacturer Series: VABM
Type: Connection Strip
Number of Stations: 6
Connection Thread: G1/4
Housing Material: Aluminum Alloy
Thread Size: 1/4 Inch
Standard Thread: G
For Use With: Individual Valves of Series VUVG-LK
Connection strips of the VABM series. The VABM connection strips are designed for the pneumatic linking of VUVG valves. Features and Benefits: Mounting in any position, corrosion resistance class 2 (moderate corrosion exposure), through-hole, RoHS compliant, distribution strip made of aluminum alloy, half-coupling and connection plate valve options available.
9. Festo G1/2" FR/L 0.5-12 bar, 40 micron
Manufacturer series: MS
Connection type: G1/2
Drain type: Manual
Filter size: 60µm
Integrated pressure gauge: With pressure gauge
Pressure gauge connection size: G 1/2
Operating pressure min.: 1.5 bar
Operating ambient temperature min.: -10°C
Connection thread size: 1/2 inch
Connection standard thread: G
Operating pressure max.: 20 bar
Process operating temperature max.: +60°C
Compressed air according to ISO 8573-1:2010 [-:4:-] Inert gases. The MSB series is a filter regulator with pressure gauge and standard proportional oiler. It features a 40-μm filter, lockable regulator head, plastic bowl and guard, and manual condensate drain.
Features and benefits:
- Flow direction: from left to right
- Manual rotating condensate drain
- 40-μm filter
- Operating pressure: 1.5 to 14 bar
- Flow rate: for MSB4 900 l/min, for MSB6 3700 l/min
- Pneumatic connection: for MSB4 G1/4, for MSB6 1/2
- Corrosion resistance classification 2 (moderate corrosion)
- Die-cast aluminum body with plastic shell and protection.
10. Festo G1/4" FR/L 0.5-12 bar, 40 micron
Manufacturer series: MS
Connection: G1/4
Drain type: Manual
Filter size: 40µm
Integrated pressure gauge: With pressure gauge
Pressure gauge connection size: G1/4
Operating pressure min: 1.5 bar
Operating ambient temperature min: -10°C
Connection thread size: 1/4 inch
Connection standard thread: G
Max. operating pressure: 14 bar
Minimum pressure setting: 0.5 bar
Compressed air according to ISO 8573-1:2010 [-:4:-] Inert gases. The MSB series is a filter regulator with pressure gauge and standard proportional oiler. It features a 40-μm filter, lockable regulator head, plastic bowl and guard, and manual condensate drain.
Features and benefits:
- Flow direction: from left to right
- Manual rotating condensate drain
- 40-μm filter
- Operating pressure: 1.5 to 14 bar
- Flow rate: for MSB4 900 l/min, for MSB6 3700 l/min
- Pneumatic connection: for MSB4 G1/4, for MSB6 1/2
- Corrosion resistance classification 2 (moderate corrosion)
- Die-cast aluminum body with plastic shell and protection.
