Best Purecrea products in the Cables + Plugs category
On this page you'll find a ranking of the best Purecrea products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

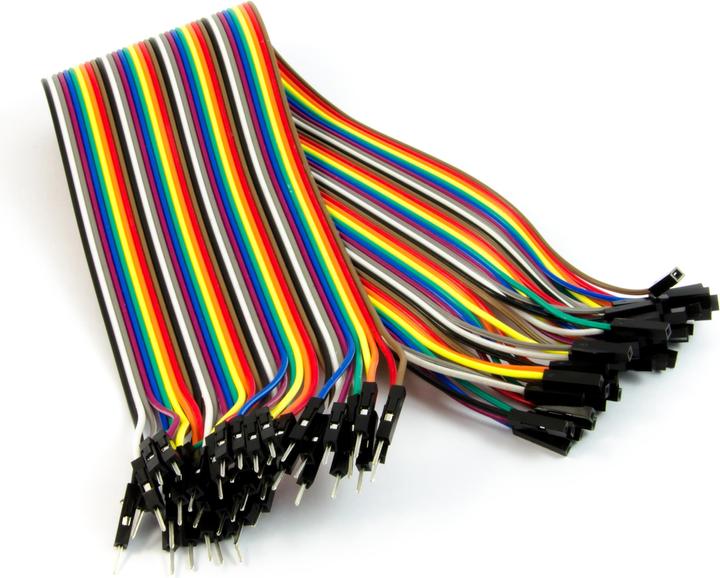

1. Purecrea Jumper cable Dupont Set 10cm 60 pcs.
Dupont cables are used to quickly connect components. In colloquial language, Dupont cables are also called jumper cables, test cables or connection cables. The jumper cables are perfect for plugging circuits onto breadboards and plug-in boards. Since you don't always need the same cables in your workshop, we have put together a set here that contains all the pin variants. This set is also perfect for schools. There are always 20 of each type. Available. The cables can be separated at will. If a cable is too short, you can simply plug in a second one and thus double the length.
Technical details:
Length: 10 cm
Weight set: 30g
Colours: black, white, grey, purple, blue, green, yellow, orange, red, brown
Scope of delivery:
20x F/F (Female/Female) 10cm
20x M/F (Male/Female) 10cm
20x M/M (Male / Male) 10cm.
2. Purecrea Arduino 9V Battery Plug with DC Connector 5.5mm / 2.1mm
With this cable you can connect your Arduino to a 9V battery. Of course, you can also cut off the 9V battery connection and mount another connector.
Technical details:
Cable length: approx. 15cm
Scope of delivery:
1x batteries plug with DC plug.
3. Purecrea 10 pcs. test leads with crocodile clips in different colours
These test leads with crocodile clips are the perfect helpers in any hobby electronics lab. You can use them wherever you want to check or measure something quickly. The set consists of 5 different colours of two pieces each.
Technical details:
Colour: black/red/white/green/yellow
Length: approx. 48cm
Total weight: 73g
Scope of delivery:
2x Black measuring cable length 50cm
2x red measuring cable length 50cm
2x Green measuring cable length 50cm
2x Yellow measuring cable length 50cm.
4. Purecrea JST-XH crimp plugs and sockets 2.54mm set 40 pieces
With this JST XH crimp connector set you always have the right connector at hand. The set also includes the crimp contacts. The sockets have a solder contact that fits on any PCB board with a pitch of 2.54mm.
Recommended accessories:
Engineer PA-09 crimping tool
Technical details:
Colour: White
Material: Plastic
Connector type: XH
Plug: Crimp contact
Socket: Solder contact
Grid dimension: RM 2.54 mm
Rated current: 1A AC, DC
Rated voltage: 125 V
Temperature range: -25 °C to +85 °C
Wire cross-section: AWG24 to AWG32
Box size: 125 x 65 x 22mm
Weight: 58g
Scope of delivery:
10x 2-pin male and female
10x 3-pin male and female
10x 4-pin male and female
10x 5-pin plug and socket
150x crimp contacts.
5. Purecrea JST 1.25mm crimp plug and socket set 60 pieces
With this JST PH 1.25mm crimp plug set you always have the right plug at hand. The set also includes the crimp contacts. The sockets have a solder contact that fits on any PCB board with a pitch of 1.25mm.
Recommended accessories:
Engineer PA-09 crimping tool
Technical details:
Colour: White
Material: Plastic
Connector type: JST 1.25mm
Plug: Crimp contact
Socket: solder contact
Pin spacing: 1.25mm
Pin configuration: 2pin, 3pin, 4pin, 5pin
Dimension housing: 130 x 65 x 23mm
Weight: 36g
Scope of delivery:
1x assortment box
20x 2pin plug and socket
20x 3pin plug and socket
10x 4pin plug and socket
10x 5pin plug and socket.
6. Purecrea Jumper cable Dupont Set 20cm 60 pcs.
Dupont cables are used to quickly connect components. In colloquial language, Dupont cables are also called jumper cables, test cables or connection cables. The jumper cables are perfect for plugging circuits onto breadboards and plug-in boards. Since you don't always need the same cables in your workshop, we have put together a set here that contains all the pin variants. This set is also perfect for schools. There are always 20 of each type. Available. The cables can be separated at will. If a cable is too short, you can simply plug in a second one and thus double the length.
Technical details:
Length: 20 cm
Weight set: 32g
Colours: black, white, grey, purple, blue, green, yellow, orange, red, brown
Scope of delivery:
20x F/F (Female/Female) 20cm
20x M/F (Male/Female) 20cm
20x M/M (Male / Male) 20cm.
7. Purecrea Cable lugs crimp connector set 330 pieces
This cable lug crimp connector set includes the most common insulated cable lugs. These crimp connectors are perfect for electrical repairs on the car.
Recommended accessories:
IWISS HS-30J cable lug crimper 0.5-6mm2
Recommendation for cross-sections:
Red: 0.25mm2 to 1.5mm2
Blue: 1.0mm2 to 2.5mm2
Yellow 2.5mm2 to 6mm2
Technical details:
Material: copper + PVC
Number of types: 18
Total number of pieces: 330 pieces
Colours: Red, blue and yellow
Size: 205 x 110 x 30mm
Weight: 255g
Scope of delivery:
20 x MDD1.25-110 Red
20 x MDD2-110 Blue
20 x MDD1.25-187 Red
20 x MDD2-187 Blue
20 x MDD1.25-250 Red
20 x MDD2-250 Blue
20 x FDD1.25-110 Red
20 x FDD2-110 Blue
20 x FDD1.25-187 Red
20 x FDD2-187 Blue
20 x FDD1.25-250 Red
20 x FDD2-250 Blue
20 x SV1.25-4 Red
20 x SV2-4 Blue
10 x MDD5.5-250 Yellow
10 x FDD5.5-250 Yellow
15 x FDFD1.25-250 Red
15 x FDFD2-250 Blue.
8. Purecrea Dupont Crimp Plug and Socket Set 620 pieces
With this Dupont crimp plug set you always have the right plug at hand. The set also includes the crimp contacts. The plugs can be crimped as female or male, depending on which crimp contact you choose.
Recommended accessories:
Engineer PA-24 Micro Crimp Tool
IWISS SN-28B Dupont Crimping Pliers 0.1-1mm2
Technical Details:
Colour: black
Material: Plastic
Connector type: Dupont
Connector: Crimp contact
Grid dimension: RM 2.54mm
Rated current: 2A AC, DC
Max voltage: 100 V
Temperature range: -25°C to +85°C
Wire gauge: AWG16 to AWG26
Box size: 175 x 105 x 22mm
Weight: 140g
Scope of delivery:
200x Female Crimp Pins
200x Male Crimp Pins
10x 2x6
10x 2x5
10x 2x4
10x 2x3
10x 2x2
20x 1x6
20x 1x5
20x 1x4
20x 1x3
40x 1x2
50x 1x1.
9. Purecrea DC socket Female Barrel Jack 5.5mm / 2.1mm with screw terminals
This DC socket is ideal for extending cables and wires. The socket has two screw terminals. This allows you to attach a cable quickly and easily.
Technical details:
Colour: Black
Screw terminals
Connector: DC connector 5.5mm / 2.1mm
Size: 36.5 x 14 x 13mm
Weight: 7g
Scope of delivery:
1x DC socket 5.5mm / 2.1mm with screw terminals.
10. Purecrea JST-PH crimp plugs and sockets 2mm set 40 pieces
With this JST PH 2.0mm crimp connector set you always have the right connector at hand. The set also includes the crimp contacts. The sockets have a solder contact that fits on any PCB board with a pitch of 2mm.
Recommended accessories:
Engineer PA-09 crimping tool
Technical details:
Colour: White
Material: Plastic
Connector type: JST-PH 2mm
Plug: Crimp contact
Socket: solder contact
Grid dimension: RM 2mm
Rated current: 1A AC, DC
Rated voltage: 100 V
Temperature range: -25 °C to +85 °C
Wire cross-section: AWG24 to AWG32
Box size: 130 x 70 x 22mm
Weight: 47g
Scope of delivery:
10x 2-pin male and female 2mm
10x 3-pin plug and socket 2mm
10x 4-pin plug and socket 2mm
10x 5-pin plug and socket 2mm
140x crimp contacts.
