Purecrea JST SM 2.54mm crimp plug and socket set 40 pieces

1Ratings
BrandMore from Purecrea
Currently out of stock

Product details

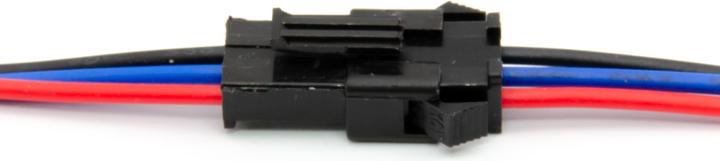

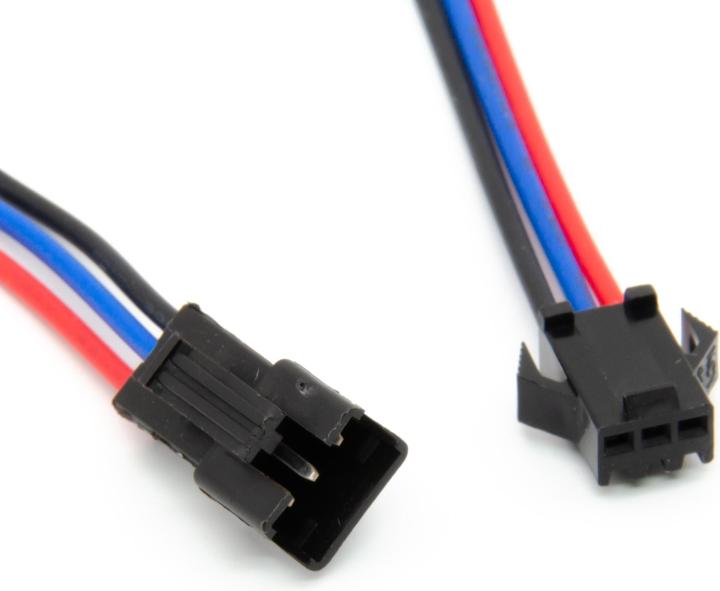

These JST SM connectors are perfect for crimping a locked connector. The set also includes the crimp contacts, which are sufficient for crimping all connectors.

Recommended accessories: Engineer PA-20 crimping tool

Technical details:
Colour: Black
Material: Nylon 66 UL94V-0
Connector type: JST SM 2.54mm
Plug: Crimp contact
Socket: Crimp contact
Spacing: RM 2.54mm
Rated current: 3A AC, DC
Rated voltage: 125V
Temperature range: -25°C to +85°C
Wire gauge: AWG22 to AWG28
Dimension box: 125 x 65 x 22mm
Weight: 64g

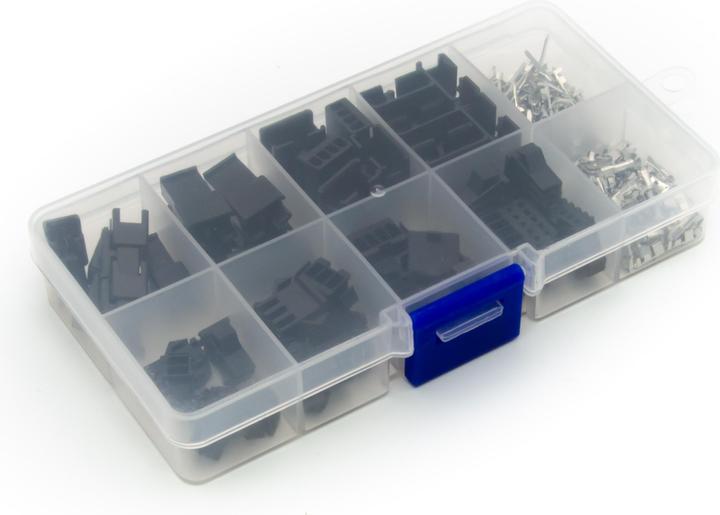

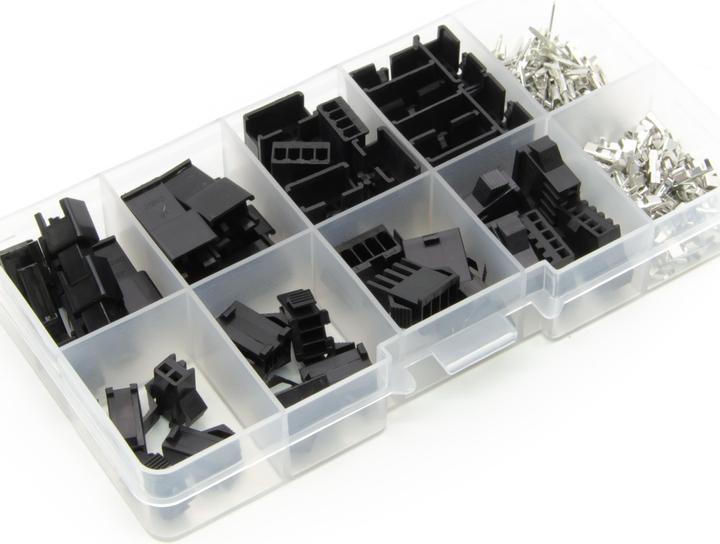

Scope of delivery:
5x SM-02M 2-pin connector
5x SM-03M 3-pin plug
5x SM-04M 4-pin connector
5x SM-05M 5-pin male
5x SM-02F 2-pin female
5x SM-03F 3-pin female
5x SM-04F 4-pin female
5x SM-05F 5-pin female
75x Male crimp contact
75x Female crimp contact.

Key specifications

Cable + connector type
Male
Item number
36195766

General information

Manufacturer
Purecrea
Category
Cables + Plugs
Release date
22.8.2023

Colour

Colour
Black

Material

Material
Nylon 66 UL94V-0

Cable + Connector Features

Cable + connector type
Male
Max. temperature
85 °C
Min. temperature
-25 °C
Manufacturer Type
JST SM 2.54mm

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
40 Piece
Scope of delivery
5x SM-02F 2-pin socket, 5x SM-02M 2-pin connector, 5x SM-03F 3-pin socket, 5x SM-03M 3-pin connector, 5x SM-04F 4-pin socket, 5x SM-04M 4-pin connector, 5x SM-05F 5-pin socket, 5x SM-05M 5-pin connector, 75x female crimp contact, 75x male crimp contact

Product dimensions

Weight
64 g
