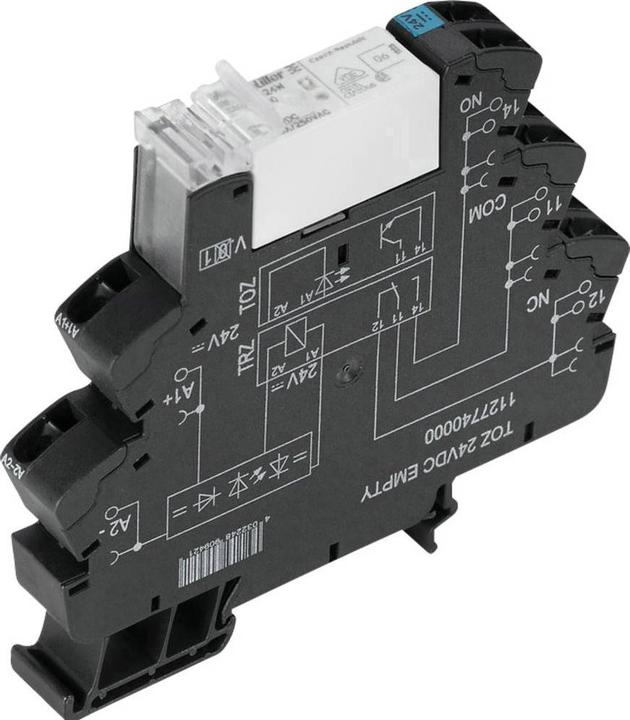

Weidmüller Switching relay 1W IP20 12.8x90x88mm 1479840000

Ratings
BrandMore from Weidmüller
Delivered between 14.1.2026 and 21.1.2026
5 pieces in stock at third-party supplier
Supplied by
Conrad CH
free shipping

Output voltage2

Product details

Weidmüller relay coupler TRZ 24VDC 1CO 16A
Manufacturer: Weidmüller
Designation: Relay coupler 1W
Type: TRZ 24VDC 1CO 16A
Type of electrical connection: Spring-loaded connection
With detachable terminals: No
Rated current: 16 A
Rated control supply voltage Us at DC: 19.2...28.8 V
Voltage type for actuation: AC
Actuator, polarity: Polarised
Actuator switching behaviour: Monostable
Number of contacts as change-over: 1
With positively driven contacts: No
Type of switching contact: Single contact
Complete device with base: Yes
With LED display: Yes
Protection class (IP): IP20
Width: 12.8 mm
Height: 90.5 mm
Depth: 87.8 mm

Weidmüller relay coupler TRZ 24VDC 1CO 16A: Further details include the assembly of plug-in relay and plug-in base. The control circuit and load circuit are galvanically isolated.
EAN: 4050118287868.

Key specifications

Scope of delivery
Complete appliance with base
Output current type
AC/DC
Relay type
Switching relay
Electric current output
16 A
Output voltage
8 V
input voltage
8 V
Number of poles
1x
Item number
32349531

General information

Manufacturer
Weidmüller
Category
Relays
Manufacturer no.
1479840000
Release date
6.12.2022

Relay properties

Relay type
Switching relay
input voltage
8 V
Output voltage
8 V
Electric current output
16 A
Output current type
AC/DC
Switching function
Changer
Number of closers
1x
Number of poles
1x

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Complete appliance with base

Product dimensions

Length
87.80 mm
Width
12.80 mm
Height
90.50 mm
