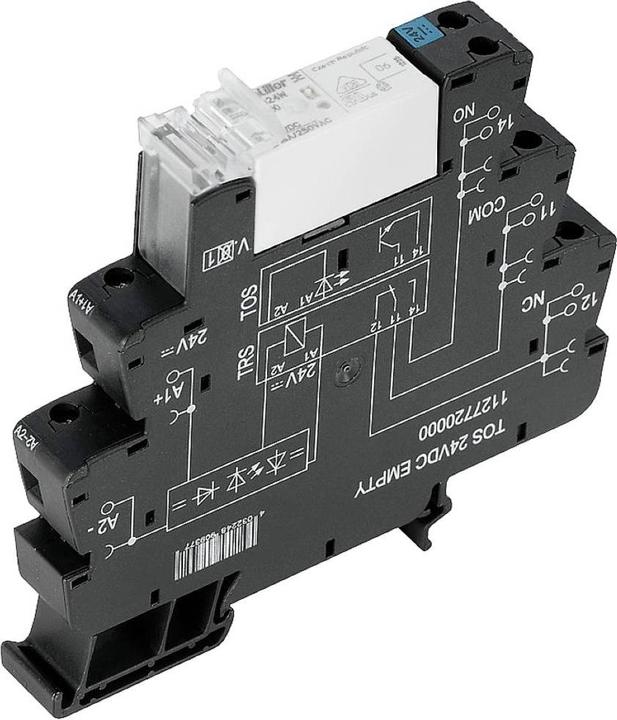

Weidmüller Switching relay 1W IP20 12.8x90x88mm 1479680000

Ratings
BrandMore from Weidmüller
Delivered between 13.1.2026 and 20.1.2026
5 pieces in stock at third-party supplier
Supplied by
Conrad CH
free shipping

input voltage4

Output voltage2

Product details

Weidmüller relay coupler TRS 24VDC 1CO 16A
Manufacturer: Weidmüller
Designation: Relay coupler 24V DC +/- 20% 16A
Type: TRS 24VDC 1CO 16A
Electrical connection type: Screw connection
With detachable terminals: No
Rated current: 16 A
Rated control supply voltage Us at DC: 19.2...28.8 V
Voltage type for actuation: AC
Actuator, polarity: Polarised
Actuator switching behaviour: Monostable
Number of contacts as change-over: 1
With positively driven contacts: No
Type of switching contact: Single contact
Complete device with base: Yes
With LED display: Yes
Protection class (IP): IP20
Width: 12.8 mm
Height: 89.6 mm
Depth: 87.8 mm

Weidmüller relay coupler TRS 24VDC 1CO 16A: Further details include assembly of plug-in relay and plug-in base. Control circuit and load circuit are galvanically isolated. EAN: 4050118288032.

Key specifications

Output current type
AC/DC
Relay type
Switching relay
Electric current output
16 A
Output voltage
250 V
input voltage
8 V
Item number
32349536

General information

Manufacturer
Weidmüller
Category
Relays
Manufacturer no.
1479680000
Release date
6.12.2022

Relay properties

Relay type
Switching relay
input voltage
8 V
Output voltage
250 V
Electric current output
16 A
Output current type
AC/DC
Switching function
Changer
Number of switching cycles
30000000x
Max. Switching capacity
0.38 kW

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
87.80 mm
Width
12.80 mm
Height
89.60 mm
Weight
56 g
