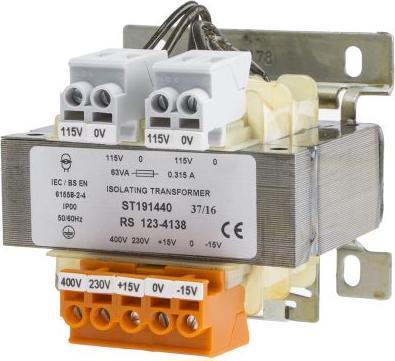

RS PRO 63VA Panel Isolation Transformer 2x115V

Primary rated voltage: 15 to 400V AC
Secondary rated voltage: 115V
Rated power: 63VA
Mounting type: DIN rail mounting, screw mounting
Length: 78mm
Width: 60mm
Depth: 94mm
Operating frequency min: 50Hz
Operating frequency max: 60Hz
Weight: 1.2kg

The RS Pro isolation transformers are designed for use in general applications. These single-phase transformers feature screw terminals for multiple inputs and brackets for screw mounting or DIN rail installation. They have a standard primary winding for 0-230-400V AC with adjustment options of +/- 15V around 0 and are 100% electrically and surge tested.

Features:

• High-quality safety and isolation transformers
• Second coil core section for complete separation between primary and secondary windings
• Quiet metal enclosures
• Grounding terminal included
• High efficiency
• Varnish impregnated.
