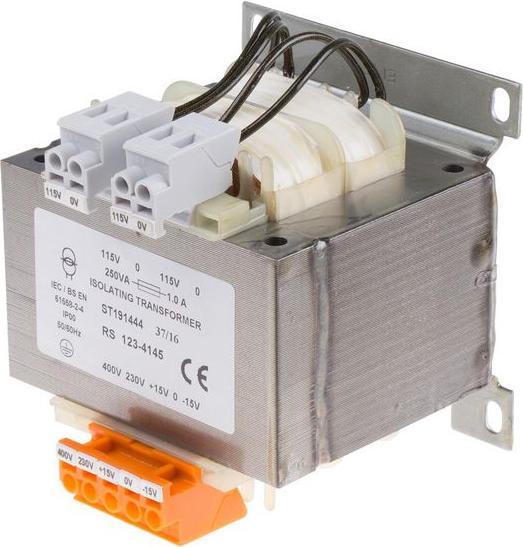

RS PRO 250VA Panel Isolation Transformer 2x115V

Primary rated voltage: 15 to 400V AC
Secondary rated voltage: 12V AC, 115V AC
Rated power: 250VA
Mounting type: DIN rail mounting, screw mounting
Length: 96mm
Width: 105mm
Depth: 110mm
Operating frequency min: 50Hz
Operating frequency max: 60Hz
Weight: 3.7kg

RS Pro panel isolating transformers are designed for use in general purpose applications. These single phase transformers feature screw terminals for multiple inputs and brackets for screw mounting or DIN rails. They have a standard primary winding for 0-230-400V AC with adjustment capabilities of +/- 15V around 0, and they are 100% electrically and flash tested.

Features:

• High quality safety and isolation transformers
• Second section coil core for complete separation between primary and secondary windings
• Low noise sheet packs
• Grounding terminal supplied
• High efficiency
• Lacquer impregnated.
