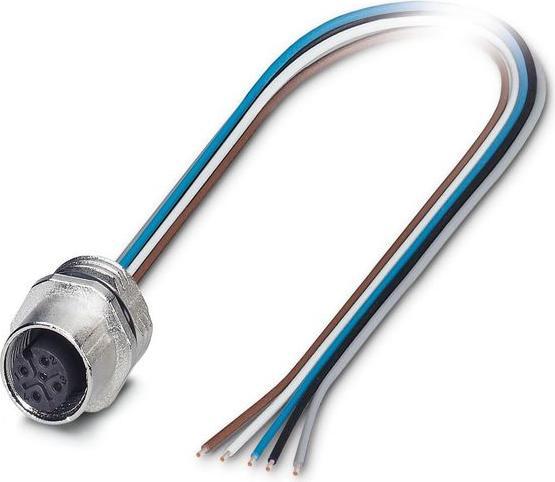

Phoenix Contact M12 flush-type socket SACC-E-M12FS5CON-PG9
Manufacturer: Phoenix Contact
Designation: M12 flush-type socket
Industry: PG9/0.5
Type: SACC-E-M12FS5CON-PG9
Contact design: Socket
Number of control contacts: 5
Design of housing: Straight
Rated current: 4 A
Ambient temperature: 85 °C
Rated voltage: 60 V
Overvoltage category: II
Pollution degree: 3
Material of contact coating: Nickel
Material of housing: Other
Material of threaded ring: Other
Type of interlocking: Other
Flammability class of insulating material according to UL 94: V0
With protective conductor: No
Protection class (IP), assembled: IP67
Minimum number of mating cycles: 100
Shielded: No
With status display: No
Further details: Sensor/actuator flush-type socket, 5-pin, M12, A-coded, front panel/screw mounting with Pg9 thread, with 0.5 m TPE stranded wire, 5x 0.34 mm².
Plug type | M12 |
Cable + connector type | Various |
Cable length | 0.50 m |
Item number | 36749358 |
Manufacturer | Phoenix Contact |
Category | Cables + Plugs |
Manufacturer no. | 1671098 |
Release date | 28.6.2023 |
Minimum order | 2 |
Material | Other |
Cable + connector type | Various |
Plug type | M12 |
Compatible hardware | Various |
Max. temperature | 85 °C |
Min. temperature | -40 °C |
mounting type | Wall-mounted |
Cable length | 0.50 m |
Manufacturer Type | 0,5, SACC-E-M12FS-5CON-PG9 |
Connectors Design | Flat |
Number of cores | 5 x |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Scope of delivery | 0,5, Built-in socket M12 industry -PG9 |
Length | 9 cm |
Width | 1.20 cm |
Height | 1 cm |
Weight | 22.40 g |
