Product details

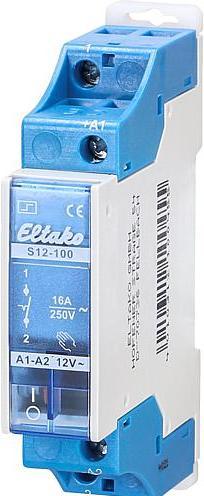

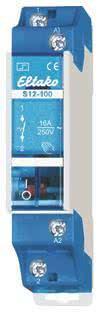

Eltako current impulse switch f.series S12-100-12V
Manufacturer: Eltako
Designation: Current impulse switch f.series
Type: S12-100-12V
Function: Other
Mounting type: DIN-rail
Width in pitch units: 1
Mounting depth: 55 mm

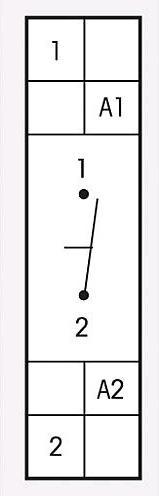

Number of contacts as normally open: 1
Control voltage 1: 12 V
Control voltage type 1: AC
Frequency of control voltage 1: 50 Hz
Rated breaking current: 16 A
Max. incandescent lamp load: 2300 W
Max. fluorescent lamp load: 2300 VA
Max. fluorescent lamp load (duo circuit): 2300 VA
Max. fluorescent lamp load (parallel compensated): 2300 W
Fluorescent lamp load (parallel compensated): 500 VA
Max. switching current (cos phi: 0 A)
Switching current (cos phi: 0.6): 10 A
Suitable for manual operation: Yes
Electromechanical current impulse switch with manual operation and switch position indication. Duty cycle 100%. Control power requirement 5-6 W. Contact spacing 3 mm. Distance control terminals/contact > 6 mm. Suitable for connection to SELV mains.
EAN: 4010312100455.
