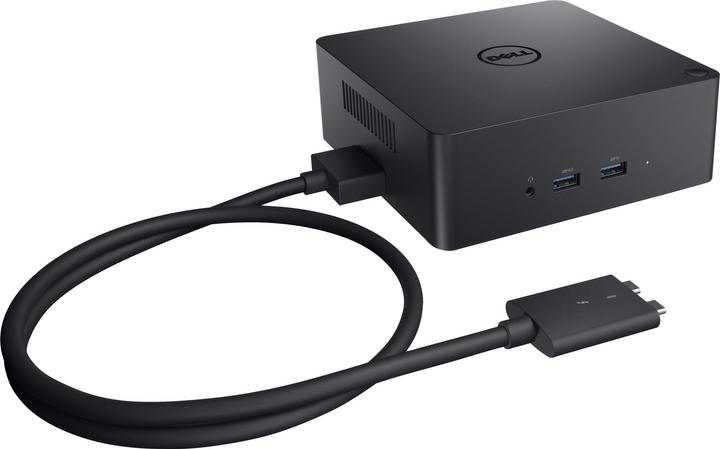

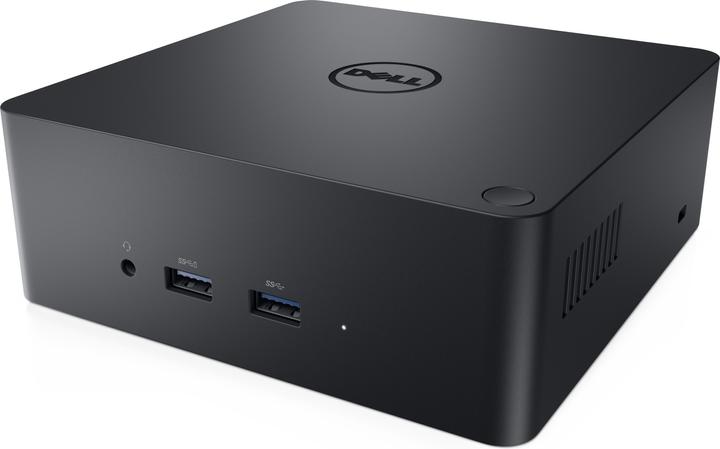

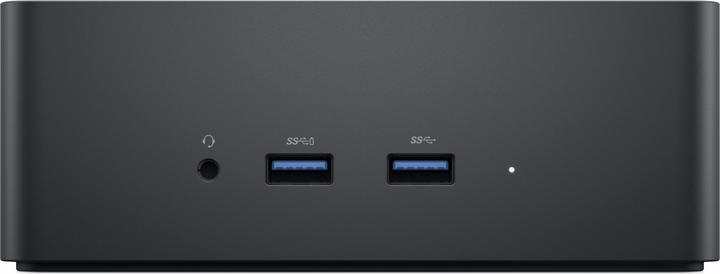

Dell TB18DC
Thunderbolt, 1 PortsOnly 3 items in stock at third-party supplier
Number of ports
Product details

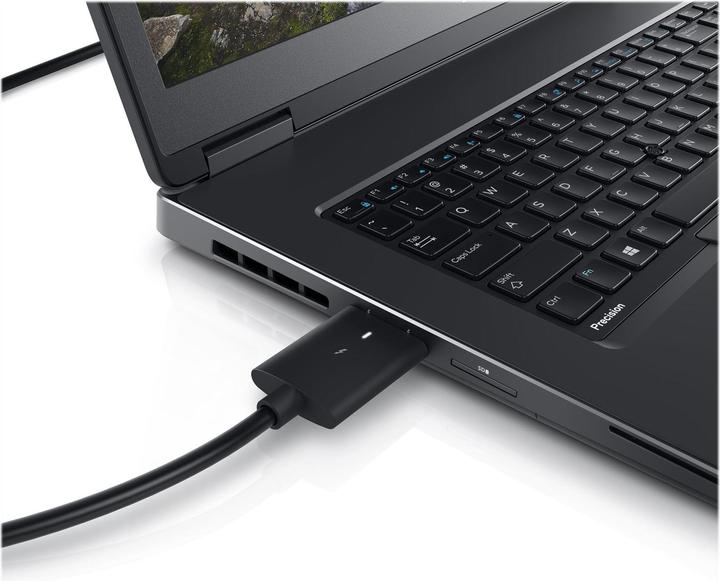

Leave the bulky power supply at home and conveniently connect your notebook with just one cable for docking and power. Boost your productivity by connecting up to three Full HD displays or two 4K displays, as well as Thunderbolt or USB peripherals, all with a single cable. With Dell ExpressCharge, you can charge your Precision 7530 or 7730 up to 80% in just one hour and fully charge it in less than two hours. With plenty of battery power behind you, you'll be ready to go in no time. Thanks to the 80 cm long cable, you can place the dock almost anywhere in your workspace. The dock supports Dell Business Class features that enable easy management. With ITDMS, disruptions can be resolved remotely, systems managed, and dock ports secured.
Included: Dock, power supply, documentation.
Type | Docking stations |
Main connection | Thunderbolt |
Exact USB ports | Thunderbolt 3 (1x), USB-A 2.0 (2x), USB-A 3.0 (5x), USB-A 3.2 Gen 1 (3x) |
Video connections | DisplayPort (1x), HDMI (1x), Mini DisplayPort (1x), Thunderbolt 3 (1x), VGA (1x) |
Network connections | RJ45 (1x) |
Audio Connections | Jack 3.5mm (1x) |
Operating system compatibility | Linux, Windows |
Item number | 9246768 |
Manufacturer | Dell |
Category | Docking stations + USB hubs |
Manufacturer no. | Dell-TB18DC |
Release date | 22.7.2018 |
External links | |
May include power adapter | Yes |
Colour | Black |
Type | Docking stations |
Number of ports | 1 Ports |
Max. connected monitors | 2 x |
Equipment + functions | Notebook charging function, Notebook lockable |
Compatible notebook models | Precision Mobile Workstation 7530, 7730 |
Compatible brands | Dell |
Operating system compatibility | Linux, Windows |
Main connection | Thunderbolt |
USB ports | Thunderbolt 3, USB-A |
Exact USB ports | Thunderbolt 3 (1x), USB-A 2.0 (2x), USB-A 3.0 (5x), USB-A 3.2 Gen 1 (3x) |
Data ports | PS/2 (2x) |
Video connections | DisplayPort (1x), HDMI (1x), Mini DisplayPort (1x), Thunderbolt 3 (1x), VGA (1x) |
Network connections | RJ45 (1x) |
Audio Connections | Jack 3.5mm (1x) |
Max. port speed | 1000 Mbit/s |
Charging power | 210 W |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Dell fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x connection cable, 1 x Manual, 1 x power supply unit, 1 x Thunderbolt 3 / USB Type-C cable |
Length | 14.50 cm |
Width | 14.50 cm |
Height | 5.20 cm |
Weight | 720 g |
Length | 27.30 cm |
Width | 19.90 cm |
Height | 14.90 cm |
Weight | 2.34 kg |
