Datalogic MGLN 3410VSI DEFAULT

1D barcodes
Ratings
BrandMore from Datalogic
Delivered between Thu, 4.6. and Mon, 8.6.
More than 10 pieces in stock at third-party supplier
Supplied by
free shipping

Scanner functions2

Product details

Short Info: Datalogic Magellan 3410VSi - Barcode Scanner - Desktop Device - 2D Imager - Decoded

Product Description: Datalogic Magellan 3410VSi - Barcode Scanner Type Barcode Scanner - Desktop Device - Fixed - RS-232 - Decoded

Localization: Europe
Min. Barcode Width: 5 mil
Scan Field Width: 20.3 cm
Scan Element Type: 2D Imager - LED
Sensor Resolution: 1280 x 800
Connection Technology: Wired
Power Supply: AC 100-240 V (50 - 60 Hz)
Dimensions (Width x Depth x Height): 15.2 cm x 9.4 cm x 13.7 cm
Weight: 600 g

Detailed Information:
General
Type: Barcode Scanner - Desktop Device - Fixed
Localization: Europe
Barcode Interface Type: RS-232
Min. Barcode Width: 5 mil
Scan Field Width: 20.3 cm
Scan Element Type: 2D Imager - LED
Sensor Resolution: 1280 x 800
Scan Mode: Fixed Projection
Max. Operating Distance: 14 cm
Skew (Degrees): 75
Pitch (Degrees): 65
Print Contrast Signal (PCS): 25%
Decoding Function: QR Code, MaxiCode, Aztec Code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked TTL Decoding: Decoded
Connection Technology: Wired
Success Notification: Beep, LED Display

Features: Checkpoint Electronic Article Surveillance (EAS), Micro SD Card Slot, 25 kV ESD Protection (Air Discharge)

Expansion/Connectivity: Interfaces 1 x RS-232 - Type A

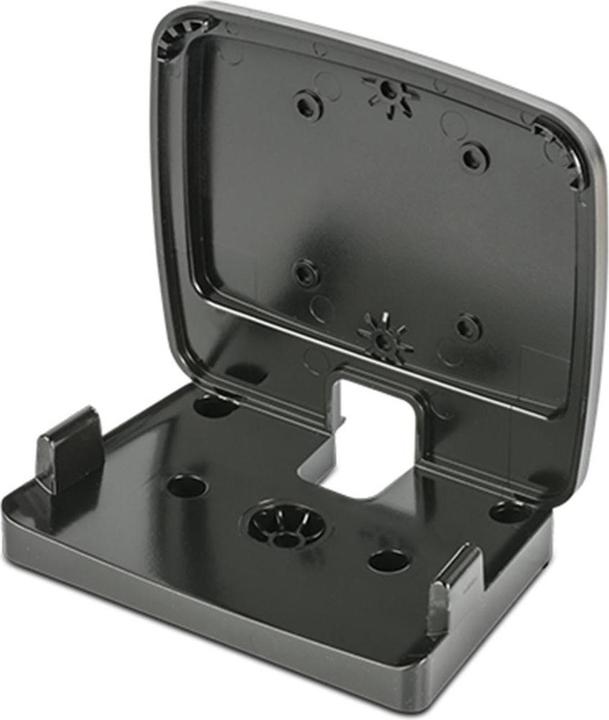

Various Accessories Included: Mounting Kit
Included Cables: 1 x Serial Cable - 4.57 m
Labeling: RoHS, IP52, China RoHS, IEC 62471, EU RoHS

Power Supply: Power Supply Unit Voltage: AC 100-240 V (50 - 60 Hz)

Dimensions and Weight:
Width: 15.2 cm
Depth: 9.4 cm
Height: 13.7 cm
Weight: 600 g

Environmental Conditions:
Min. Operating Temperature: 10 °C
Max. Operating Temperature: 40 °C
Permissible Operating Humidity: 5 - 95 % (non-condensing).

Key specifications

Connections
RS-232
Signal transmission
Cable

General information

Item number
22531232
Manufacturer
Datalogic
Category
Barcode scanners
Manufacturer No.
M3410-010210-07104
Release date
9.12.2021

Colour

Colour
Black
Exact colour description
Black

Barcode scanner properties

Scanning method
Imagers
Connections
RS-232
Signal transmission
Cable
Protection type (IP code)
IP52

Reading properties

Scanner functions
1D barcodes
Minimum print contrast
25%
Max- Scan distance
14 cm
Stack codes
Aztec Code, Data matrix, GS1 DataBar, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, PDF417, QR code
Read angle lengthwise max.
65°
Read angle cross max.
75°

Display

Image resolution
1280 x 800 pixels

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Scope of delivery
1 x serial cable - 4.57 m

Product dimensions

Length
152 mm
Width
152 mm
Height
137 mm

30-day right of return
24 Months Warranty (Bring-in)
