Inklay: a low-power DIY display perfect for any cyclist
5.11.2020
Translation: Patrik Stainbrook
I regularly commute to Zurich by bike. Checking on the weather first thing determines whether I'll be cycling or not. After all, I don't want to be rained on. Still, I'm not a fan of most dedicated apps and I need additional motivation. Which is exactly why I built my own display.
During the warmer months, I regularly ride my bike to work in Zurich. I usually decide whether this'll happen early in the morning right after getting up. After checking the weather app, I spontaneously decide depending on the weather, wind and temperature. But I'm not very inspired by most weather apps. They're also usually rather slow at delivering the data I really need.
Then an idea arises: I need the weather information that's relevant and there for me each morning. In addition, the weekly and annual kilometres I power through should motivate me to ride my bike as often as possible.
Fine, I'll do it myself
Okay, let's think about this. I bought a tablet and put together a small website as a dashboard. But I quickly realised that might not be the best idea. I don't need any more cables and power plugs in my bedroom. Just something simple. Something that's there, runs passively and that I don't have to worry about.
At some point in my research, I came across E-Ink displays. E-Ink is extremely energy-efficient and it dawns on me that I could realise my idea without cables or power plugs.
Over the course of several months, I looked for all the necessary components, ordered them and designed a product that was acceptable and that I could assemble myself.

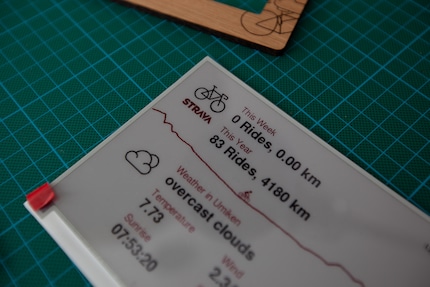

The finished display shows the weather at my location as well as the kilometres I’ve covered per week and per year – thank God for Strava. It's connected to the Internet via Wi-Fi and retrieves new data once an hour to conserve battery power. The display is embedded into a wooden frame and a specially designed 3D print case.
From concept to finished product
After some initial research, I discovered some exciting E-Ink projects on the Internet. I found projects for displaying weather data, personal calendars and to-do lists. It was initially difficult to get an overview of the hardware and technologies used. But I gradually understood all the possibilities and their limits.
Components
Code

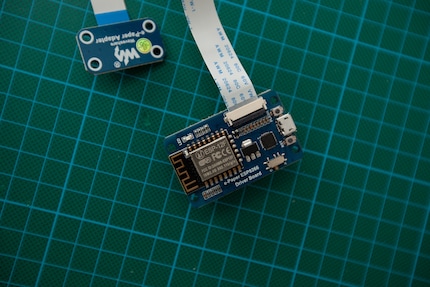

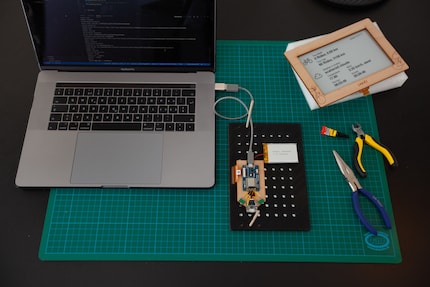

Yay, I finally received the components! I can now programme the ESP8266 controller directly from the Arduino IDE. But honestly, I'm not a big fan of doing it this way. Luckily, I found an extension for VS Code. After that, making «Hello World» pop up on the display was a piece of cake.
To save power, the controller can be put into a deep sleep. During this rest phase, the controller reduces all activity and only maintains the absolutely necessary processes to wake itself up after a defined time. I decide to update the display only once per hour.
Last but not least, the display needs a facelift – time to beautify E-Ink. I accessed the GxEPD2 library for fonts and images. And hey, it's curated by a Swiss programmer! Since I bought a newer Waveshare display, he kindly extended his library for me.
Frame and housing

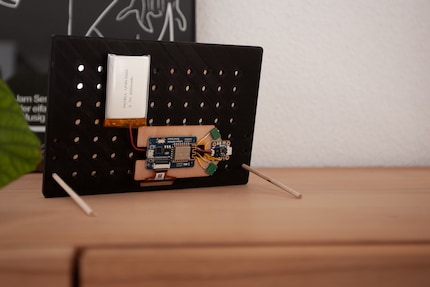

In addition, I installed two switches. The first to turn the display on and off. And the second one to interrupt deep sleep mode. I don't want the controller to go into a deep sleep after a few seconds during development or debugging.

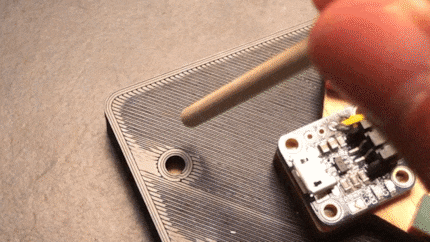

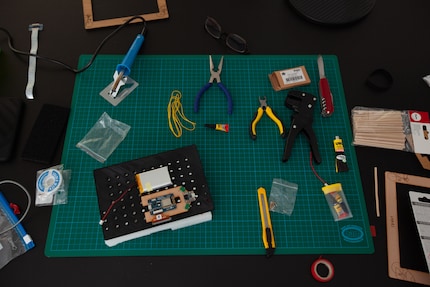

For assembly, I placed the display into the case and glued it to the wooden frame. I also glued the controller to the base. The USB charger and switches were also firmly soldered to the controller. Assembling a single display takes about one hour.
Some statistics about my project

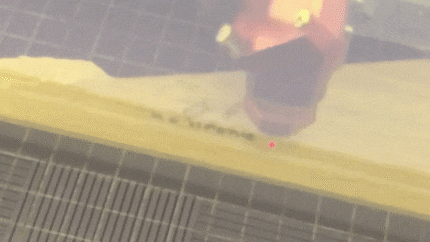

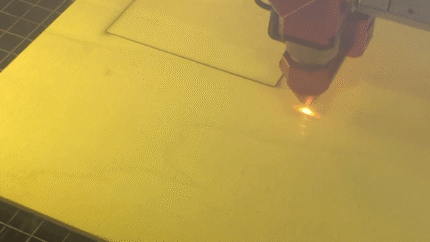

- A laser cut including engravings takes about 30 seconds – yes, it's incredibly fast.
- Compiling the code takes about 2 minutes.

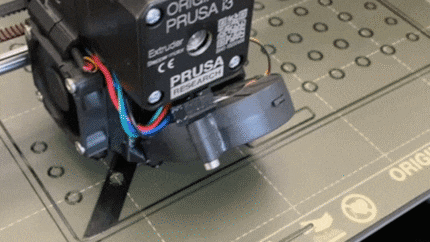

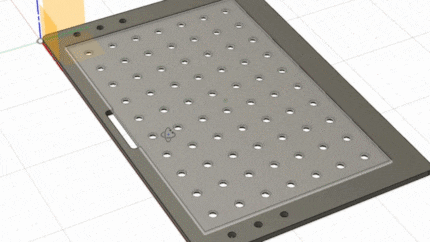

- A 3D model of the case takes about 4 hours.

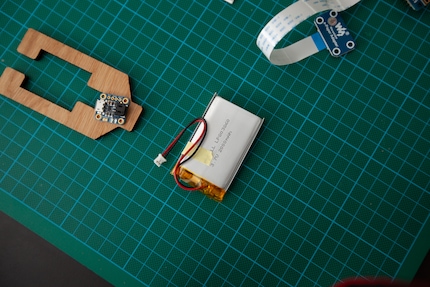

- Delivery of an Adafruit battery from the USA takes 2 days.
- Delivery of a Waveshare display from China takes 2 to 3 weeks.

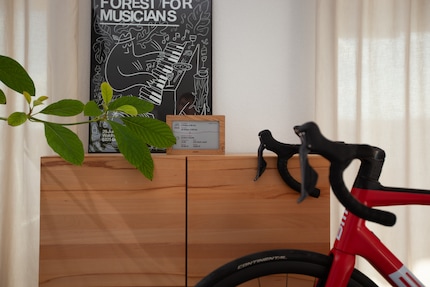

What have I learned?
In any case, I'm excited to push the project further. I already have some exciting ideas on the back burner. Like a companion app, more integrations, more sports, data from friends, exciting and entertaining statistics and much more.
The product is also suitable for other applications. A family calendar in the living room, for example, or a rain radar image on the coat rack. Do you have any brilliant ideas? Let me know in the comments!
I'm an independent designer, developer and founder of Vision 11 – a small design studio for digital experiences in Zurich. Vision 11 creates outstanding interactive and immersive experiences for national and international clients. www.vision11.ch
