Jumo 671483

Jumo Resistance Thermometer 00671483

Manufacturer: Jumo
Description: Resistance thermometer -30 to +60 °C, 0-10 V
Type: 00671483
Design: Clamp
Measuring range: -30 to 60 °C
Material: Plastic
Length of probe: 29 mm
Length of connection cable: 0 m

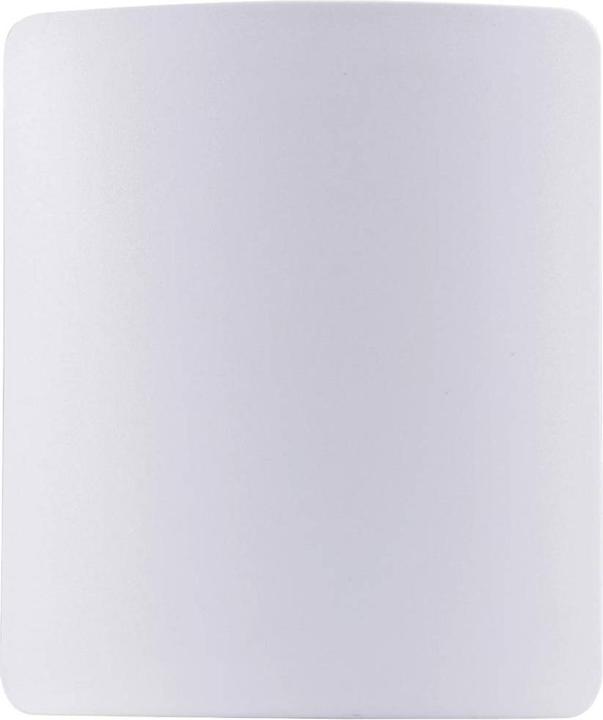

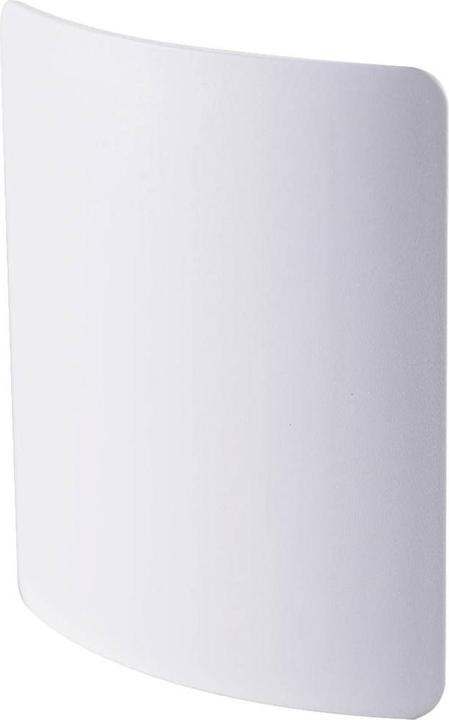

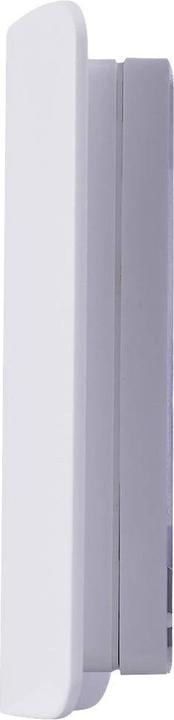

The screw-mounted resistance thermometer allows for temperature measurements in various areas of climate technology due to the temperature dependence of the electrical resistance of its built-in platinum sensor and the special housing design. The housing, with an IP65 protection rating, is made of PC plastic and features a separate protective tube made of stainless steel 1.4571. Therefore, the resistance thermometer is preferably used for fast-responding temperature measurements in indoor and outdoor environments.

The resistance thermometer complies with DIN EN 60751 (Class B) and is configured as 1 x Pt100 in a two-wire circuit. The built-in analog transmitter provides a standardized signal of 0 to 10 V for the measuring range of -30 to +60 °C.
