Top-rated products in the Electrical enclosures category
Here's a ranking of the top rated products in this category. To give you a quick overview, we've also added some key information about the products.

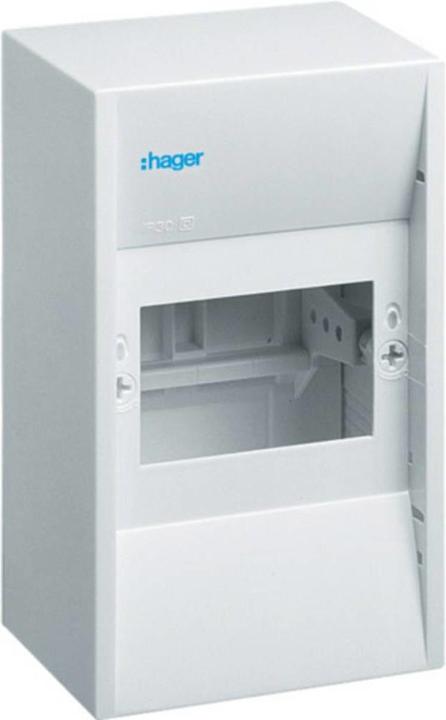

1. Hager Distribution board
Mini distribution box gamma module IP30 1xPE 1xN. Mini distribution box made of plastic according to the standard DIN 43880, designed with touch protection cover according to BGV A2 and for surface mounting with a device slot of 46 mm, can be sealed as standard. For the installation of REG devices with a maximum rated current of 63 at 230 AC and 45 at 400 AC. GD104N.

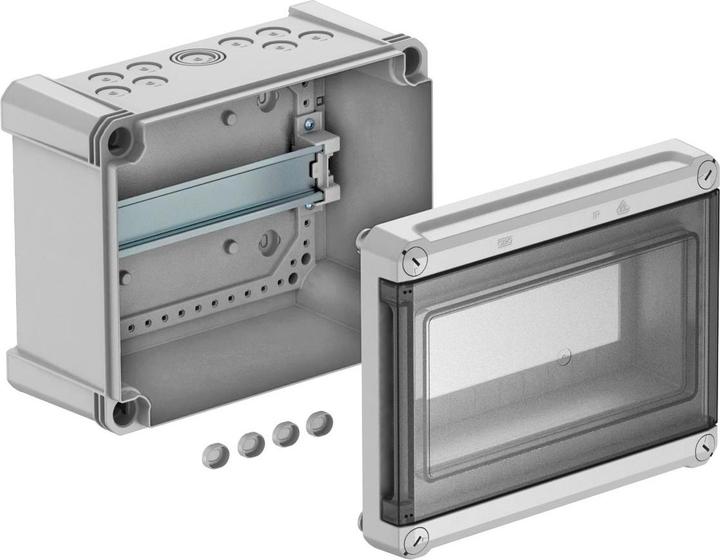

2. OBO Bettermann Small distribution board
The OBO small distribution board series ensures safe power distribution both indoors and outdoors. The surface-mounted small distribution boards meet all requirements according to IEC 439-3 and are available in four different sizes with three to twelve division units. There are three equipment variants: with screw terminals, with plug terminals, and without terminals. All sizes and equipment variants are available in two materials. All small distribution boards come with a pre-mounted 35 mm DIN rail. The small distribution boards with terminal strips also include an accessory set, which contains, among other things, a sheet of stickers. The self-adhesive pictograms eliminate the often tedious labeling of individual division units. Should labeling be necessary, corresponding stickers are also available on the sticker sheet. The high degree of protection (IP66) and the robust construction (IK07 at -25 °C) ensure safety even in challenging environmental conditions.

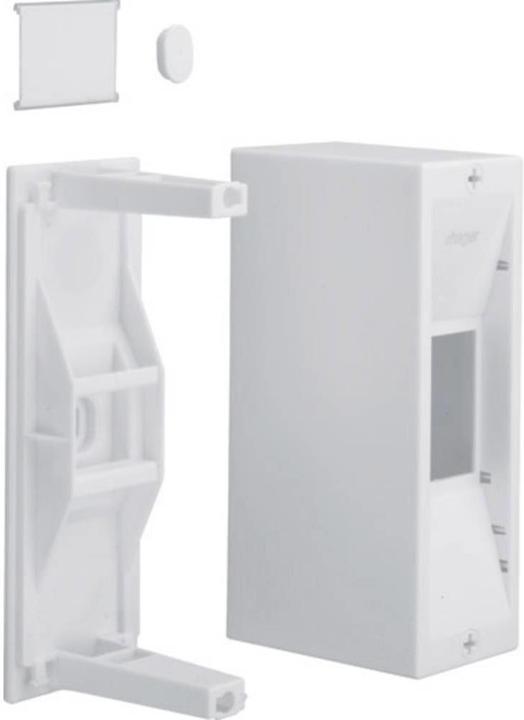

3. Hager Electrical distribution board
Mini distributor, gamma, 2 module, IP30
Mini distributor as smallest distributor made of plastic for installation of (No suggestions) according to dimensional standard DIN 43
880 as contact protection cover according to BGV A2 for devices up to 63 A, 400 V /50 Hz, protection class IP30. For
Surface mounting with 46 mm device slot, sealable as standard.

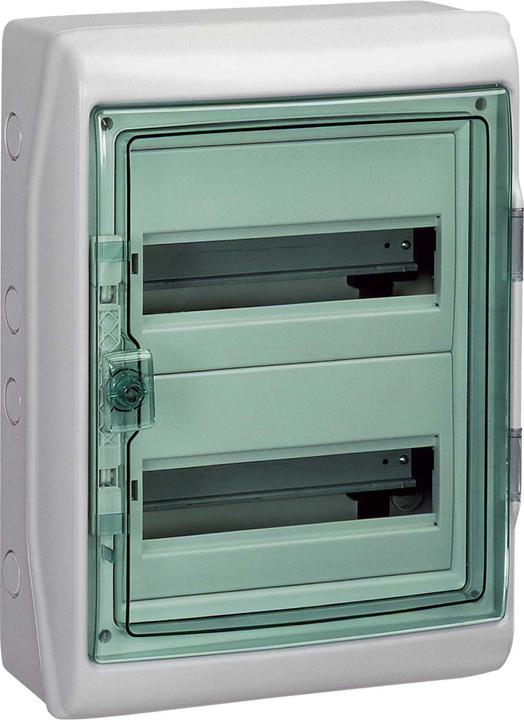

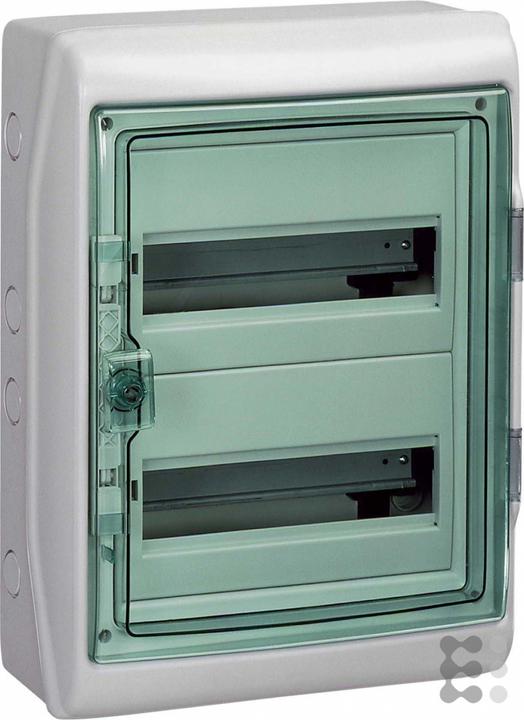

4. Schneider Electric Small distribution board Kaedra 2x12 TE IP65
Kaedra small distribution box, IP65. Dimensions 460 x 340 x 160 mm, TE 2 x 12. The shielding of the cables for the analog signals must be connected to the support kit for cable shielding. Protection class IP 65, protection against external mechanical stress IK 09. Glow wire test 650 °C. Housing color RAL 7035, hinged lid light green. Housing with PE/N terminals. Multiple housings can be combined horizontally and vertically using M32 mounting sockets. The depth of the DIN rail is adjustable, and the center distance between 2 DIN rails can be set to 125, 150, or 175 mm (factory preset to 150 mm).

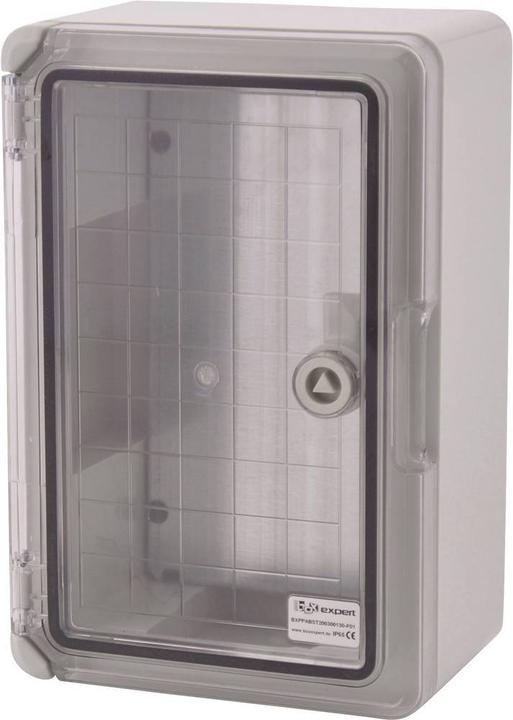

5. Boxexpert Fleet control cabinet plastic transp
The BXPPABST200300130-F01 BOXEXPERT of the Fleet series is a wall cabinet housing made of ABS plastic with 1-point closure and transparent viewing door, which is perfectly suitable for both indoor and outdoor use. It is easy to handle and very quick to install. Fleet series is a cost effective alternative to all steel sheet wall cabinets. PRODUCT DESCRIPTION Sheet steel control cabinets are often expensive to purchase and have a high weight. Both from the logistical effort and handling, this often leads to additional costs. In EMC-critical applications, sheet steel cabinets are usually indispensable and can be dispensed with in many cases. Switch cabinets of the Fleet series from BOXEXPERT offer a cost-effective alternative made of plastic. The wall-mounted enclosure is made of very lightweight acrylonitrile-butadiene-styrene copolymer (ABS for short), which results in a weight saving of about 50% for the same enclosure size. Despite the lower mass, the Fleet enclosure series proves to be a robust alternative and has an impact resistance of IK08. ABS plastic has a high resistance to alkali, oils and salts. In contrast to metal enclosures, the Fleet series has the advantage of being resistant to corrosive loads without the need for further coating of the enclosure surface. PUR SEALING Especially the use in outdoor applications requires an effective sealing of the electronic components against external influences. The plastic housings of the Fleet series have a foamed-in seal made of polyurethane (PU for short). The PU seal is low-wear and robust against weathering and aging. The polyurethane also proves resilient and resistant to frequent operation of the control cabinet door. In addition to the properties of the ABS plastic, the enclosure seal also ensures an enclosure protection rating of IP65.

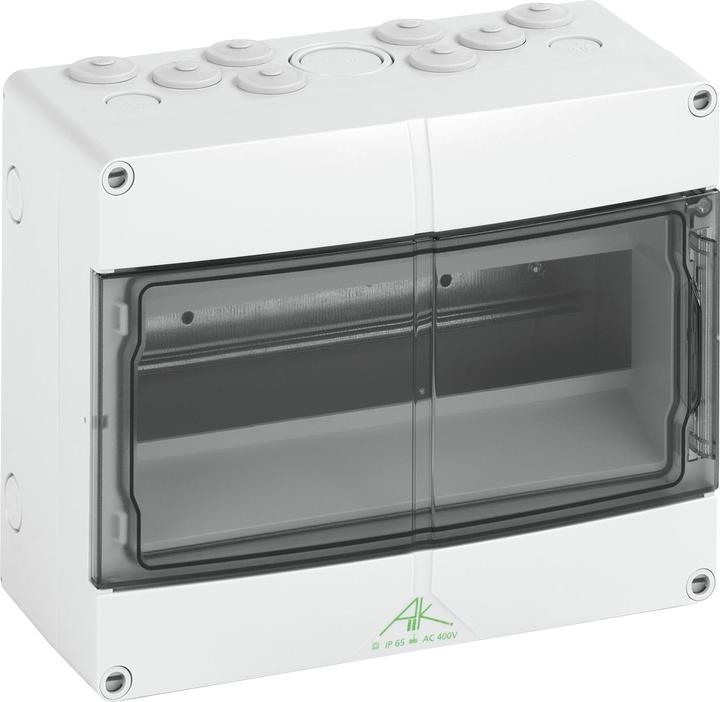

6. Spelsberg Surface-mounted Number of divisions = 12
The Spelsberg Kleinverteiler AK 12 is a compact and functional distribution box designed for wall mounting. With an IP65 protection rating, it offers high protection against dust and water, making it ideal for use in demanding environments. The distributor is equipped with 12 division units, allowing for flexible and secure installation of electrical components. The transparent individual doors provide easy accessibility and the option to seal or lock individual rows. The Kleinverteiler is made from high-quality polystyrene and includes several elastic entries as well as cover and labeling strips, ensuring user-friendly handling. The thoughtful design and the use of environmentally friendly materials make this distribution box a sustainable choice for electrical installations.
- IP65 protection rating for high resistance to environmental influences
- Sealable transparent individual doors for easy accessibility
- Pre-mounted sealing membranes for additional protection
- Environmentally friendly materials, free from heavy metals and halogens
- Versatile entry options for flexible installations.

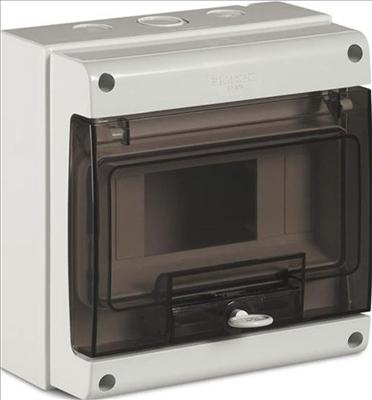

7. Scame Small distribution board AP IP66 8 modules
The AP IP66 small distribution board from Scame is a robust and reliable solution for electrical distribution in various applications. Made from impact-resistant plastic, this distribution board offers high resistance to mechanical impacts and UV radiation. With an IP66 protection rating, it is optimally protected against dust and water ingress, making it ideal for use in demanding environments. The small distribution board is designed for surface mounting and features an integrated DIN35 rail, allowing for easy installation and organization of electrical components. Its light gray color (RAL 7035) provides an appealing look and harmoniously blends into various environments.
- Impact-resistant plastic with IK07 rating
- UV-resistant for long-term outdoor use
- Includes DIN35 rail for easy mounting
- IP66 protection rating for optimal dust and water protection.

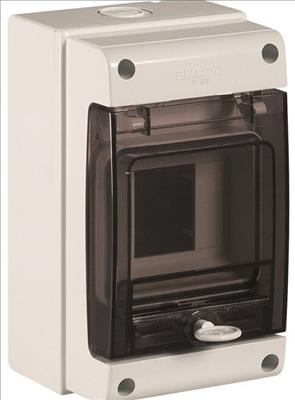

8. Scame Small distribution board AP IP66 4 modules
The AP IP66 small distribution board from Scame is a robust and reliable solution for electrical distribution in various applications. Made from impact-resistant plastic, this distribution board offers high resistance to mechanical impacts and UV radiation, making it ideal for use in demanding environments. With an IP66 protection rating, it ensures effective protection against dust and water ingress, enhancing the safety and longevity of the product. The small distribution board is designed for surface mounting and features an integrated DIN35 rail that allows for easy installation and adjustment of electrical components. The light gray color (RAL 7035) provides an appealing look and harmoniously blends into various environments.
- Impact-resistant plastic with IK07 certification for increased robustness
- UV-resistant for outdoor use
- Includes DIN35 rail for easy installation.

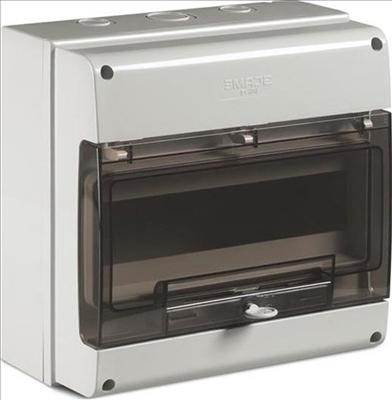

9. Scame Small distribution board AP IP66 12 modules
The AP IP66 small distribution board from Scame is a robust and reliable solution for electrical distribution in various applications. Made from impact-resistant plastic, it offers high resistance to mechanical impacts and UV radiation, making it ideal for use in demanding environments. With an IP66 protection rating, this distribution board ensures effective protection against the ingress of dust and water, thereby ensuring the safety and longevity of the electrical components. The board is designed for wall mounting and features a DIN35 rail that allows for easy installation and adjustment of electrical components. The light gray color (RAL 7035) provides an appealing look and harmoniously integrates into various environments.
- Impact-resistant plastic with IK07 rating for increased robustness
- UV-resistant for outdoor use
- IP66 protection rating for optimal protection against dust and water
- Includes DIN35 rail for easy installation and adjustment.

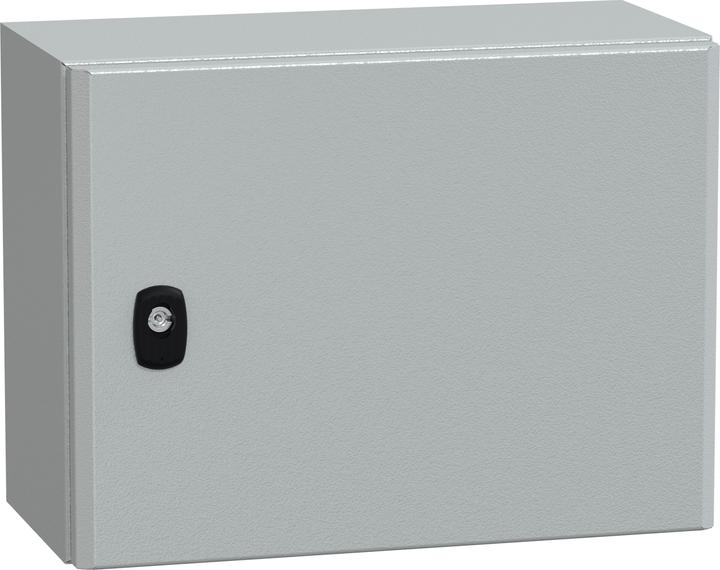

10. Schneider Electric Wall cabinet
Schneider Electric Wall Cabinet RAL 7035 NSYS3D3420P
Manufacturer: Schneider Electric
Description: Wall Cabinet RAL 7035
Type: NSYS3D3420P
Width: 400 mm
Height: 300 mm
Depth: 200 mm
Material: Steel
Material Quality: Other
Surface Finish: Powder-coated
Color: Gray
RAL Number: 7035
Free-standing: No
Floor-standing Wall Model: No
Suitable for Wall Mounting: Yes
Corner Model: No
Intermediate Installation: No
Couplable: No
With Mounting Plate: Yes
Mounting Plate Depth Adjustable: No
Suitable for Wall Installation: No
Pole Mounting: Yes
Number of Doors: 1
Number of Locks: 1
Suitable for Metric Installation: Yes
Suitable for Outdoor Installation: Yes
Sloped Roof: No
EMC Version: No
With Viewing Door: No
With Ventilation Door: No
With Rear Door: No
Impact Resistance: IK10
Protection Class (IP): IP66
Protection Class (NEMA): 4X
Max. Permissible Load of the Enclosure/Cabinet according to IEC 62208: 250 N
Max. Permissible Load of the Door(s) according to IEC 62208: 50 N
Max. Permissible Load of the Mounting Plate according to IEC 62208: 250 N
Schneider Electric Wall Cabinet RAL 7035 NSYS3D3420P: Additional Details
Spacial S3D wall enclosure made of steel with full door. Dimensions 300 x 400 x 250 mm. One-piece enclosure, including mounting plate. 3-point locking system with handle and 3 mm double-bit lock. Made of steel, epoxy-polyester powder coating. Protection class IP 66, IK10, color RAL 7035.
