Best Omron Industrial Automation products in the Wiring closet technology category

On this page you'll find a ranking of the best Omron Industrial Automation products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

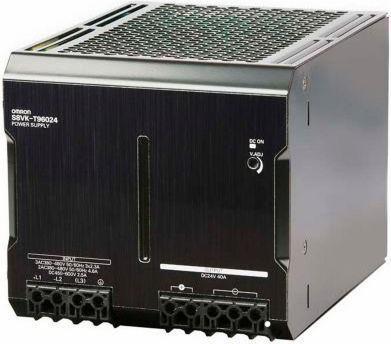

1. Omron Industrial Automation Din Rail PSU, 960W, 24 VDC, 40A output

AC or DC input voltage = ac
AC or DC output voltage = dc
Input voltage min. = 380V ac
Input voltage max. = 480V ac
Output voltage min. = 24V dc
Output voltage max = 24V dc
Output current = 40A
Rated power = 960W
Number of outputs = 1
Electrical phases = 2, 3
Type = Switch Mode
Range = S8VK
Dimensions = 180 x 125 x 135mm
Width = 125mm
Load regulation = 1.5%

120W to 960W S8VK - T Series. The S8VK-T series offers reliability in harsh environments and can be used in worldwide applications thanks to its simple operation. Wide input voltage range of 380-480 V ac Possible for 2-phase use DC input available (except 960 W) High efficiency Operating temperature range: -40 to 70 °C Power amplification function at 120% RoHS compliant Complies with EN61204-3.

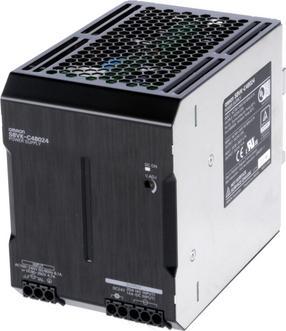

2. Omron Industrial Automation Single Phase PSU 24V 480W S8VK C Series

AC or DC input voltage = ac
AC or DC output voltage = dc
Input voltage min = 100V ac
Output voltage = 24V dc
Output voltage min. = 21.6V dc
Output voltage max = 28V dc
Output current = 20A
Rated power = 480W
Number of outputs = 1
Electrical phases = 1
Type = Switch Mode
Dimensions = 125 x 95 x 150mm
Width = 95mm
Depth = 150mm

60W to 480W, S8VK-C Series. The S8VK-C Lite family is a series of power supplies for cost sensitive applications requiring high quality and reliability. Power ratings from 60 W to 480 W Suitable for universal input, 100 to 240 V ac and 90 to 350 V dc Special DIN rail mounting bracket provides better vibration resistance and facilitates mounting Operating temperature range from -25 °C to +60 °C Complies with EN 61204-3, EN 55011 Class A.

3. Omron Industrial Automation DIN rail power supply, 120 W, 24VDC, 5A

AC or DC input voltage = ac
AC or DC output voltage = dc
Input voltage min. = 85V ac
Input voltage max. = 264V ac
Output voltage min. = 24V dc
Output voltage max = 24V dc
Output current = 5A
Rated power = 120W
Number of outputs = 1
width = 91.2mm
Operating time = 135000h

UL508 / UL1310 (60W only), UL/EN/IEC 60950-1 and EN 50178, SEMI F47-0706, EN/IEC 61558-2-16. S8VK-S series switching power supply. Omron's S8VK-S series of single-phase switching power supplies is the perfect solution for small control panels. With easy to wire push-in plus technology, wiring time can be significantly reduced by up to 60%. Simply push the wires in by hand and they are more secure than using a regular screw terminal block. The S-type unit has a rugged design and is coated to protect against harsh environments. Features and benefits. Operation possible in ambient temperature (-40 °C to 70 °C) DC input support (90 V dc to 350 V dc) Power amplification function at 120% Horizontal side-by-side mounting Vibration resistance up to 5 G and support of 300 V ac abnormal input voltage for 1 second PCB coating protects against dust, corrosive gas and moisture Certification for 3000 m altitude CE marking. Product application information. The S8VK-S DIN rail mount power supply is ideal for use in most environments. This power supply can be used in locations with poor quality power supply, high humidity and corrosive gases. With quick installation due to push-in plus technology and space saving size, these power supplies can be used in most industries.

4. Omron Industrial Automation DIN Rail Power Supply 10A

AC or DC input voltage = ac
AC or DC output voltage = dc
Input voltage min = 85V ac
Output voltage = 24V dc
Output voltage min. = 24V dc
Output voltage max = 24V dc
Output current = 10A
Rated power = 240W
Number of outputs = 1
Electrical phases = 1
Type = Switch Mode
Dimensions = 124 x 38 x 117.8mm
Width = 38mm
Series = S8VK-S

UL508 / UL1310 (60W only), UL/EN/IEC 60950-1 and EN 50178, SEMI F47-0706, EN/IEC 61558-2-16. S8VK-S series switch mode power supply. Omron's S8VK-S series of single-phase switching power supplies is the perfect solution for small control panels. With easy to wire push-in plus technology, wiring time can be significantly reduced by up to 60%. Simply push the wires in by hand and they are more secure than using a regular screw terminal block. The S-type unit has a rugged design and is coated to protect against harsh environments. Features and benefits. Operation possible in ambient temperature (-40 °C to 70 °C) DC input support (90 V dc to 350 V dc) Power amplification function at 120% Horizontal side-by-side mounting Vibration resistance up to 5 G and support of 300 V ac abnormal input voltage for 1 second PCB coating protects against dust, corrosive gas and moisture Certification for 3000 m altitude CE marking. Product application information. The S8VK-S DIN rail mount power supply is ideal for use in most environments. This power supply can be used in locations with poor quality power supply, high humidity and corrosive gases. With quick installation due to push-in plus technology and space saving size, these power supplies can be used in most industries.

5. Omron Industrial Automation Din Rail PSU, 480W, 24 VDC, 20A output

AC or DC input voltage = ac
AC or DC output voltage = dc
Input voltage min = 380V ac
Output voltage = 24V dc
Output voltage min. = 24V dc
Output voltage max = 24V dc
Output current = 20A
Rated power = 480W
Number of outputs = 1
Electrical phases = 2, 3
Type = Switch Mode
Range = S8VK
Dimensions = 150 x 125 x 95mm
Width = 125mm
Temperature min = -40°C

120W to 960W S8VK - T Series. The S8VK-T series offers reliability in harsh environments and can be used in worldwide applications thanks to its simple operation. Wide input voltage range of 380-480 V ac Possible for 2-phase use DC input available (except 960 W) High efficiency Operating temperature range: -40 to 70 °C Power amplification function at 120% RoHS compliant Complies with EN61204-3.

6. Omron Industrial Automation DIN Rail Power Supply 20A

AC or DC input voltage = ac
AC or DC output voltage = dc
Input voltage min = 85V ac
Output voltage = 24V dc
Output voltage min. = 24V dc
Output voltage max = 24V dc
Output current = 20A
Rated power = 480W
Number of outputs = 1
Electrical phases = 1
Type = Switch Mode
Height = 124mm
Width = 60mm
Weight = 1.2kg

UL508 / UL1310 (60W only), UL/EN/IEC 60950-1 and EN 50178, SEMI F47-0706, EN/IEC 61558-2-16. S8VK-S series switch mode power supply. Omron's S8VK-S series of single-phase switching power supplies is the perfect solution for small control panels. With easy to wire push-in plus technology, wiring time can be significantly reduced by up to 60%. Simply push the wires in by hand and they are more secure than using a regular screw terminal block. The S-type unit has a rugged design and is coated to protect against harsh environments. Features and benefits. Operation possible in ambient temperature (-40 °C to 70 °C) DC input support (90 V dc to 350 V dc) Power amplification function at 120% Horizontal side-by-side mounting Vibration resistance up to 5 G and support of 300 V ac abnormal input voltage for 1 second PCB coating protects against dust, corrosive gas and moisture Certification for 3000 m altitude CE marking. Product application information. The S8VK-S DIN rail mount power supply is ideal for use in most environments. This power supply can be used in locations with poor quality power supply, high humidity and corrosive gases. With quick installation due to push-in plus technology and space saving size, these power supplies can be used in most industries.

7. Omron Industrial Automation Single Phase PSU 24V 240W S8VK G Series

8. Omron Industrial Automation Single Phase PSU 24V 15W S8VK G Series

AC or DC input voltage = ac
AC or DC output voltage = dc
Input voltage min. = 100V ac
Input voltage max. = 240V ac
Output voltage min. = 24V dc
Output voltage max = 24V dc
Output current = 650mA
Rated power = 15W
Number of outputs = 1
Electrical phases = 1
Type = Switch Mode
Dimensions = 90 x 22.5 x 90mm
Width = 22.5mm
Series = S8VK-G

UL508/60950-1, EN50178, EN60950-1, EN61558-2-16, EMS: EN 61204-3, EMI: EN61204-3 Class B. RoHS Compliant. 15 W to 480 W, S8VK-G Series. The S8VK series is a quality, reliable and easy to install family of compact power supplies. This series of DIN-rail mounted power supplies is designed for space savings and cost reduction thanks to minimal wiring requirements. Features and Benefits. Rugged in harsh environments Easy and fast installation Universal input for worldwide applications: 100 to 240 V ac Power amplification function at 120% Operating temperature range: -25 to 60 °C. Power Ratings Available. 15 W to 480 W. Output Voltages Available. 5 V dc to 48 V dc. What is a DIN Rail Mounted Power Supply?. A DIN Rail is a standard type of rail that is used to mount the power supply into racks. DIN Rails are a support for equipment. DIN Rails are normally made from aluminum but if there is a chance that the power supply suffers any shock or vibration, use a steel DIN Rail. What is A Switch Mode Power Supply?. Switch mode power supplies are a general purpose power supply including a switching regulator converting AC mains power to a lower voltage DC. A Switch mode power supply is efficient limiting any wasted energy. What is Single Phase?. A single phase power supply is simply a power supply that provides alternating current electric power within systems where the voltages are different. A single phase system normally has one neutral and power wire and the current passes between the 2 wires. Safety and Storage. Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and mounting clip ensuring vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge. Storage temperature range is -40°C to 80°C with no condensation or icing. Storage humidity 0% to 95%.

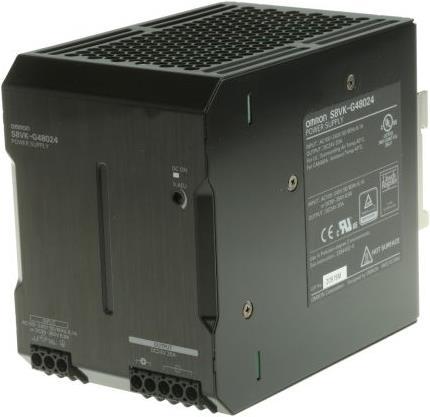

9. Omron Industrial Automation Single Phase PSU 24V 480W S8VK G Series

10. Omron Industrial Automation Single Phase PSU 24V 30W S8VK G Series

AC or DC input voltage = ac
AC or DC output voltage = dc
Input voltage min. = 100V ac
Input voltage max. = 240V ac
Output voltage min. = 24V dc
Output voltage max = 24V dc
Output current = 1.3A
Rated power = 30W
Number of outputs = 1
Electrical phases = 1
Type = Switch Mode
Dimensions = 90 x 32 x 90mm
Width = 32mm
Efficiency = 86%

UL508/60950-1, EN50178, EN60950-1, EN61558-2-16, EMS: EN 61204-3, EMI: EN61204-3 Class B. RoHS Compliant. 15 W to 480 W, S8VK-G Series. The S8VK series is a quality, reliable and easy to install family of compact power supplies. This series of DIN-rail mounted power supplies is designed for space savings and cost reduction thanks to minimal wiring requirements. Features and Benefits. Rugged in harsh environments Easy and fast installation Universal input for worldwide applications: 100 to 240 V ac Power amplification function at 120% Operating temperature range: -25 to 60 °C. Power Ratings Available. 15 W to 480 W. Output Voltages Available. 5 V dc to 48 V dc. What is a DIN Rail Mounted Power Supply?. A DIN Rail is a standard type of rail that is used to mount the power supply into racks. DIN Rails are a support for equipment. DIN Rails are normally made from aluminum but if there is a chance that the power supply suffers any shock or vibration, use a steel DIN Rail. What is A Switch Mode Power Supply?. Switch mode power supplies are a general purpose power supply including a switching regulator converting AC mains power to a lower voltage DC. A Switch mode power supply is efficient limiting any wasted energy. What is Single Phase?. A single phase power supply is simply a power supply that provides alternating current electric power within systems where the voltages are different. A single phase system normally has one neutral and power wire and the current passes between the 2 wires. Safety and Storage. Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and mounting clip ensuring vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge. Storage temperature range is -40°C to 80°C with no condensation or icing. Storage humidity 0% to 95%.
