Best Gira products in the Wiring closet technology category

On this page you'll find a ranking of the best Gira products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. Gira Bus coupler

Gira Bus Coupler 200900

Manufacturer: Gira
Designation: Bus Coupler 3 with external sensor
Type: 200900
KNX Bus System: yes
KNX Wireless Bus System: no

Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Mounting Type: Flush-mounted
Mounting Method: Claw/screw fastening

Application: KNX Bus Coupler 3 with external sensor
Features: The Bus Coupler 3 establishes the connection between the KNX system and a KNX application module. The combination of the Bus Coupler 3 and an application module forms a functional unit. In the ETS project, this unit is designed in the form of the application program of the application module. An additional temperature remote sensor can be connected to the Bus Coupler 3 with external sensor. This allows a room temperature controller to measure the temperature at an additional measuring point. Note: The remote sensor only works in combination with a Touch Sensor 3 Plus.
EAN: 4010337082194.

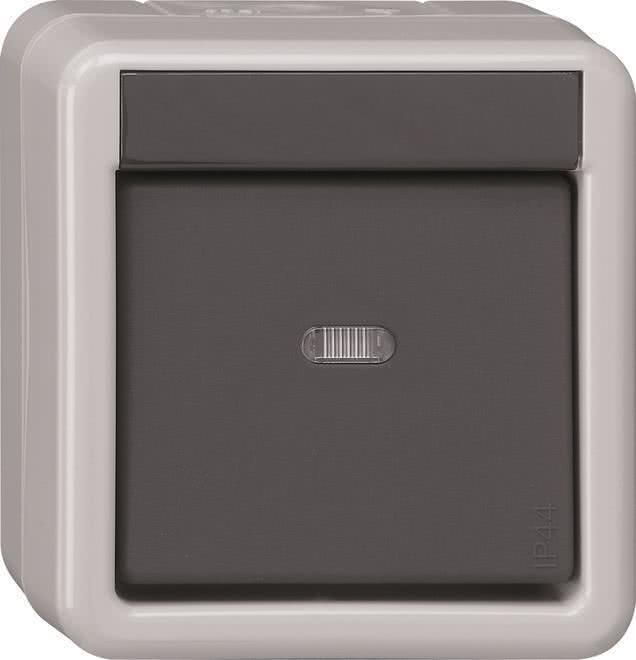

2. Gira KNX push button

Gira KNX Push Button BA Single 515130

Manufacturer: Gira
Description: KNX Push Button BA Single Gray Surface Mount 1 Point
Type: 515130
KNX Bus System: yes

KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Mounting Type: Surface Mount
Number of Sensor/Actuator Connections: 1
Mounting Method: Screw Mount

The KNX Push Button Bus Coupler WG Surface Mount Single with control window and 1-point operation in gray serves as the interface between the KNX system and the user.

Features:
- Button Function: Switching, Dimming, Blinds, 1 Byte Value Provider, and Scene Secondary Control.
- Switching Function: Command configurable on button press and release (On, Off, Toggle, No Reaction).
- Dimming Function: Command configurable on button press (Brighter-On, Darker-Off, Brighter or Darker-Toggle, Brighter-Toggle, Darker-Toggle, No Reaction).
- Blinds Function: Command configurable on button press (Up, Down, No Reaction).
- 1 Byte Value Provider Function: Configurable operation.
- Scene Secondary Control Function: Configurable operation (with or without memory function on long button press).

In 1-point operation (tilted rocker), the rocker can only be operated from one side (bottom). The push button bus coupler is water-resistant (IP44).

Status LED Functions: The red LED can optionally serve as orientation lighting, activation indication, or status display.
EAN: 4010337500063.

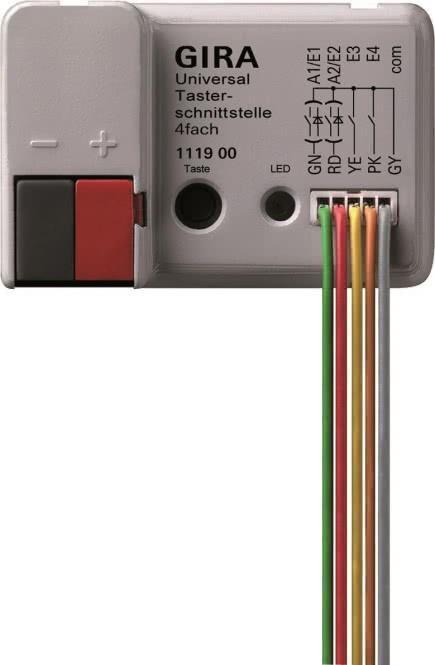

3. Gira Uni pushbutton interface

The Uni push-button interface from Gira is a versatile accessory for distribution cabinets, specifically designed for integration into KNX systems. With four flush-mounted binary inputs, this product allows for the connection of potential-free contacts behind a conventional switch or push-button. The switching actions of these contacts are converted into KNX telegrams, enabling flexible and individual control of the connected devices. The inputs can be assigned or locked to different functions independently, providing high adaptability to various requirements. Additionally, the inputs can be parameterized as outputs, opening up further functionalities. The Uni push-button interface is ideal for modern building automation and offers numerous possibilities for individual programming and customization.

- Independent parameterization of inputs for different functions
- Locking object for individual locking of specific inputs
- Adjustable telegram rate limitation for optimized communication
- Flexible operating concepts with adjustable commands for rising and falling edges
- Option for value adjustment via long button press for value transmitters.

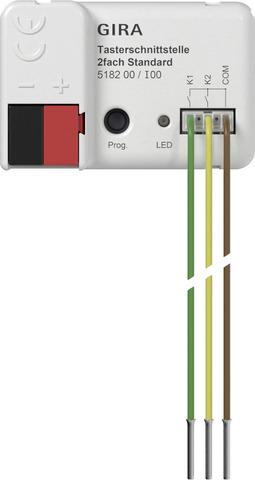

4. Gira Push-button interface 2f

The Gira 2-fold Standard push button interface is an essential accessory for distribution cabinets, specifically designed for integration into KNX systems. This interface enables reliable connection and control of KNX-compatible devices. It is intended for use in modern building management systems and offers a user-friendly solution for the installation and operation of switching and control functions. The push button interface is equipped with KNX Secure, providing additional security for communication within the network. Manufactured in Germany, this product meets high quality standards and is suitable for professional use.

- Compatible with Gira One and KNX systems
- Equipped with KNX Secure for enhanced security
- Suitable for 3-wire KNX cable sets.

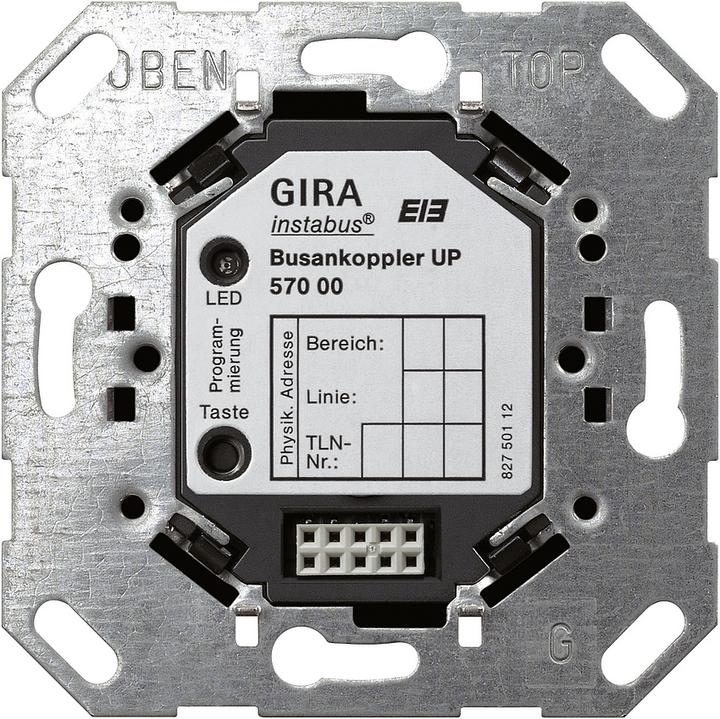

5. Gira Bus coupling

Gira Bus Coupler 057000

Manufacturer: Gira
Designation: Bus Coupler UP, Instabus
Type: 057000
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System:
no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Mounting Type: Flush-mounted
Number of Sensor/Actuator Connections: 1
Mounting Method: Clip/Screw Mounting

Application KNX Bus Coupler Features: The bus coupler serves as the interface between the bus and the KNX application module, such as info displays, RS232 data interfaces, and automatic switches. The bus coupler can receive, send, and evaluate telegrams. It contains the addresses, the system program, and also user-specific programs. Programming of the physical address is enabled by pressing the programming button. Status indication is provided by a red programming LED. Notes: Suitable only for device boxes with screw mounting.
EAN: 4010337570004.

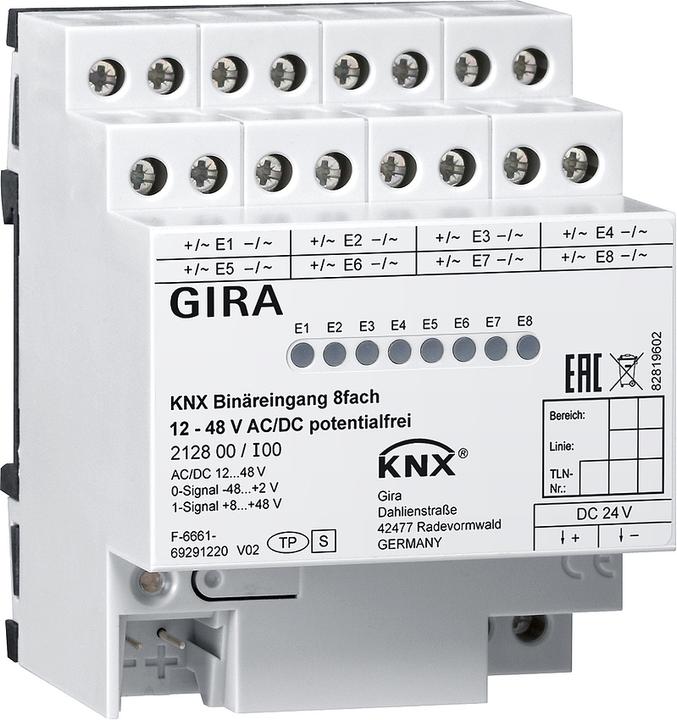

6. Gira Binary input

Gira Binary Input 8f. 212800

Manufacturer: Gira
Designation: Binary Input 8f. KNX 12-48 V AC/DC
Type: 212800

Bus System KNX: yes
Bus System KNX-RF: no

Bus System RF Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Bidirectional RF: no
Mounting Type: REG
Width in Division Units: 4
With Bus Coupling: yes
Bus Module Removable: no
With LED Display: yes
Number of Inputs: 8
Input Voltage: 12-48 V
Type of Input Voltage: AC/DC
External Query Voltage Required: no
Protection Class (IP): IP20

Additional Details:
The binary input has eight independent inputs to which electrical signals in the voltage range of 12 to 48 V can be connected.
Evaluation of direct current (DC) or alternating current (AC) signals.
The binary input provides a separate DC 24 V auxiliary voltage (SELV) for connecting potential-free contacts.
Status reporting in case of an error with the auxiliary voltage can be sent to the bus.
Connection of meters with S0 interface is possible (e.g., energy, gas, water meters).
Connection and branching terminal for KNX included in delivery.

EAN: 4010337018841.
