Best Gewiss products in the Wiring closet technology category

On this page you'll find a ranking of the best Gewiss products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

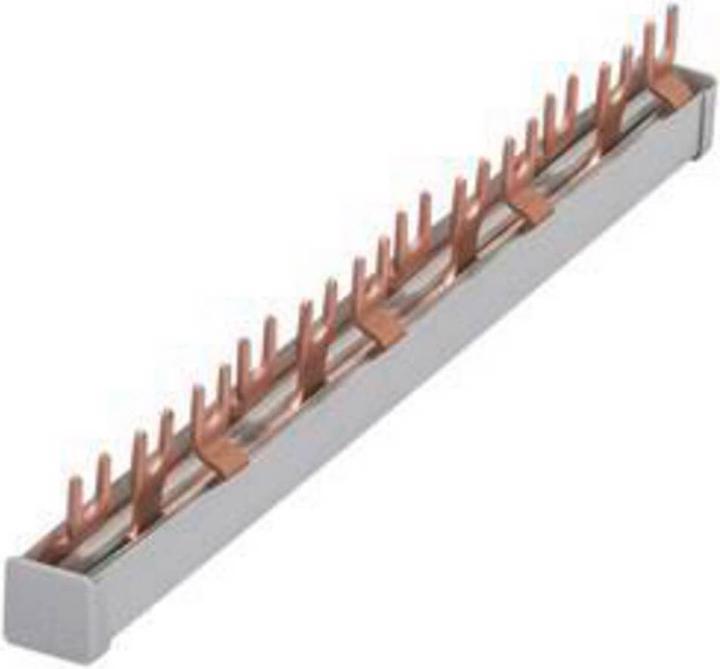

1. Gewiss FORKED COMB 1XSD 4P (4TH) + 8XMT 1P

Gewiss Busbar GW96968
Manufacturer: Gewiss
Designation: Busbar 1XSD 4P (4TE)
Type: GW96968
Number of Phases: 3
Number of Poles: 3
Suitable for Number of Devices: 8
Division Size: 17.5 mm
Length: 2100 mm
Cuttable: no
Width in Division Units: 12
Rated Continuous Current Iu: 63 A
Type of Electrical Connection: Fork
Insulated: yes
Rated Impulse Voltage: 4 kV
Conditional Rated Short-Circuit Current Iq: 25 kA
Max. Rated Operating Voltage Ue: 400 V
Suitable for Devices with N-Conductor: yes
Suitable for Devices with Auxiliary Switch: no
Color: gray

Gewiss Busbar GW96968: additional details
3-pole busbar for connecting 1 4-pole RCD, 4 division units with 8 1-pole circuit breakers or corresponding 3-pole circuit breakers. Including end caps. The RCD must be mounted on the left.
EAN: 8011564866119.

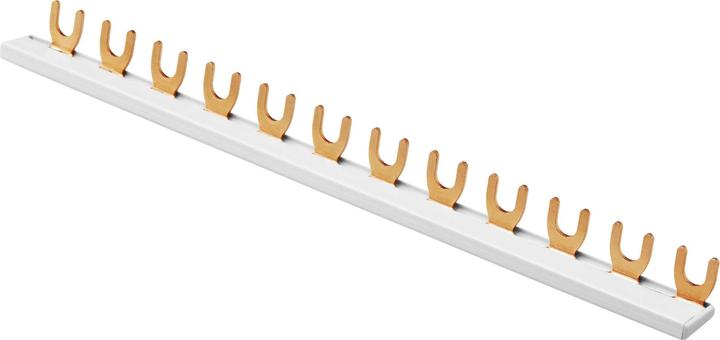

2. Gewiss Comb rail

Gewiss comb rail fork GW96992
Manufacturer: Gewiss
Designation: Comb rail fork 1P, 63A, 12HP
Type: GW96992
Number of phases: 1
Number of poles: 1
Suitable for number of devices: 12
Pitch: 17.8 mm
Length: 216 mm
Width in pitch units: 12
Rated uninterrupted current Iu: 63 A
Version of electrical connection: Fork
Insulated: Yes
Rated impulse voltage: 4 kV
Conditional rated short-circuit current Iq: 25 kA
Max. operating voltage Ue: 1P
Rated operational voltage Ue: 400 V
Rated short-time withstand current Icw: 50 kA
Suitable for devices with N-conductor: No
Suitable for devices with auxiliary switch: No
Colour: Grey

Further details: Comb rail for wiring of miniature circuit breakers etc. The comb rails can be shortened if required. Including end caps.

3. Gewiss GW40101, 143 mm, 100 mm, 210 mm

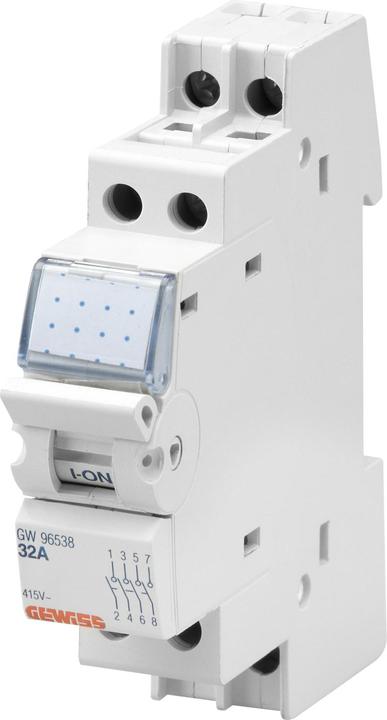

4. Gewiss Disconnector 1

Disconnector according to EN 60669-2-4 as a rail-mounted device. The switch lever can be sealed when switched off and on or can be locked with a lever lock (order accessory separately) for padlocking. Connection (max): flexible 6 mm², rigid 10 mm².

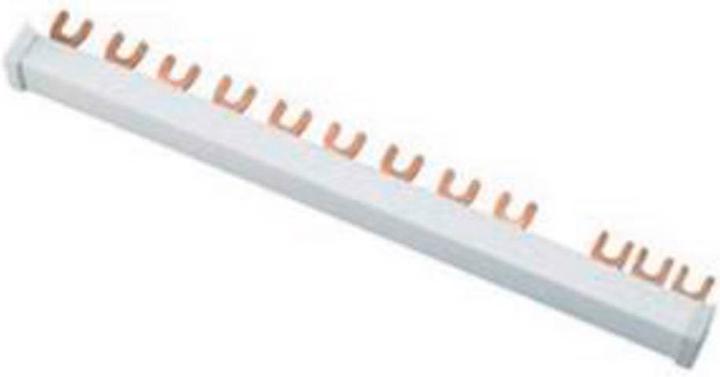

5. Gewiss Fork rail 3pol 12TE

Comb rail for wiring of miniature circuit breakers and similar devices. The comb rails can be shortened if required. End caps are included.

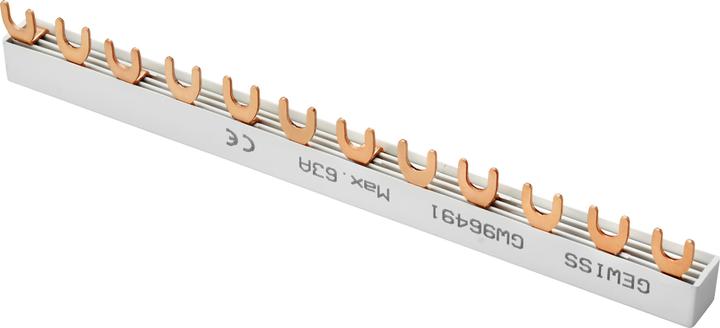

6. Gewiss GEWI GW96491 Busbar 6 X Mdc 2P (2M) Busbar 4pin L1+N L2+N L3+N

The GEWI GW96491 busbar is a high-quality busbar specifically designed for use in distribution cabinets. With a length of 2100 mm and a pole count of 4, it allows for the connection of up to 6 RCD/MCB switches. This fork busbar is rated for a nominal voltage of 400 V and a rated current of 63 A, making it a reliable solution for the distribution of electrical energy. The insulated design of the electrical connection ensures additional safety during operation. The GEWI GW96491 is not cuttable and comes with end caps, simplifying installation and ensuring a secure connection. This busbar is ideal for applications where multiple devices need to be connected to a neutral conductor.

- Suitable for connecting up to 6 RCD/MCB switches
- Insulated design of the electrical connection for increased safety
- Maximum rated operating voltage of 400 V
- Conditional rated short-circuit current of 25 kA
- Includes end caps for easy installation.

7. Gewiss Distribution board AP with inspection door IP65

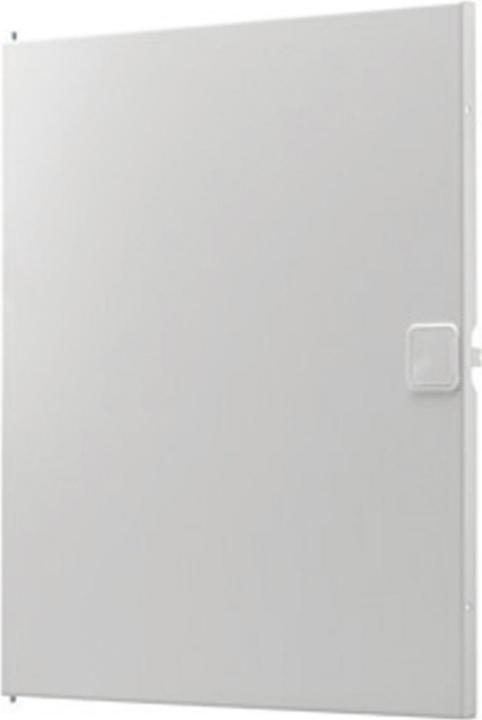

8. Gewiss Surface-mounted distributor

The Gewiss surface-mounted distributor GW43072S is a high-quality accessory specifically designed for hollow walls as well as for surface-mounted and flush-mounted small distributors. With a robust steel sheet door, this distributor not only provides reliable coverage but also an appealing appearance. The use of metal ensures durability and resilience, while the white color allows for harmonious integration into various environments. This product is ideal for installation in residential and commercial buildings where a safe and tidy distribution of electrical energy is required. The surface-mounted distributor is an essential element for anyone who values quality and functionality.

- Robust steel sheet door for enhanced security
- Suitable for hollow walls as well as surface-mounted and flush-mounted installations
- Durable and resilient metal material.

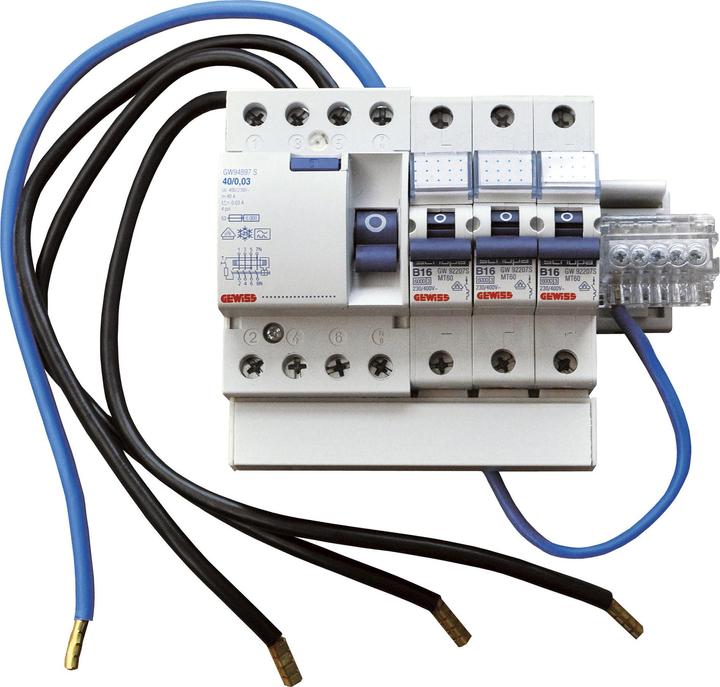

9. Gewiss GEWI GW96080 Counter outlet kit 3xautomatic 1pol. B16, 1xFi40/0,03 3pol.

Gewiss Meter Outlet Kit GW96080

Manufacturer: Gewiss
Description: Meter outlet kit for washing machine
Type: GW96080
Rated current: 40 A
Rated residual current: 30 mA
Number of protected poles: 3
Switched neutral conductor: no
Tripping characteristic: B
Switching capacity: 10 kA
Number of combinations RCD/circuit breakers: 1
Wiring on terminal block: no
Height: 96 mm
Width: 108 mm
Depth: 72 mm

The Gewiss Meter Outlet Kit GW96080 is a complete set for installation in the upper connection area of double-decker metering systems with 2-row distribution boards. It is designed for connecting a basement room, a washing machine, and a tumble dryer.

The set includes:
- one residual current device 40/0.03A 4-pole type A 3TE
- 3 circuit breakers B16 A 10 kA 1-pole
- 1 comb rail 3-pole 6TE
- 1 neutral terminal 5x 6 mm²
- 3 cable sets H07 V-K 10 mm² black 30 cm
- 1 cable set H07 V-K 10 mm² blue 30 cm
- 1 cable set H07 V-K 6 mm² blue 30 cm

EAN: 8011564765467.

10. Gewiss Pettine Per Sd 4p 3mod

Forked comb rail with 3 poles for the connection of 1 FI switch IDP with 4 poles, 3 division units with 9 miniature circuit breakers (1 pole) or corresponding miniature circuit breakers (3 poles). Includes end caps. The RCD must be mounted on the left side.

See all products
