Best Hager products in the Surge protection category
On this page you'll find a ranking of the best Hager products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Hager Surge arrester
Hager surge arrester SPA312
Manufacturer: Hager
Designation: Surge arrester
Type: SPA312
Mains form DC: No
Mains form IT: No
Mains form TN: No
Mains form TN-C: Yes
Mains form TN-C-S: No
Mains form TN-S: No
Mains form TT: No
Mains type other: No
Number of poles: 3
Lightning impulse current (10/350 µs): 12.5 kA
Maximum continuous voltage AC: 264 V
Rated voltage AC: 415 V
Protection level: 1.5 kV
Protection level L-N: 1.5 kV
Consequential current quenching capacity: 25 kA
Max. overcurrent protection device stub wiring (fuse): 160 A
Max. overcurrent protection device V-wiring: 160 A
Overcurrent protection device V-wiring (fuse): 80 A
Mounting type: Top-hat rail TH35
Size: 3 TE
Max. conductor cross-section rigid (one-piece): 35 mm²
Conductor cross-section rigid (solid/multistranded): 35 mm²
Max. conductor cross-section flexible (flexible): 25 mm²
Remote signalling: Yes
Signalling on unit: Optical
Test class: Type 1, 2, and 3
Integrated back-up fuse: No
Voltage-switching spark gap technology: Yes
Overcurrent-protected voltage tap: Yes
Protection class (IP): IP20
Hager surge arrester SPA312: further details
Surge arrester T1+T2+T3 3P 12.5kA FM TN-C.
2. Hager T1+T2+T3 4P 12.5kA SPA412FM TNS/TT
The Hager SPA412 surge arrester is a highly advanced device designed to protect electrical installations from surges. With a rated voltage of 415 volts and a nominal discharge current of 50 kA, this combined arrester offers a reliable solution for securing electrical systems. It is suitable for mounting on a DIN rail and meets the requirements of test class Type 3. The protection level of 1.5 volts ensures that connected devices are safeguarded against harmful voltage spikes. The Hager SPA412 is a Type 1 and Type 2 surge arrester, suitable for both TNS and TT systems. With its compact dimensions and protection class IP20, it is ideal for use in various applications where space and safety are crucial.
- Combined surge protection for Type 1 and Type 2
- Nominal discharge current of 50 kA for high safety
- Protection level of only 1.5 volts for optimal device protection
- Suitable for DIN rail mounting, space-saving and efficient.
3. Hager SPA800 Combination arrestor T1+T2 3P
The Hager SPA800 combined surge arrester T1+T2 3P is a highly developed surge protection device specifically designed for use in electrical installations. This combined arrester provides effective protection against surges caused by lightning strikes or other electrical disturbances. With a nominal voltage of 400 volts and a test class of type 1, it is suitable for various applications. The combined arrester is designed for mounting on a DIN rail, which facilitates installation and offers a space-saving solution. With a nominal discharge current of 50 kA and a lightning discharge current of 25 kA, the SPA800 ensures reliable performance and safety. The protection class IP20 ensures that the combined arrester can be used in dry indoor environments, while its compact design allows for easy integration into existing systems.
- Combined surge protection type 1 for effective protection
- Nominal discharge current of 50 kA for high load capacity
- Lightning discharge current of 25 kA for additional protection
- Mounting on DIN rail for easy installation
- Protection class IP20 for use in dry indoor environments.

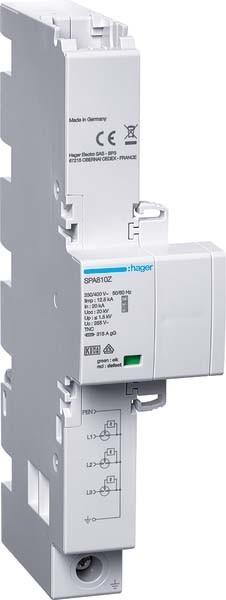

4. Hager SPA810Z Combination arrestor T1+T2+T3 3P
The Hager SPA810Z combination surge protector T1+T2+T3 3P is a highly developed device designed for effective surge protection in electrical installations. This combination surge protector integrates the protective functions of types 1, 2, and 3, providing comprehensive protection against transient overvoltages that can arise from lightning strikes or switching operations. With a rated voltage of 400 volts and a lightning impulse current of up to 12.5 kiloamperes, the combination surge protector ensures reliable safeguarding of electrical systems. The IP20 protection class ensures that the device is suitable for use in dry indoor environments. The Hager SPA810Z is designed for use in three-phase systems and offers a protection level of only 1.5 volts, making it an effective solution for the safety of electrical devices and systems. Manufactured in Germany, this combination surge protector meets high-quality standards and is a valuable addition to any electrical installation.
5. Hager SPB215
The Hager SPB215 is a Type 2 surge protector specifically designed to protect electrical systems from transient overvoltages. With a compact design suitable for mounting on a DIN rail, this device offers a reliable solution for safeguarding electrical systems in residential and commercial buildings. The SPB215 can handle nominal surge currents of up to 40 kA, ensuring a high level of protection. The IP20 protection rating makes it suitable for use in dry indoor environments. With a nominal voltage of 240 V and a protection level of 1.35 V, the Hager SPB215 is an effective choice for anyone looking to protect their electrical installations from surges.
- Type 2 surge protection for reliable safeguarding
- DIN rail mounting for easy installation
- Nominal surge current of 40 kA for high durability
- IP20 protection rating for use in dry indoor environments.

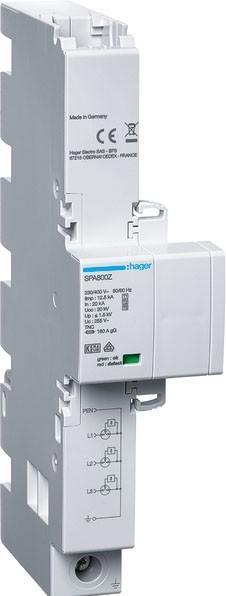

6. Hager Combination arrestor SPA800Z
Hager combi arrester SPA800Z
Manufacturer: Hager
Designation: Combination arrester 3P T1+T2+T3
Type: SPA800Z
Mains form DC: No
Mains form IT: No
Mains form TN: No
Mains form TN-C: Yes
Mains form TN-C-S: No
Mains form TN-S: No
Mains form TT: No
Mains form other: No
Number of poles: 3
Lightning impulse current (10/350 µs): 7.5 kA
Maximum continuous voltage AC: 255 V
Rated voltage AC: 400 V
Max. PV voltage: 0 V
Protection level: 1.5 kV
Protection level L-N: 1.5 kV
Consecutive current extinguishing capacity: 25 kA
Mounting type: Busbar
Size: Other
Max. conductor cross-section rigid (single): No
Conductor cross-section rigid (solid/multi-stranded): 50 mm²
Max. conductor cross-section flexible (fine-stranded): 35 mm²
Remote signalling: No
Signalling on the device: Optical
Test class: Type 1, 2, and 3
Integrated back-up fuse: No
Protection class (IP): IP20
Hager combined lightning current and surge arrester SPA800Z: further details
Combined lightning current and surge arrester T1+T2+T3 3P Iimp 12.5 kA TNC. Combination arrester for use in the pre-metering area according to VDE-AR-N 4100. Type 1 + type 2 arrester according to DIN EN 61643-11. Resistive current-free, encapsulated spark gap technology. Can be mounted directly on 40 mm busbar system. Compatible with infeed adapter and busbar box for voltage tapping for RfZ and APZ. Optional remote signalling contact can be retrofitted.
7. Hager Combination arrestor T1+T2+T3 4P SPA701Z Iimp 7.5kA TT/TNS
Hager combination arrestor SPA701Z
Manufacturer: Hager
Designation: Combination arrestor 4P T1+T2+T3
Type: SPA701Z
Mains form DC: No
Mains form IT: No
Mains form TN: No
Mains form TN-C: No
Mains form TN-C-S: No
Mains form TN-S: Yes
Mains form TT: Yes
Mains form other: No
Number of poles: 4
Lightning impulse current (10/350 µs): 7.5 kA
Maximum continuous voltage AC: 255 V
Nominal voltage AC: 400 V
Max. PV voltage: 0 V
Protection level: 1.5 kV
Protection level L-N: 1.5 kV
Protection level L-PE: 1.5 kV
Protection level N-PE: 1.5 kV
Consecutive current extinguishing capacity: 25 kA
Mounting type: Busbar
Size: Other
Max. conductor cross-section, rigid (one-pole): 1.5 kV
Conductor cross-section rigid (solid/multi-stranded): 50 mm²
Max. conductor cross-section flexible (fine-stranded): 35 mm²
Remote signalling: No
Signalling on the device: Optical
Test class: Type 1, 2, and 3
Integrated back-up fuse: No
Protection class (IP): IP20
Hager combined lightning current and surge arrester SPA701Z: Further details
Combined lightning current and surge arrester T1+T2+T3 4P Iimp 7.5 kA TT/TNS. Combination arrester for use in the pre-metering area according to VDE-AR-N 4100. Type 1 + type 2 arrester according to DIN EN 61643-11. Resistive current-free, encapsulated spark gap technology. Can be mounted directly on a 40 mm busbar system. Compatible with infeed adapter and busbar box for voltage tapping for RfZ and APZ. Optional remote signalling contact can be retrofitted.
8. Hager Combination arrestor SPA180N
The Hager SPA180N combination surge arrester is a highly advanced device designed for surge protection in electrical installations. With its Type 1 and Type 2 classification, this combination arrester offers effective protection against lightning strikes and surges caused by external and internal disturbances. It is suitable for mounting on a DIN rail and features a compact design that allows for easy integration into existing systems. The combination arrester is manufactured in Germany and meets high quality standards. With a nominal discharge current of 100 kA and a protection level of only 1.5 V, it provides reliable protection for sensitive electronic devices and systems. The IP20 protection rating ensures that the device is suitable for use in dry indoor environments.
- Combined surge protection Type 1+2
- Lightning discharge current of 100 kA
- Nominal voltage of 240 V
- Protection level of 1.5 V
- Mounting on DIN rail.
9. Hager Small volta APV 5x12PLE VA60BV2 IP30 wired and wired 3 RCD circuits Overvoltage protection
The Hager Kleinv.volta APV 5x12PLE VA60BV2 is a high-quality surge protector specifically designed for use in electrical installations. With its robust construction and IP30 protection rating, it provides reliable protection against surges caused by lightning strikes or other electrical disturbances. This device is suitable for installation in various applications and ensures a safe and efficient power supply. The use of five conductors allows for flexible integration into existing systems, while the compact design ensures easy installation and handling. The Hager VA60BV2 is an essential component for anyone who values safety and durability in their electrical installations.
- IP30 protection rating for reliable protection against dust and contact
- Five conductors for flexible integration into electrical systems
- Made in Germany to high quality standards.
Surge protection
CHF769.–
Hager Small volta APV 5x12PLE VA60BV2 IP30 wired and wired 3 RCD circuits Overvoltage protection
10. Hager SPK602Surge arrester DSL ADSL ADSL2+ ISDN
The Hager SPK602 surge arrester is a reliable device specifically designed to protect DSL, ADSL, and ISDN applications. With its robust construction and mounting on a DIN rail, it is ideal for use in various electrical installations. The surge arrester provides effective protection against surges that can be caused by lightning strikes or other electrical disturbances. With a nominal discharge current of 10 kA and a protection level of 300 V, the SPK602 ensures high safety for your electrical devices. Its compact design allows for easy integration into existing systems, while the IP20 protection rating makes it suitable for use in dry indoor environments. Therefore, the Hager SPK602 is an essential component for anyone who values the safety of their electrical infrastructure.
- Surge protection type: Surge arrester
- Nominal discharge current of 10 kA
- Protection level of 300 V
- Mounting type: DIN rail.
