Best Gesipa products in the Staple + Nail guns category
On this page you'll find a ranking of the best Gesipa products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Gesipa Blind rivet setting tool TAURUS® 2 Operating pressure 5 - 7 bar
For processing blind rivets up to 5 mm in diameter of all materials and of aluminum/steel up to 6 mm in diameter, with a maximum mandrel diameter of 3.2 mm. It features a removable mandrel collecting container with an integrated protective device against mandrels flying out. Holders for interchangeable mouthpieces are integrated into the base of the tool.
Further technical features include:
- Hose connection diameter: 1/4 inch
- Design: pneumatic/hydraulic
- Total length: approximately 292 mm
Scope of delivery: 4 mouthpieces (17/24, 17/27, 17/29, 17/32), 1 assembly spanner each (SW 12/14, 14/17), 1 bottle of hydraulic oil (100 ml), 1 oil refill container, and operating instructions with spare parts list.

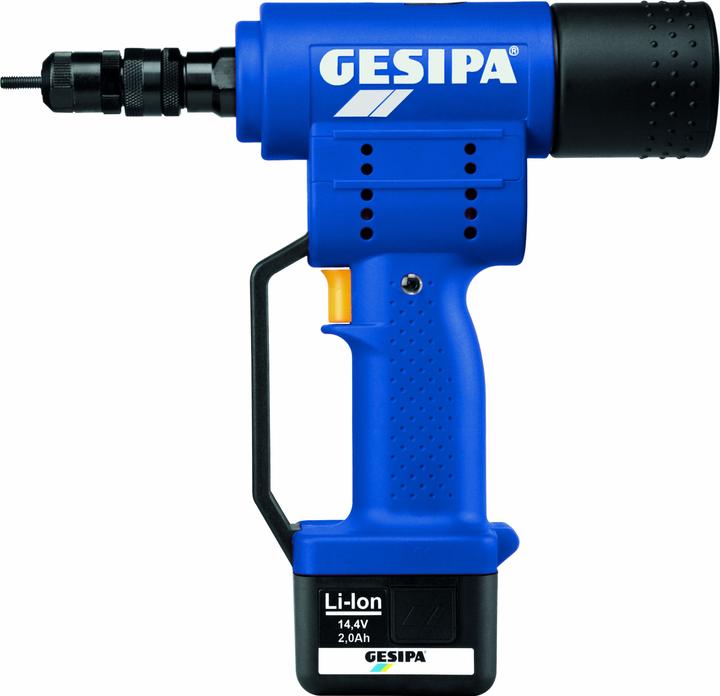

2. Gesipa Fire Bird Blind Rivet Nut Setter with Charger + Case
Fire Bird with charger and case nut set 14.4 V/1.3 Ah.
This cordless tool is designed for flexible use in assembly and industrial applications, offering a large working range from M3 to M8 in steel, M6 in stainless steel, and M10 in aluminium. It provides high output per battery charge and features low-loss power transmission through a recirculating ball drive with high efficiency. The tool allows for easy and safe unscrewing of the blind rivet nut, with a constant setting speed and automatic switching from setting to unscrewing. It also includes a drill-on function for the blind rivet nut with reduced force and automatic switch-off. The triggering of the setting process is functionally separated from the drill-on process, and the electronic control monitors the set setting stroke. Additionally, it offers drill-off of the mandrel with high torque, a quick-change system for mandrels, and simple stroke settings without tools.
Work area:
M3 to M8 in steel, M6 in stainless steel, and M10 in aluminium.
Technical data:
Weight: 2.3 kg with battery
Drive: Direct current motor 12 V
Setting force: 13,000 N
Battery voltage and ampere: 14.4 V / 1.3 Ah
Loading time:.

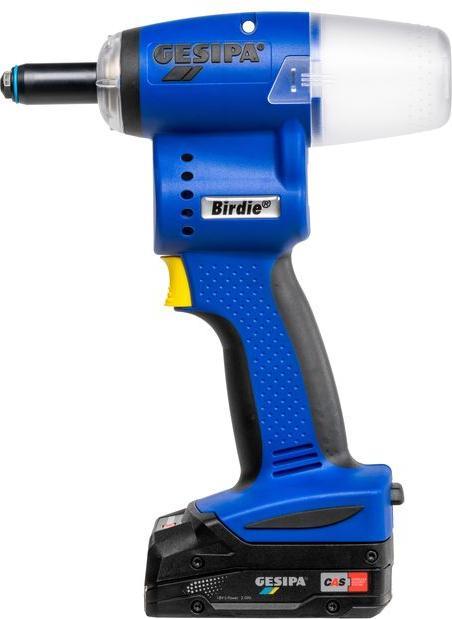

3. Gesipa Birdie L-Boxx CAS, 2 Battery 18V 2Ah
The new blind rivet setting tool from GESIPA is incredibly lightweight at just 900 g (without battery), allowing for long periods of fatigue-free work. The balanced center of gravity and comfortable grip further support the user. Additionally, the tool covers a large working range: it effortlessly processes blind rivets with a setting force of 10 kN and a stroke of 25 mm, accommodating diameters of up to 5 mm across all materials.

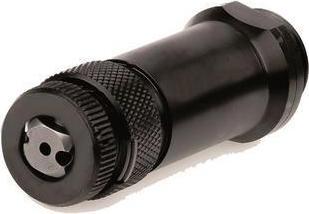

4. Gesipa Universal mouthpiece
Universal mouthpiece model AccuBird - Application: for electro-mechanical blind riveter model AccuBird.
5. Gesipa PH 2 A blind rivet gun
Blind rivet gun PH 2 A.
This tool features a hydraulic head made of aluminum with a wear-resistant cylinder surface. It includes a pneumatic cylinder, die-cast aluminum body, and a piston made of hardened steel with a hard chrome-plated finish for smooth running and durability. The compact seals are wear-resistant with a high wiping effect, ensuring a long service life. The quick bleed valve allows for rapid return and high working sequence, while the low-noise pneumatic switching enhances user experience. The hydraulic head is adjustable by 360 degrees.
Working range: 3-5 mm diameter for all materials.
Pneumatic/hydraulic specifications:
- Operating pressure: 4-6 bar (atü)
- Hose connection: 6 mm diameter (1/4 inch)
- Air consumption: 1.2-1.8 liters per riveting process (0.3 liters compressed air)
- Setting force: 8850 N (900 kp)
- Working stroke: 15 mm
Equipment includes:
- Mouthpieces: 16/32 (no. 1948793), 16/24 (no. 1948769), 16/27 (no. 1948777), 16/29 (no. 1948785), 16/36 (no. 1948801) included.
Compatible with rivets:
- 2.4 mm (10/18) made of aluminum
- 3.2 mm (10/18) made of Cap-Alu, Cu
- 3 mm and 3.2 mm (16/23) made of aluminum, Cu, steel, stainless steel, Stinox
- 4 mm (16/23, 16/27, 16/29) made of aluminum, Cu, steel, Cap-Alu, stainless steel.

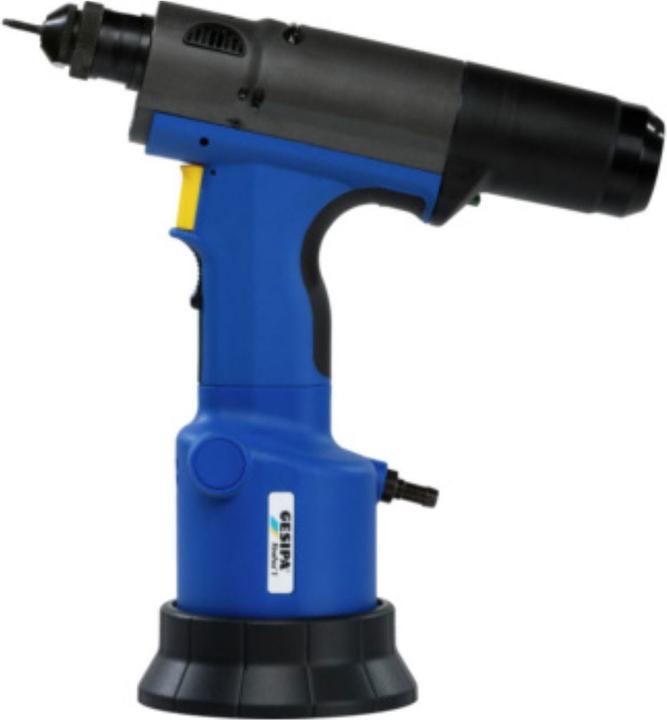

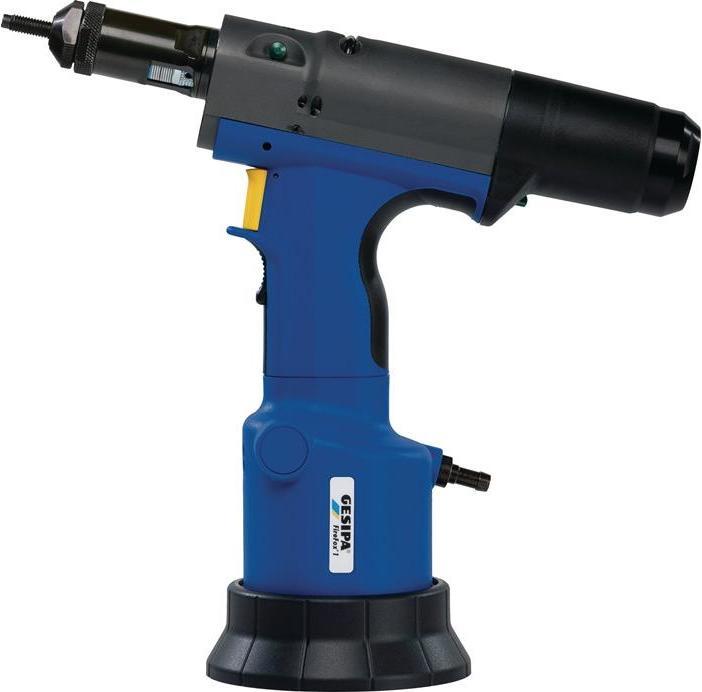

6. Gesipa FireFox 1 pneumatic-hydraulic rivet nut setter
Pneumatic-hydraulic blind rivet setting tool model FireFox 1 - Design: setting force adjustableErgonomic design ensures fatigue-free working - Advantage: with setting force and stroke adjustment for optimum and process-reliable anchoring of the rivet nutas soon as the blind rivet nut is placed with light pressure. Extremely fast setting process followed by automatic unthreading process High working comfort and fatigue-free working due to balanced centre of gravity and hand-friendly handle - Delivery: With mandrel and nose piece M 3, M 4, M 5 and M 6.Further replacement mandrels and nose pieces available from stock - Please enquire.
7. Gesipa Blind rivet setting tool TAURUS® 3 Operating pressure 5 - 7 bar
For processing blind rivets up to 6.4 mm in diameter of all materials and made of aluminium/steel up to 6 mm in diameter, with a maximum mandrel diameter of 3.2 mm. It features a removable mandrel collecting container with an integrated protective device against mandrels flying out. Holders for interchangeable mouthpieces are integrated into the base of the tool.
Further technical features include:
- Hose connection diameter: 1/4 inch
- Design: pneumatic/hydraulic
- Total length: approximately 312 mm
Scope of delivery: 3 mouthpieces (17/36, 17/40, 17/45), 1 assembly spanner each (SW 12/14, 14/17), 1 bottle of hydraulic oil (100 ml), 1 oil refill container, and operating instructions with spare parts list.
8. Gesipa Firefox 2 Blind Rivet Nut Set with Mandrels and Mouthpieces for M4-M8mm
The FireFox 2 blind rivet nut setting tool from GESIPA is a pneumatic-hydraulic device designed for processing blind rivet nuts from M4 to M12 made of aluminum and steel, as well as up to M10 in stainless steel. It features an automatic drilling function that simplifies handling and increases efficiency. With an adjustable stroke of up to 10 mm and a maximum setting force of 22 kN at an operating pressure of 6 bar, this setting tool is versatile and suitable for various applications. The hose connection has a diameter of 1/4", allowing for easy integration into existing compressed air systems. The device comes with a comprehensive set of accessories that includes everything necessary for immediate use.
- Adjustable setting force up to 22 kN at 6 bar
- Automatic drilling function for easy handling
- Suitable for blind rivet nuts from M4 to M12 made of aluminum and steel
- Delivery includes several thread mandrels and nozzles
- Includes a refill bottle with hydraulic oil and operating instructions.
