Best Hager products in the Residual-current device category
On this page you'll find a ranking of the best Hager products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Hager FI/LS switch
Residual current circuit breaker according to DIN EN 61009-1 (VDE 0664-20) with QuickConnect terminal, up to 20 A at the feeder and up to 63 A at the feeder, blue test button and residual current indication. Simple individual removal from the phase busbar system. Suitable for retrofitting of additional equipment. Labeling option directly on the device.
2. Hager CDA440D
Hager RCD CDA440D
Manufacturer: Hager
Designation: 4-pole RCD 40A/30mA, 6kA
Type: CDA440D
Number of poles: 4
Rated voltage: 400 V
Rated current: 40 A
Rated residual current: 0.03 A
Rated insulation voltage Ui: 500 V
Rated impulse voltage withstand Uimp: 4 kV
Power loss: 6.5 W
Mounting type: DIN rail
Residual current type: A
Selective type: no
Time-delayed type: no
Short-circuit strength (Icw): 6 kA
Surge current strength: 0.25 kA
Voltage type: AC
With locking device: yes
Frequency: 50 Hz
Additional devices possible: yes
Protection class (IP): IP20
Width in division units: 4
Installation depth: 70 mm
Ambient temperature during operation: -25..40 °C
Degree of pollution: 2
Connectable conductor cross-section multi-stranded: 1..16 mm²
Connectable conductor cross-section single-stranded: 1..25 mm²
RAL number (similar): 7005
Explosion-proof: no
Hager RCD CDA440D: additional details
4-pole residual current circuit breaker 6kA 40A 30mA Type A. Residual current circuit breaker (RCD) according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11) with Bi-Connect terminals at the bottom, external blue test button, and residual current indicator. Suitable for retrofitting additional devices. Connection terminals with wire insertion protection, labeling option directly on the device.
3. Hager FI-LS 1P+N
The FI-LS 1P+N from Hager is a highly advanced residual current circuit breaker that offers both safety and reliability in electrical installations. With a tripping characteristic of type C and a rated current of 13 A, this switch is ideal for protecting electrical lines and devices from overload and short circuits. The switch is designed for mounting on DIN rails and features a fault position indicator that allows for easy identification of faults. The FI-LS 1P+N provides a residual current monitoring of 30 mA, making it an excellent choice for applications where the protection of people and devices is of utmost importance. Its compact design and the ability to position the neutral conductor on the right facilitate installation and integration into existing systems. This switch is an essential component for modern electrical installations that require the highest safety standards.
- Residual current monitoring of 30 mA for enhanced personal protection
- Tripping characteristic type C for reliable overload protection
- Compact design for easy mounting on DIN rails
- Fault position indicator for quick identification of disturbances
- Switching neutral conductor for improved safety.
4. Hager FI/LS 4Pol. 3P+N 20A/30mA
The Hager FI/LS 4Pol. 3P+N 20A/30mA is a combined residual current and overload protection switch that offers protection against both overload and fault currents. With a rated voltage of 400 V and a tripping characteristic of class C, this device is ideal for applications that require robust and reliable protection. The switch is designed for mounting on a DIN rail and features a compact design that allows for easy installation. A test button and a fault current indicator through a blue display window provide additional safety and user-friendliness. The FI/LS switch is suitable for use in various electrical systems and offers a high rated insulation voltage of 500 V, making it a versatile choice for different applications.
- Combined protection switch for overload and fault currents
- Test button for easy functionality check
- Fault current indication through blue display window
- Mounting on DIN35 rail for easy installation
- High rated insulation voltage of 500 V.
5. Hager HAG ADS963D
The HAG ADS963D Fi-LS 1P+N 6kA C-13A 30mA Type A QC from Hager is a highly developed residual current circuit-breaker that offers protection against both overload and residual currents. With a rated current of 13 A and a rated residual current of 30 mA, this device is ideal for use in residential and commercial installations. The switch is equipped with a QuickConnect terminal for quick and easy installation. It fulfils the requirements of DIN EN 61009-1 and offers a high level of contact protection in accordance with DIN VDE 0106 Part 100. The blue test button and the residual current indicator ensure user-friendly handling and safety. In addition, the labelling option directly on the device enables clear marking, which makes maintenance and identification easier.
6. Hager FI / LS 4P 6kA C-16A 30mA A
The residual current circuit breaker from Hager is a reliable device that functions both as a circuit breaker and as a residual current protection switch. With a rated voltage of 400 volts and a rated current of 16 amperes, this switch provides an effective solution for protecting electrical installations. The Type A residual current protection ensures safe monitoring of fault currents up to 30 milliamperes, while the tripping characteristic C allows for a delayed response to overloads. The switch is designed for mounting on DIN rails and features four poles, making it ideal for various applications. The integrated residual current indicator allows for easy checking of the device's status, while the fault location indication supports precise problem localization. With a robust design and an IP20 protection rating, this residual current circuit breaker is suitable for both private and commercial use.
- Type A residual current protection for enhanced safety
- Integrated residual current indicator for easy checking
- Suitable for mounting on DIN rails
- Delayed tripping characteristic (Type C) for overload protection
- Fault location indication for precise problem localization.
7. Hager FI LS 10A 10mA
The FI LS 10A 10mA from Hager is a combined residual current circuit breaker that functions both as a residual current device (RCD) and as a circuit breaker (MCB). With a Type C tripping characteristic, it is suitable for applications that require a delayed response to overload currents. The switch is equipped with a test button that allows for easy functionality checks. A residual current indicator is signaled by a blue display window, making it easier to monitor the device. The FI LS is designed for mounting on a DIN35 rail and offers a compact design with a nominal height of 68 mm. It is ideal for use in residential and commercial buildings to ensure a high level of protection against electrical faults.
- Combined function as a residual current and circuit breaker
- Test button for easy functionality check
- Residual current indication via blue display window
- Suitable for mounting on DIN35 rail
- Protection class IP20 for indoor use.

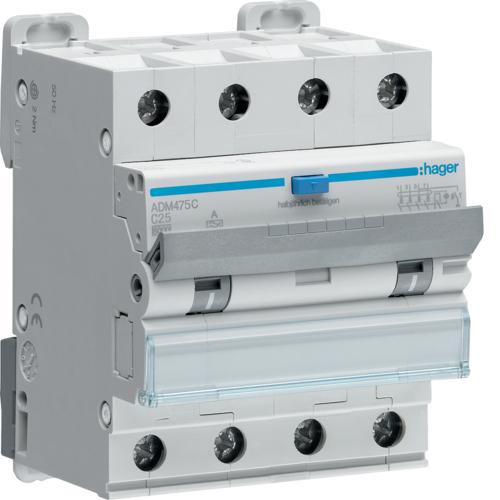

8. Hager FI/LS 4Pol. 3P+N 25A/30mA
The Hager FI/LS 4Pol. 3P+N 25A/30mA is a combined residual current circuit breaker that provides protection against overloads as well as fault currents. With a rated voltage of 400 V and a type C tripping characteristic, this device is ideal for applications that require robust and reliable protection. The switch is designed for mounting on a DIN rail and features a compact design that allows for easy installation. A test button and a fault current indicator through a blue display window provide additional safety and user-friendliness. The FI/LS switch is suitable for use in various electrical systems and offers a high degree of protection with an IP20 rating, safeguarding it against dust and contact.
- Combined protection switch for overloads and fault currents
- Test button for easy functionality check
- Fault current indicator through blue display window
- Suitable for mounting on DIN35 rail
- High rated insulation voltage of 500 V.
9. Hager FI/LS 4Pol. 3P+N 32A/30mA
The combined residual current circuit breaker from Hager, model FI/LS 4Pol. 3P+N 32A/30mA, offers a reliable solution for protecting electrical installations. With a tripping characteristic of class C, this breaker is ideal for applications that require a slow response to overload currents. The breaker is designed for mounting on a DIN rail and features a compact design that allows for easy installation. A test button and a residual current indicator through a blue display window provide additional safety and user-friendliness. The breaker is rated for a nominal voltage of 400 V and offers a rated current of 32 A, making it a robust choice for various electrical systems.
- Combination of residual current and circuit breaker
- Test button for easy functionality check
- Residual current indication through blue display window
- Suitable for mounting on DIN35 rail
- Protection class IPX2 for additional moisture protection.

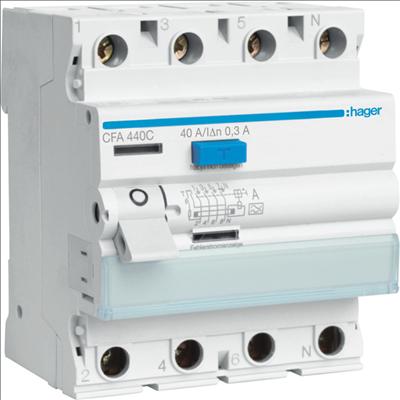

10. Hager Ground fault circuit interrupter 3P+N40A/300mA
The Hager FI switch 3P+N40A/300mA is a highly advanced residual current device designed for use in electrical installations. It provides reliable protection against fault currents that can arise from insulation failures or other disturbances. With a nominal height of 68 mm and snap-on mounting for DIN35 rail, it is easy to install and can be used in various applications. The switch features a fault current indicator, signaled by a yellow display window, as well as a test button that allows for regular functionality checks. It is suitable for personal protection with a fault current of 10–30 mA and for insulation and machine protection with 300 mA. This versatility makes it an important component in electrical safety.
- Snap-on mounting for DIN35 rail for easy installation
- Fault current indicator via yellow display window
- Test button for functionality checks
- Suitable for personal protection (10–30 mA) and insulation protection (300 mA)
- Protection class IP20 for use in dry indoor environments.
