Best Eaton products in the Residual-current device category
On this page you'll find a ranking of the best Eaton products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Eaton FI/LS combination, 16 A, 300 mA, LS- 120668
The FI/LS combination from Eaton is a reliable and safe protective switch designed for both personal safety and machine and insulation protection. With a rated current of 16 A and a rated residual current of 300 mA, this device offers an effective solution for residential and commercial buildings. The combination of residual current and circuit breakers allows for compact installation on a DIN35 rail and is equipped with a test button and a tripping indicator to verify functionality. The delayed characteristic "C" ensures that the switch does not trip during short-term overloads, making it ideal for applications with high inrush currents. The installation is straightforward and user-friendly, facilitating the work for professionals.
- Combined residual current and circuit breaker for comprehensive protection
- Test button and tripping indicator for easy functionality check
- Delayed tripping characteristic "C" for high inrush currents
- Suitable for installation on DIN35 rail
- Protection class IP20 for indoor use.
2. Eaton Circuit breaker, 32 A, 2p, 243138
The Eaton circuit breaker is a reliable device specifically designed for direct current applications up to 250 V DC. With a rated current of 32 A and a pole count of 2, this protective switch provides an effective solution for safeguarding electrical circuits against overload and short circuits. Installation is quick and easy on a DIN35 rail, allowing for flexible mounting options. Additionally, the switch can be installed in any orientation, further simplifying handling. The circuit breaker meets the requirements of modern electrical systems and contributes to safety and efficiency in its application.
- Suitable for direct current applications up to 250 V DC
- Easy installation on DIN35 rail
- Orientation-independent installation.
3. Eaton RCD switch, 100A, 4p, 300mA, type S/A 290220
The Eaton RCD is a highly advanced residual current device designed for use in various electrical installations. With a rated current of 100A and a residual current sensitivity of 300mA, this model provides protection for both people and machines, as well as insulation. The selective design allows for multiple RCDs to be connected in series with a tripping current of 30mA, ensuring effective and safe operation in complex electrical systems. The inverter-resistant design minimizes the risk of unwanted tripping, particularly in conjunction with frequency converters and speed-controlled drives. The switch is suitable for mounting on a DIN35 rail and features a practical test button for easy functionality checks. With a compact height of 68 mm, it is ideal for use in various applications.
- Snap-on mounting on DIN35 rail
- Test button for easy functionality check
- Selective design for multiple RCDs
- Inverter-resistant design to prevent unwanted tripping.
4. Eaton RCD, 80A, 4p, 30mA, type A 235447
The Eaton RCD is a highly advanced residual current device designed for use in electrical installations. With a rated current of 80 A and a four-pole design, it provides reliable protection against electrical fault currents. The switch is equipped with a test button that allows for easy functionality checks. It can detect fault currents of 30 mA, making it ideal for personal protection. Additionally, the switch features a selective design that allows for the pre-installation of multiple RCDs with a 30 mA trip current, enhancing safety in complex installations. The inverter-resistant design ensures that unwanted tripping in conjunction with frequency converters and speed-controlled drives is avoided, increasing reliability in industrial applications. Therefore, the Eaton RCD is an excellent choice for anyone who values safety and efficiency in their electrical systems.
- Snap-on mounting on DIN35 rail for easy installation
- Inverter-resistant design to prevent unwanted tripping
- Selective design allows for the use of multiple RCDs
- Test button for easy functionality check.
5. Eaton MOE mRB4-25/3N/C/003-A Fi/LS switch 25A C-Char 30mA
The Eaton mRB4-25/3N/C/003-A is a combined RCD and circuit breaker designed for use in residential and commercial buildings. With a rated current of 25 A and a rated residual current of 30 mA, this switch provides reliable personal protection. It meets the requirements of the IEC/EN 60947-2 and IEC/EN 61009 standards with a rated short-circuit capacity of 4.5 kA. The switch is 3-pole plus neutral and features a type C delayed tripping characteristic, making it particularly suitable for applications with higher inrush currents. Installation is straightforward on a DIN35 rail, facilitating integration into various electrical systems. The switch is equipped with a test button and a tripping indicator to regularly check its functionality.
- 3-pole plus neutral (N)
- Type C delayed tripping characteristic
- Test button and tripping indicator for easy functionality tests
- Snap-on mounting on DIN35 rail
- Protection class IP20 for indoor use.
6. Eaton RCCB 63A 30mA 4P Type A
Number of poles: 4P
Rated current: 63 A
Tripping sensitivity: 30 mA
AC rated voltage: 230 – 400 V
Mounting type: DIN rail mounting
Series: PFIM
Tripping time: Instantaneous
Series: PFIM
Tripping characteristic: Type A
The PFIM series is a professional range of compact Eaton residual current devices. Each unit features a display of the actual contact position. Ideal for residual current protection and additional safety in a variety of applications. Various rated tripping currents are available.
7. Eaton MOE mRB6-13/3N/C/003-A Fi/LS switch 13A C-Char 30mA
The Eaton mRB6-13/3N/C/003-A is a combined residual current and circuit breaker designed for use in residential and commercial buildings. With a rated current of 13 A and a rated residual current of 30 mA, it provides reliable personal protection. The slow tripping characteristic "C" ensures that the breaker does not trip during short-term overloads, making it ideal for applications with high inrush currents. The breaker is suitable for mounting on a DIN35 rail and features a snap-on installation that allows for easy setup. With a rated short-circuit capacity of 6 kA according to IEC/EN 60947-2 and IEC/EN 61009, it guarantees high safety and reliability in operation. Additionally, the breaker is equipped with a test button and a trip indicator for easy functionality checks.
- Combined residual current and circuit breaker for personal protection
- Slow tripping characteristic "C" for applications with high inrush currents
- Mounting on DIN35 rail with snap-on installation
- Test button and trip indicator for easy functionality check
- High safety with a rated short-circuit capacity of 6 kA.

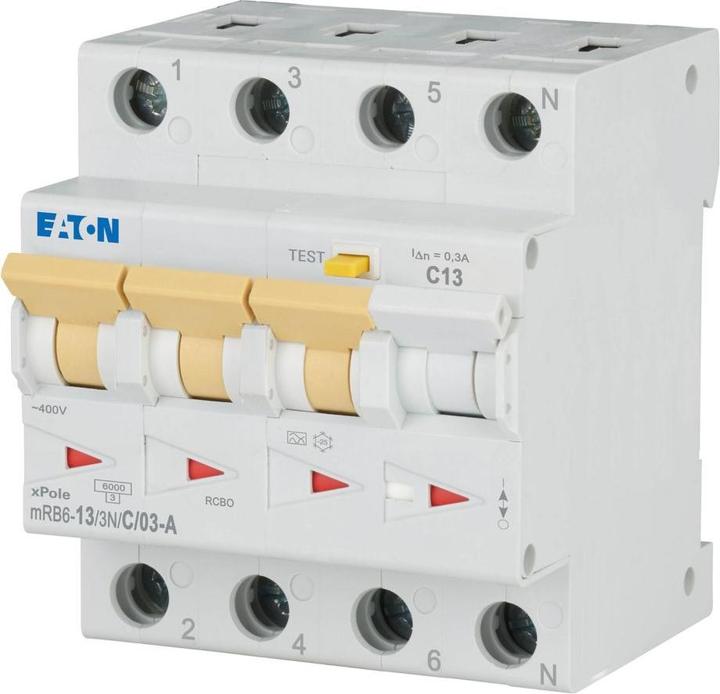

8. Eaton mRB6-13/3N/C/03-A
The mRB6-13/3N/C/03-A from Eaton is a combined RCD and circuit breaker designed for use in residential and commercial buildings. With a rated current of 13 A and a rated residual current of 0.3 A, this device provides protection for both persons and machines as well as insulation. The switch features a type C tripping characteristic, ensuring a slow response to overload currents. The model is suitable for mounting on a DIN rail and includes a snap-on fastening for easy installation. Its compact design, with a width of only 4 mm per pole, allows the switch to fit into various electrical installations. Additionally, the switch is certified according to IEC/EN 60947-2 and IEC/EN 61009 with a rated breaking capacity of 6 kA, ensuring high reliability and safety.
- Combined RCD and circuit breaker for personal protection and machine/insulation protection
- Type C slow tripping characteristic
- Mounting on DIN35 rail with snap-on fastening
- Certified according to IEC/EN 60947-2 and IEC/EN 61009
- Protection class IP20 for indoor use.

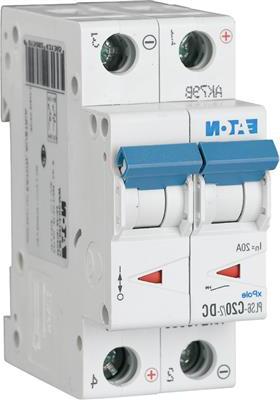

9. Eaton Circuit breaker, 20 A, 2p, 243136
The Eaton circuit breaker is a reliable protection device designed for direct current applications up to a maximum voltage of 250 V DC. With a width of only 2 millimeters, this switch is ideal for mounting on a DIN35 rail, allowing for easy and flexible installation. The design is such that the switch can be used in any installation position, facilitating handling and integration into various systems. The circuit breaker features two poles, providing effective protection for electrical circuits. By using high-quality materials and adhering to strict safety standards, this product ensures high reliability and durability. The manufacturer Eaton is known for its commitment to sustainability and has joined the SBTi initiative, emphasizing responsibility for environmentally friendly practices. This circuit breaker is an excellent choice for anyone who values safety and efficiency in their electrical installations.

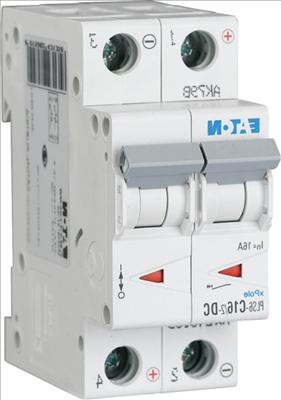

10. Eaton Circuit breaker
The Eaton circuit breaker is a reliable solution for direct current applications with a maximum voltage of 250 V DC. It offers easy installation through snap-on mounting on a DIN35 rail and allows for flexible installation as it can be mounted in any orientation. This circuit breaker is specifically designed for use in electrical systems and ensures a high standard of safety. With a type C tripping characteristic, it is capable of effectively detecting and interrupting overload and short-circuit currents to protect connected devices. The circuit breaker is designed in a compact format, making it ideal for applications with limited space.
- Suitable for direct current applications up to 250 V DC
- Snap-on mounting on DIN35 rail for easy installation
- Orientation-independent installation for flexible installation options
- Type C tripping characteristic for effective protection against overload and short circuit.
