Best Gesipa products in the Pliers category
On this page you'll find a ranking of the best Gesipa products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

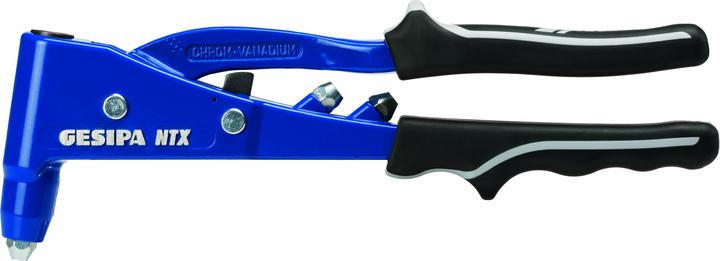

1. Gesipa Blind rivet pliers NTX
Gesipa NTX blind riveting pliers. Ideal for the professional.
Featuring double lever transmission, the pliers body is made of aluminium injection moulding, and the lever is made of chrome vanadium steel. It has a blue hammer finish with black handles. The mouthpieces included are 10/18, 10/24, and 10/29.
Working range: up to 5 mm diameter aluminium and 4 mm diameter stainless steel.
2. Gesipa Blind Rivet Nut Pliers GBM5
Blind rivet nut pliers GBM5 on SB card. The body is made of cast aluminum with a red hammer finish and black plastic handles. It features threaded mandrels M4, M5, and M6, easy stroke adjustment, and quick change of mandrels without tools.

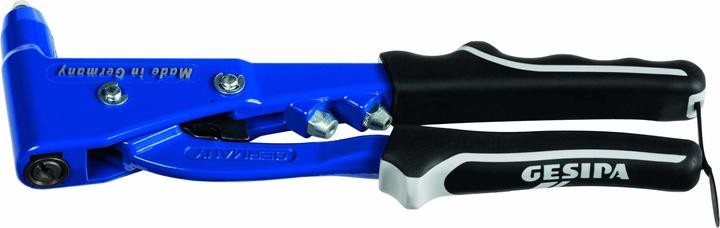

3. Gesipa Blind Rivet Pliers NTX-F
Blind riveting pliers Gesipa NTX-F with opening spring for automatic mandrel ejection. The body of the pliers is made of die-cast aluminium, and the lever is made of chrome vanadium steel with a blue hammer finish. It features black handles and includes nosepieces 10/18, 10/24, and 10/29.
Working range: up to 5 mm diameter aluminium and 4 mm diameter stainless steel.

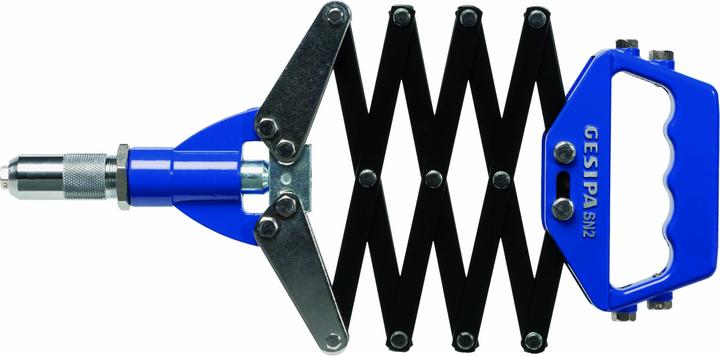

4. Gesipa Scissor riveter SN 2
SN 2 scissor riveting tool.
The pliers housing and handle are made of high-quality die-cast aluminum, featuring a hardened steel scissors system with corrosion protection. It has a hand-compatible handle design, double bearing, and a narrow housing for hard-to-reach riveting points. The closed pliers housing prevents contamination.
Working range: up to 6.4 mm diameter for all materials.
Technical data:
- Length closed: 294 mm
- Length open: 832 mm
- Working stroke: 11 mm
Equipment includes:
- Nose piece 16/32, no. 1948793 in working position
- Nose piece 16/29, no. 1948785
- Nose piece 16/45, no. 1948827 enclosed
- 1 assembly spanner MSU
- Maintenance manual with spare parts.

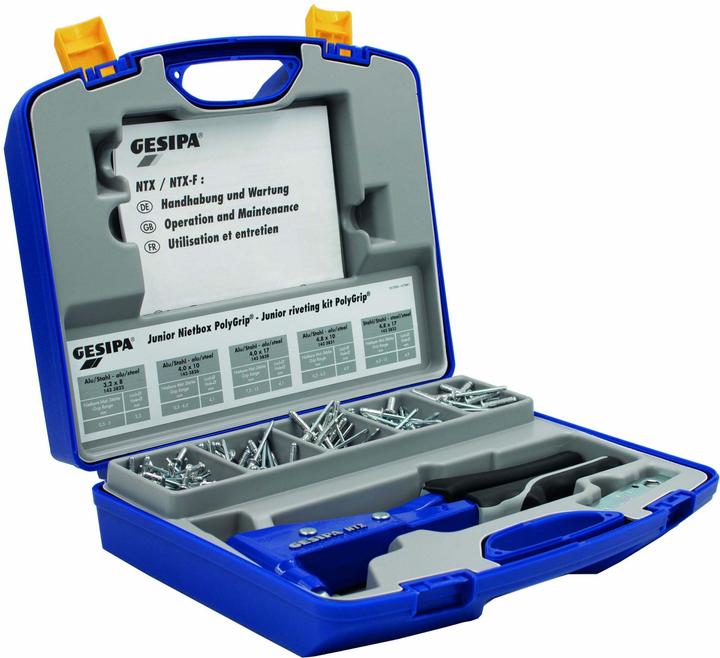

5. Gesipa Blind Rivet Assortment Junior Rivet Box PolyGrip
Gesipa Blind Rivet Assortment Junior Rivet Box PolyGrip® 352 pieces in a metal case.
Manufacturer: Gesipa
Description: Gesipa Blind Rivet Assortment Junior Rivet Box PolyGrip® 352 pieces in a metal case
Type: Junior Rivet Box PolyGrip®
Country of Origin: Germany
Contents: 352 pieces
Accessories: NTX pliers and PolyGrip® blind rivets aluminum/steel, steel/steel
Width: 165 mm
Length: 275 mm
Packaging: Plastic case
Height: 40 mm
Packaging Size: 1 piece
Additional Details: Hand riveter NTX with 3 nozzles: 10/18, 10/24, and 10/32.
Delivery Includes: 1 piece NTX hand riveter, working range up to 5 mm aluminum and 4 mm steel and stainless steel, as well as 5 sizes of PolyGrip® blind rivets aluminum/steel 3.2 mm, 4.0 mm, 4.8 mm, and steel/steel 4.8 mm. Delivered in a plastic case.

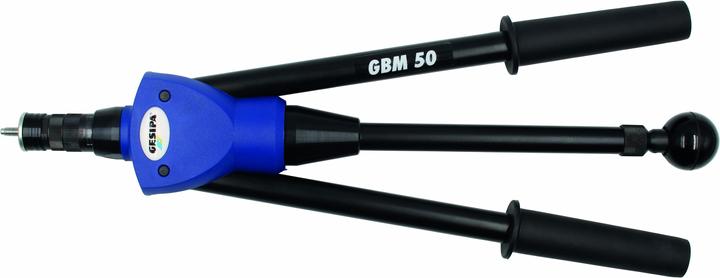

6. Gesipa Hand-held blind rivet nut setter GBM 50
The GBM 50 features the proven technology of the GBM 30 in a new design. This hand riveter can set blind rivet nuts up to M12. Thanks to the Quick-Drill feature, quick drilling and removal of the blind rivet nut is possible. The large lever also requires minimal effort. Fast and tool-free changing of the thread mandrels and nozzles is possible, and they are compatible with the GBM 40.
Delivery includes nozzles and thread mandrels in sizes M5, M6, M8, and M10, a mounting key, and an operating manual, all in a sturdy plastic carrying case.
Type: GBM 50
Length (mm): 485
Weight (kg): 2.4
Device stroke (mm): 6
Working range: Blind rivet nuts from M3 to M10 of all materials, as well as M12 in aluminum and steel; blind rivet screws from M4 to M8
Design: Nozzles and thread mandrels in sizes M5, M6, M8, and M10
Brand: Gesipa
Contents (ST): 1.

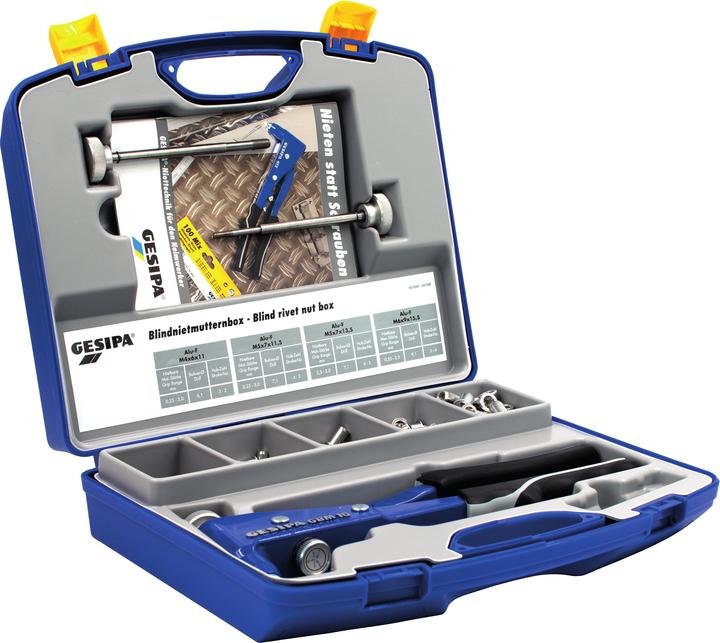

7. Gesipa Blind Rivet Nut Box
Gesipa Blind Rivet Nut Box
The blind rivet nut box includes the hand-held blind rivet nut setting tool GBM 10 and four sizes of blind rivet nuts as well as thread mandrels. The hand tool features an easy stroke adjustment via a knurled nut with a stroke scale for secure and complete setting of the blind rivet nut. The thread mandrel is secured by a spring ring, allowing for quick changes of the thread mandrels without tools. The GBM 10 is equipped with a non-slip and ergonomic grip, and the opening spring facilitates easy handling when setting blind rivet nuts.
Technical Details
- Working range: Blind rivet nuts from M3 to M6 in aluminum and up to M5 in steel, brass, and stainless steel. (Thread mandrel and nozzle M3 available as special accessories)
- Working range in aluminum: M6
- Working range in steel: M5
- Setting stroke: 7 mm
- Operating mode: Manual
Scope of Delivery
- 1x Blind Rivet Nut Box including setting tool
Quality Products from Gesipa
Gesipa employs over 700 staff across six production sites worldwide, three of which are located in Germany. Through dedication and passion, high-quality and innovative products are created for professionals and hobbyists alike.

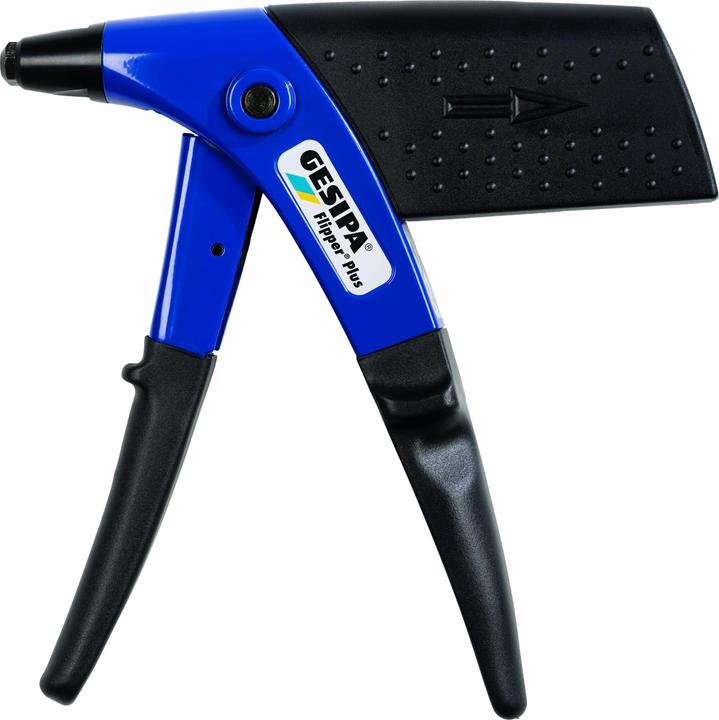

8. Gesipa Flipper Plus combi set
Kombizange Flipper Plus
Nearly tool-free conversion from blind rivet to blind rivet nut setting device.
Working range for blind rivets: Processes all blind rivets up to 5 mm Ø in aluminum and 4 mm Ø in steel and stainless steel.
Working range for blind rivet nuts: Sets blind rivet nuts from M4 to M6 in aluminum and from M4 to M5 in steel.
Common advantages:
- New ratchet function: When the human hand closes, the force increases. This insight is effectively utilized through a special lever mechanism for setting blind rivets and blind rivet nuts.
- Ergonomic design: The required hand force is reduced by approximately 40 percent during repeated operation.
- Actuation lever with opening spring for optimal one-handed operation.
Advantages of setting blind rivets:
- Gripping mechanism with spring return for secure and automatic mandrel ejection.
- Mandrel catch container can be attached to the tool housing and is easy to empty.
- Large device stroke: advantageous for overlong blind rivets.
Advantages of setting blind rivet nuts:
- Large stroke of 16.2 millimeters for easy setting of blind rivet nuts, even in minimal material thicknesses, as well as for setting PolyGrip blind rivet nuts.
- Simplified adjustment for setting blind rivet nuts.
9. Gesipa Mandrels for blind rivet nut pliers GBM 10
Mandrel M4 No. 140 for GBM10.
10. Gesipa Blind rivet nut hand tool GBM 10 (mandrel and nose piece M 4)
