Best Uni-T products in the Multimeter category
On this page you'll find a ranking of the best Uni-T products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

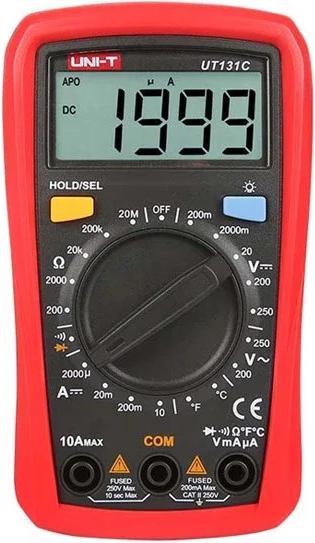

1. Uni-T UT-131C
The UT-131C handheld multimeter from Uni-T is a compact and versatile measuring device suitable for a variety of applications in electrical engineering and electronics. With a digital display of 2000 counts, it allows for precise measurements of voltage, current, and resistance. The device supports both AC and DC measurements up to 250 V and offers a resistance measurement range of up to 20 MΩ. Additionally, the UT-131C features extra functions such as continuity and diode testing, making it a useful tool for both professionals and hobbyists alike. Weighing only 206 g, it is lightweight and portable, making it ideal for on-site use. Its simple operation and clear displays make it a practical choice for anyone needing reliable measurements.
- Maximum current measurement range of 10 A for DC applications
- Resistance measurement range up to 20 MΩ for precise resistance measurements
- Continuity and diode testing functions for added versatility
- Compact design for easy handling and transport.
2. Uni-T UT136C+
This UT136C+ multimeter from UNI-T is the successor to the popular UT136B, this compact digital multimeter is perfect for electronics and Arduino enthusiasts. As it has an autorange function, measurements are always taken with the best accuracy and there is no need for tedious repositioning of the measuring device. The multimeter is ideal for the laboratory, workshop, hobby and household. The UT136C multimeter can now also measure temperatures and transistors, which the previous model could not do. Two AA batteries are still required, these are not included in the scope of delivery.
3. Uni-T UT161D
The UT161D is a versatile handheld multimeter designed for precise measurements in various applications. It features automatic range switching, which makes operation easier and increases efficiency. With the capability for true RMS measurement, the device provides accurate results when measuring alternating voltages and currents. A notable feature is the measurement of electromagnetic field intensity, which is significant for professionals in electrical engineering. The multimeter includes a low-pass filter that minimizes interference in the measurements. Additionally, users can freeze the last measurement and record maximum, minimum, and peak values, allowing for comprehensive analysis of the measurement data. The analog bar graph with 31 segments offers a visual representation of the readings, while the automatic shutdown helps save energy.
- True RMS measurement for precise AC measurements
- Measurement of electromagnetic field intensity
- Low-pass filter to minimize interference
- Recording of maximum, minimum, and peak values
- Analog bar graph with 31 segments for visual representation.

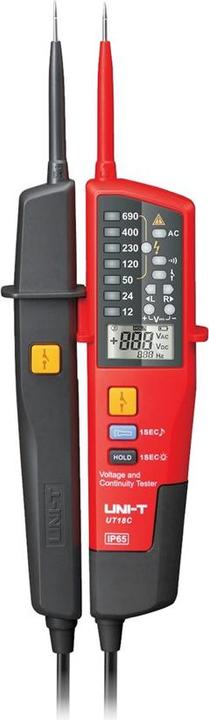

4. Uni-T UT-18C
With the UT-18C meter you can measure AC and DC voltage in the range of 12 ... 690 V. The measurement takes place automatically when the probes touch the measuring points. The device automatically selects the correct measuring range and informs the user about it via diodes above the display. In addition to voltage measurement, the unit allows testing of circuit continuity and measurement of phase shift between two supply phases. LCD display: ✔ DC voltage measurement: example measurement: 12 V, 24 V, 50 V, 120 V, 230 V, 400 V, 690 V AC voltage measurement: example measurement: 12 V, 24 V, 50 V, 120 V, 230 V, 400 V, 690 V Phase sequence detection: ✔ Voltage resistance detection DC: ✔ Acoustic circuit integrity alarm: 0 ... 100 kΩ Resistance measurement: - Frequency measurement: 40 Hz ... 400 Hz Test RCD (residual current device). Test) : ✔ Main features : Audible alarm Overvoltage indication Voltage test function (measurement with a probe using a contact placed on it) - When a voltage above 100 V is detected, the diode lights up. Low battery indicator. Integrated torch. Aesthetic and solid manufacture Power supply: 2 x 1.5 V battery, type AAA/LR03 - included. Weight: 0.27 kg. Dimensions: 272 x 85 x 31 mm. Manufacturer/Brand: UNI-T. Warranty: 2 years.
5. Uni-T Temperature measuring device UT301A+
UT301 series infrared thermometers are professional tools for fast and accurate non-contact temperature measurement. TEMPERATURE RANGE: -32 °C ~ 420 °C; -25.6 °F ~ 788 °F Accuracy: > 0 °C: ± 1.5 °C or ± 1.5 %, - 32 °F: ± 3 °C or ± 1.5 %, - <32 °F: ± (3 °F + 0.1 °F / °F) Repeatability: 0.7 °C or 0.7 %; 1.5 °F or 0.7 % Ratio distance to test surface: 12:1 (95 %) Response time: <= 250 ms (95 % of reading) Emissivity: 0.1 ~ 1 (adjustable) Spectral sensitivity: 8 µm ~ 14 µm Laser type: class 2 (II) Laser power: <1 mW Laser wavelength: 630 nm ~ 670 nm ADDITIONAL FUNCTION Selection: ° C / ° F Freeze last measurement Auto power off Low battery indicator Displays maximum/minimum/average/different temperature. LCD display with illumination Can be mounted on a tripod. Upper and lower limit alarms. GENERAL FEATURES. Power supply: 9 V battery. Display size: 30 x 30 mm. Dimensions: 160 x 74 x 48 mm. Product weight (without batteries): 204 g. Accessories: Battery, case.
6. Uni-T Universal multimeter UT120C
Lightweight, portable pocket-sized multimeter with automatic range selection. It allows for the measurement of DC and AC voltage, frequency, impedance, and capacitance. With the data storage function, you can save the result of the last measurement, and the standby mode helps to conserve energy. Powered by a 3V battery, which is also included. A digital display indicates the battery level. Built-in buzzer for circuit continuity testing.
Specifications:
- DC Voltage: 400 mV / 4000 mV / 40 V / 600 V DC
- AC Voltage: 4 V / 40 V / 400 V / 600 V AC
- DC Current: 400 μA / 4 mA / 40 mA / 400 mA DC
- AC Current: 400 μA / 4 mA / 40 mA / 400 mA AC
- Resistance: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
- Capacitance: 4 nF / 40 nF / 400 nF / 4 µF / 40 µF / 200 µF
- Frequency: 10 Hz to 100 kHz
- Automatic range selection
- Standby mode
- Buzzer
- Data storage function
- Battery indicator
- LCD 4000 (43 x 22 mm) screen
- Dimensions: 110 x 58 x 11 mm
- Power source: 3 V battery (CR2032)
- Weight: 62 g
Included in the package: test leads, case, 3V battery, instructions in Polish and English. Warranty: 24 months.
7. Uni-T UT139C
True RMS multimeter with automatic range adjustment enables the measurement of DC and AC voltage up to 600 V, DC and AC voltage up to 10 A, resistance, capacitance and frequency. Thanks to the attached probe, the temperature can be measured at -40 ÷ 200 ° C. The device has a function for saving the last measurement result. A built-in audible alarm is used to check the continuity of the circuit. The digital display shows the battery charge level.

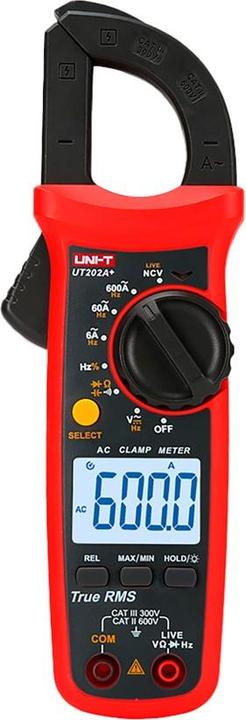

8. Uni-T UT202A + terminal meter
9. Uni-T Insulation resistance meter UT511
The insulation resistance tester UNI-T UT511 is a digital measuring device designed for both electronic fields. Enables the measurement of high resistances up to 10 GOhm at a test voltage of 1000 V. In addition, you can measure AC and DC voltages as well as low resistances with this meter. Among the many additional functions, the dielectric absorption test, polarisation indexing and comparator function are worth highlighting. This model complies with IECG1010 standards. Technical data: Test voltage 100 V:- 0.1 MOhm ~ 99.9 MOhm ± (3 % + 5)- 100 MOhm ~ 500 MOhm ± (5 % + 5)Test voltage 250 V:- 0.5 MOhm ~ 99.9 MOhm ± (3 % + 5)- 100 MOhm ~ 999 MOhm ± (5 % + 5)1 GOhm ~ 1.99 GOhm ± (5 % + 5)500 V test voltage:- 1 MOhm ~ 99.9 MOhm ± (3 % + 5)- 100 MOhm ~ 999 MOhm ± (5 % + 5)1 GOhm ~ 3.99 MOhm ± (5 % + 5)1000 V Test voltage:- 2 MOhm ~ 99.9 MOhm ± (3 % + 5)- 100 MOhm ~ 999 MOhm ± (5 % + 5)1 GOhm ~ 10 GOhm ± (5% + 5)Test current: 1mA ~ 1.2mA Short-circuit current: <2mADuration voltage: 30 ~ 1000V ± (2% + 3) AC voltage: 30 ~ 750V ± (2% + 3) Low resistance: 0.1ohm ~ 999.9ohm ± (1% + 3) Automatic range change Dielectric absorption test Polarisation indexing Comparison function Discharged battery indicator High voltage warning Illuminated LCD display Buzzer Analogue diagram: 30 segments Automatic switch-off Power supply : 8x 1.5 V battery (LR14) Display: 123 x 58 mm Product dimensions: 202 x 155 x 94 mm Product weight: 1.2 kg Included in delivery: 3x measuring lead with crocodile clips Batteries Case.

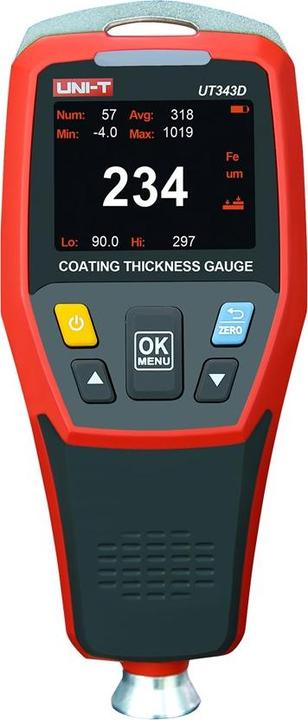

10. Uni-T Coating thickness gauge UT343D
The UT343D thickness gauge is a precise and versatile measuring instrument designed for determining the coating thickness on various types of metals. With a measurement range of 0 to 1250 micrometers, it offers high accuracy and resolution, allowing for reliable measurement of both thin and thick coatings. The device supports various measurement modes, including Maximum, Minimum, and Average, making it suitable for both single measurements and continuous monitoring. The 2-inch TFT-LCD screen provides a clear display of measurement results and features automatic screen rotation for easier handling. Additionally, the UT343D includes an alarm function, a PC connection for data transfer, and a quick test mode that enhances efficiency during use. With a data memory capacity of up to 500 groups of measurement data, it is ideal for professional applications where precise documentation is required.
- Measurement range of 0 to 1250 micrometers
- Supports various measurement modes: Maximum, Minimum, Average
- 2-inch TFT-LCD screen with automatic screen rotation
- Data memory for up to 500 groups of measurement data
- PC connection for easy data transfer.
