Best Benning products in the Multimeter category
On this page you'll find a ranking of the best Benning products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Benning Double pole voltage tester DU
The DUSPOL digital is a digital true RMS voltage and continuity tester with resistance and frequency range. The voltage tester is suitable for electrical engineering, industry, maintenance, service (troubleshooting), as well as photovoltaic and wind power systems.
2. Benning Duspol
The Duspol voltage tester features a direct display system with low load on the test point. If needed, a load circuit can be activated via a push button, which suppresses inductive and capacitive reactive voltages. This allows for a clear distinction between high-energy and low-energy circuits. An additional feature is an optional vibration motor, whose vibration intensity increases proportionally with the applied voltage, serving as an extra indication of the presence of voltage.
3. Benning mm P3
The pocket-sized multimeter. With its compact dimensions, the MM P3 is the ideal companion for service, hobbies, and professional measurement tasks. Weighing only 130 g and 12 mm deep, it features a modern device design that fits, along with accessories, into any pocket. Basic measurement types for voltage, resistance, frequency, and capacitance. Measurement value memory HOLD; automatic and manual range selection; overload protection in all ranges; automatic shutdown when not in use (deactivatable). Excellent price-performance ratio; protective case, batteries, and test leads included.

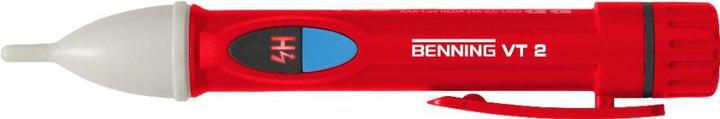

4. Benning Non-contact voltage tester Phase and magnetic field tester
The Benning VT 2 is a non-contact voltage tester designed for both phase testing and magnetic field testing. This device allows for single-pole phase indication and is ideal for checking sockets, junction boxes, switches, wires, and lamps. With high sensitivity, the VT 2 can also be used on various protective contact and CEE sockets. The display is provided by a red LED and an acoustic buzzer, with the LED blinking frequency and buzzer frequency increasing with the voltage level. The capacitive measurement method does not require current flow, making it easier to use on isolated lines, such as extension cords or light strings. The voltage tester is also equipped with an integrated test magnet that allows for functional testing. The impact-resistant ABS housing ensures durability and ease of handling. With an IP 53 protection rating, the VT 2 can also be used in adverse weather conditions.
- Testing of magnetic fields, including permanent, alternating, and direct current-induced fields
- Capacitive measurement method that requires no current flow
- High sensitivity for precise phase testing on various socket types
- Integrated test magnet for functional testing of the device
- Impact-resistant ABS housing for increased robustness.
Multimeter
CHF52.95
Benning Non-contact voltage tester Phase and magnetic field tester
CAT III 1000V, CAT IV 600V

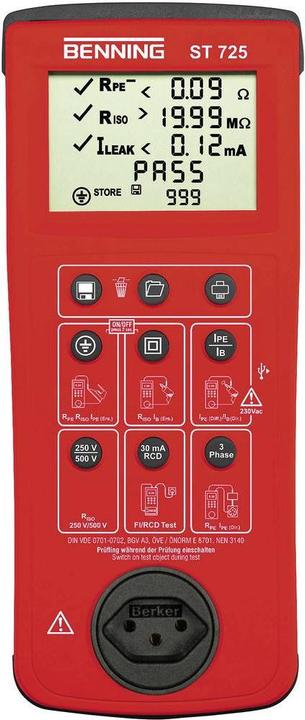

5. Benning Device tester ST 725 CH
With the battery- and mains-operated device tester ST 725, mobile, simple, and cost-effective testing of electrical devices and working equipment can be carried out in accordance with DIN VDE 0701-0702, DGUV Regulation 3, ÖVE/ÖNORM E 8701, and NEN 3140. The mains operation enables the complete testing of devices with power supplies such as electronically controlled devices, tools, PCs, copiers, and washing machines under functional conditions.

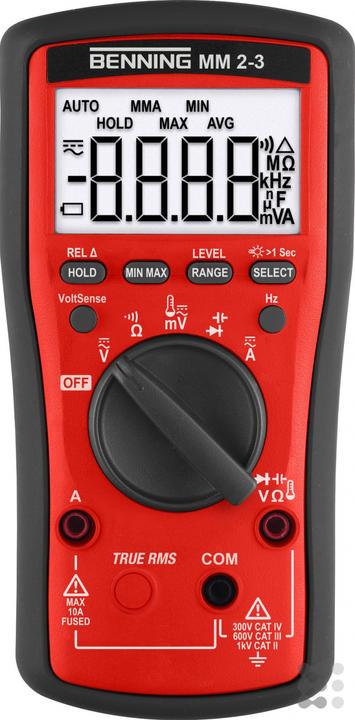

6. Benning BENN Digital Multimeter
The BENNING Digital Multimeter MM 2-3 is a versatile handheld multimeter, ideal for applications in electrical engineering, industry, service, crafts, automotive, and photovoltaics. With its 4-digit LCD display, capable of showing up to 6,000 counts, it offers clear and precise readability. The backlighting of the display allows for use in low-light conditions. The multimeter supports True RMS measurement, ensuring accurate measurement of alternating currents and voltages. It is equipped with a robust rubber protective frame that not only enhances grip but also improves protection against impacts. The extensive measurement functions include voltage, current, resistance, and capacitance measurements, as well as temperature measurements and continuity testing. The device is ergonomically designed and features automatic range selection, making it user-friendly.
- True RMS measurement for precise AC measurements
- Maximum voltage measurement range of 1000 V for AC and DC
- Temperature measurement from -40 °C to +400 °C
- Optical and acoustic socket testing for error checking
- Includes silicone test leads and rubber protective frame for additional protection.
7. Benning Current clamp digital CM P2 Calib
Benning Digital Clamp Meter CM P2
Manufacturer: Benning
Description: Digital Clamp Meter DC 0.01-400A
Type: CM P2
Display: Digital
Analog bar graph display: No
Multiple display: No
With screen backlight: Yes
Measurement value memory: No
Measurement range selection: Automatic
Current measurement range/DC: 0.01-400 A
Current measurement range/AC: 0.01-400 A
Current type: AC/DC
True RMS measurement: Yes
Voltage measurement/AC: No
Voltage measurement/DC: No
Resistance measurement range: No
Temperature measurement: No
Capacitance measurement: No
Frequency measurement: No
Power measurement: No
Leakage current measurement: No
Harmonic measurement: No
Measurement in cables with live and return conductors: No
Clamp opening: 23 mm
Designed as an adapter for connection to multimeters: No
Interface: No
Measurement category: CAT III
Max. voltage measurement category: 600 V
Continuity test: No
Protection class (IP): IP30
Additional details:
Benning CM P2 True RMS Digital Clamp Meter.
4-digit LCD display (4200 counts).
With screen backlight.
Current measurement range/DC 0.01 A - 400 A.
Current measurement range/AC 0.01 A - 400 A.
Current type: DC/AC.
True RMS measurement: Yes.
Measurement range selection: Automatic.
Automatic shutdown: Yes.
Battery low voltage indication: Automatic.
Integrated NCV voltage sensor signals non-contact phase voltages and cable breaks in lines, visually and audibly.
Low-pass filter (LPF).
Momentary value hold function.
Zero adjustment.
Clamp opening: 23 mm.
Dimensions: Length 149 x Width 59 x Depth 28 mm.
Measurement category: CAT III.
Max. voltage measurement category: 600 V.
Includes carrying case and 2 x 1.5 V Micro/AAA/LR03 battery.
EAN: 4014651446793.
8. Benning voltage tester
The Duspol voltage tester from Benning displays the measurement result via LED indicator levels from 12 to 1000 volts. The result of the polarity test is also shown through LEDs. A push button allows for the activation of a load switching and a residual current device (RCD) trip. Phase rotation testing is possible and is indicated on the LCD by the symbol "R".
9. Benning VT 1 Battery voltage tester
Benning VT 1 - Non-contact phase and cable break tester for quick and easy phase testing on sockets, junction boxes, switches, and lamps. It locates cable breaks and defective lamps in light chains and insulated lines.
Features:
- Non-contact testing, no contact with the electrical conductor required
- Phase testing (outer conductor) on earthed sockets, junction boxes, and circuit breakers via red LED test tip and signal tone
- Detection of cable breaks in insulated and live lines, such as on cable reels and light chains
- Voltage range: 200 V - 1000 V AC
- Flashing frequency of the LED test probe and signal tone frequency increase with the voltage level
- Capacitive measuring method requires no current flow
- Highest overvoltage category: CAT IV 600 V
- Easy-to-open battery compartment via robust screw cap
- Automatic switch-off
- Impact-resistant and break-proof ABS housing.
10. Benning 044104
The Benning IT 115 is a state-of-the-art handheld multimeter specifically designed for testing electrical systems. It meets the requirements of DIN VDE 0100-600, IEC 60364-6, DIN VDE 0105-100, and EN 50110. With its graphical display and backlighting, it offers a user-friendly interface that is easily readable even in low light conditions. The device supports a wide range of measurements, including insulation resistance, low resistance measurement, and earth measurement, and is capable of delivering precise results across a broad voltage range. The integrated help function with connection diagram simplifies usage and ensures efficient operation. The IT 115 is an indispensable tool for professionals working in electrical installation who demand the highest standards of measurement accuracy.
- True RMS measurement for precise results
- Graphical display with backlighting and help function
- Extensive testing options for RCD/ELCB protection switches
- Earth measurement using the 3-wire method
- Calibration to factory standards with certificate.
