Best Wago products in the Energy monitors category
On this page you'll find a ranking of the best Wago products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

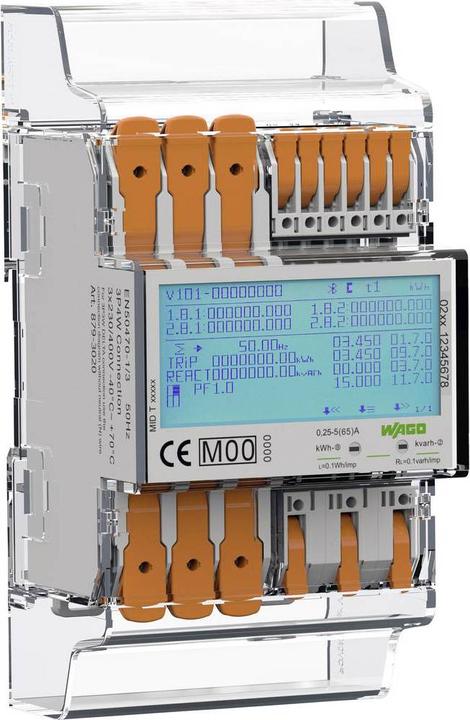

1. Wago 879-3040 Three-phase meter MID-compliant: Yes 1pce.
To optimize energy consumption, comprehensive energy measurement is necessary. WAGO now offers new energy meters in its portfolio that provide numerous advantages. They utilize push-in connection technology with levers, making them very easy and time-saving to connect. The devices have a width of only 35 mm in the version for current transformers, saving users a significant amount of space in the control cabinet. In addition to measuring active and reactive energy, the energy meters also capture network frequency as well as current, voltage, and power for all phases.
2. Wago Alternating current meter
To optimize energy consumption, comprehensive energy measurement is essential. Wago now offers new energy meters in its portfolio that provide numerous advantages. They utilize push-in connection technology with a lever, making them very easy and time-saving to connect. The devices have a width of only 72 mm for direct measurement, allowing users to save a significant amount of space in the control cabinet. In addition to measuring active and reactive power, the energy meters also capture network frequency, as well as current, voltage, and power for all phases. The large illuminated display allows users to see all energy quality characteristics at a glance.
3. Wago Energy meter (MID)
Energy Meter (MID). To optimize energy consumption, comprehensive energy measurement is necessary. Wago now offers new energy meters in its portfolio that provide numerous advantages. They utilize push-in connection technology with a lever, making them very easy and time-saving to connect. The devices have a width of only 72 mm for direct measurement, saving users a significant amount of space in the control cabinet. In addition to measuring active and reactive energy, the energy meters also capture network frequency, as well as current, voltage, and power for all phases. The large illuminated display allows users to see all energy quality characteristics at a glance. The new energy meters are true communication professionals. All devices feature both an M-Bus and a Modbus interface, which users can choose to use. Additionally, two S0 interfaces are available for both energy directions, with adjustable pulse rates. The configuration and operation of the new meters are very straightforward: the large display facilitates operation through the integrated sensitive controls. Furthermore, a configuration app can be used, which communicates with the device via Bluetooth. With the new energy measurement devices, a wide range of applications can be realized in building technology or industry - the MID compliance declaration also allows for applications involving consumption billing.
4. Wago 1 channel high speed counter 24VDC
The 1-channel high-speed counter from Wago is a versatile device specifically designed for capturing binary pulses of 24 VDC. This counter allows for precise monitoring and documentation of counter readings in an installed bus system. With the forward and reverse counting function controlled via the U/D (Up/Down) input, the device offers flexibility in application. The digital outputs DO 1 and DO 2 can be configured using a control byte, enabling customized adjustment of counter functions. Additionally, the counter can be both set and reset, simplifying operation. A counter lock is also implemented to prevent unwanted changes. With its robust design and the option for mounting on a DIN rail, this counter is ideal for use in industrial applications.
- Captures binary pulses of 24 VDC
- Forward and reverse counting function via U/D input
- Digital outputs DO 1 and DO 2 configurable via control byte
- Setting and resetting of the counter possible
- Counter lock to prevent unwanted changes.

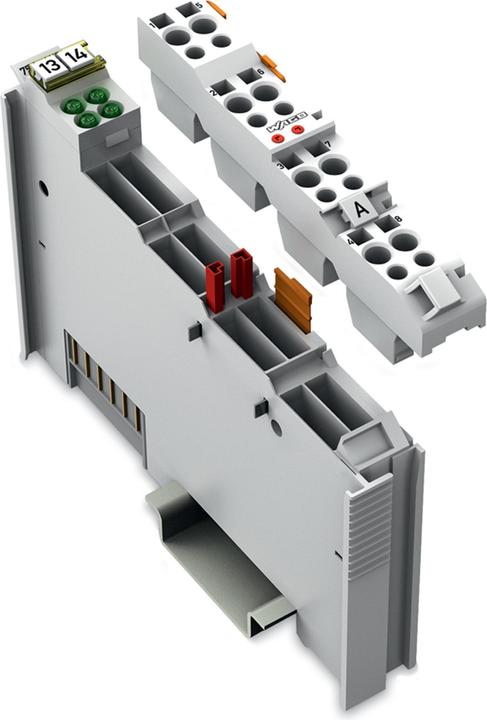

5. Wago 753-482
2-channel analog input 4-20 mA HART. The analog input module is designed to power the field-mounted transmitters and to transmit analog measurement signals galvanically isolated to the bus system. The supply voltage of 24 V is fed through the power contacts for the field. The shield connection is directly routed to the mounting rail. The overload protection switches the measurement input to a high-resistance state at a current of approximately 25 mA. The high-resistance state is automatically reset when returning to the normal measurement range. This module provides the power supply for 2-wire transmitters that do not have their own power supply. Up to 4 HART secondary variables (PV, SV, TV, QV) can be integrated into the cyclic process image of the coupler or controller per channel (configurable). For HART communication with connected intelligent HART field devices, the HART protocol can be integrated into the cyclic process image of the coupler or controller (configurable). For some programmable couplers, FDT/DTM device drivers are available, allowing HART tool routing to the connected HART device.
6. Wago Up/down counter DC 24 V, 100 kHz 753-404 24 V/DC Content: 1 unit (753-404)
The Wago DC 24 V forward/reverse counter is a highly advanced device for capturing binary pulses. With a nominal voltage of 24 V and a maximum frequency of 100 kHz, this counter is ideal for applications that require precise counting. The counter allows for easy switching between forward and reverse counting via the U/D (Up/Down) input. The captured counter values are reliably transmitted to the installed bus system. Additionally, the counter offers digital outputs that can be configured via a control byte, enabling flexible adaptation to various applications. The ability to set and reset the counter, along with the counter lock function, enhances the user-friendliness and safety of the device. With its compact design and IP20 protection rating, the counter is suitable for use in various industrial environments.
- Capture of binary pulses with a frequency of up to 100 kHz
- Easy switching between forward and reverse counting
- Digital outputs configurable via control byte
- Counter lock function for increased safety.
Energy monitors
CHF316.–
Wago Up/down counter DC 24 V, 100 kHz 753-404 24 V/DC Content: 1 unit (753-404)

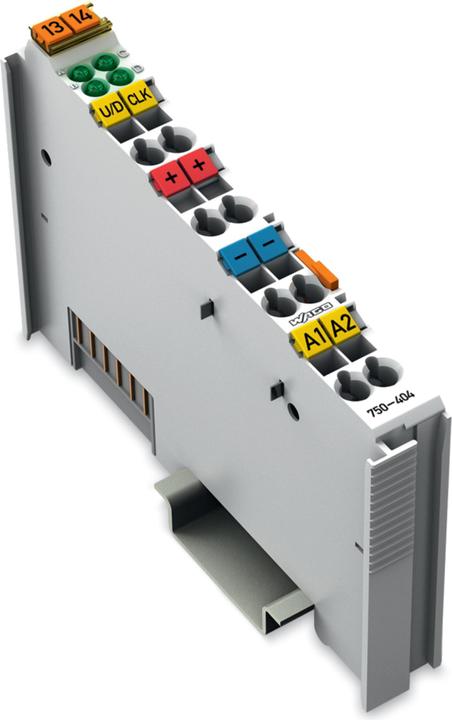

7. Wago 750-404/000-004
The Wago 750-404/000-004 is a versatile forward and reverse counter specifically designed for capturing binary pulses of 24 V. This digital current meter allows for seamless integration into existing bus systems, enabling efficient transmission of the counter reading. A standout feature is the ability to switch between forward and reverse counting via the U/D input (Up/Down). The digital outputs DO 1 and DO 2 can be flexibly activated based on the current counter reading or through a control byte. Additionally, the counter offers functions for setting and resetting the counter value, as well as the option for a counter lock, making it a reliable choice for various applications in automation technology.
- Captures binary pulses of 24 V
- Switches between forward and reverse counting via U/D input
- Activates digital outputs DO 1 and DO 2 based on the counter reading
- Functions for setting, resetting, and counter lock.

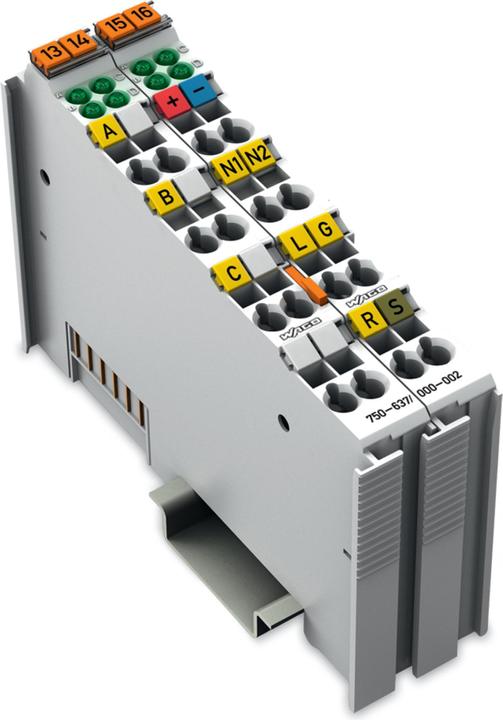

8. Wago 750-637/000-002
Incremental Encoder Interface; DC 24 V; Single-Ended; 32 Bit
The bus terminal provides an interface for various incremental encoders with different connections.
A counter with a quadrature decoder and a latch for the zero pulse can be read and activated by the controller. The controller can set the counter. Depending on the operating mode, when a positive edge occurs at the "C" or "Latch" input, the counter value is transferred to the latch register, and the counter is initialized.
The speed (increments/ms) is automatically captured and can alternatively be transmitted to the controller instead of the latch value.
The "Gate" input allows the counter to be locked. The "Ref" input can be used to activate the function of the zero mark "C".
Through the cam outputs (N1, N2), the bus terminal signals whether the counter value is within defined windows. The window areas can be individually adjusted.
The bus terminals require a supply voltage of DC 24 V, from which the power supply for the encoder (Ue, U0) is also derived.
The shield connection is directly routed to the mounting rail.

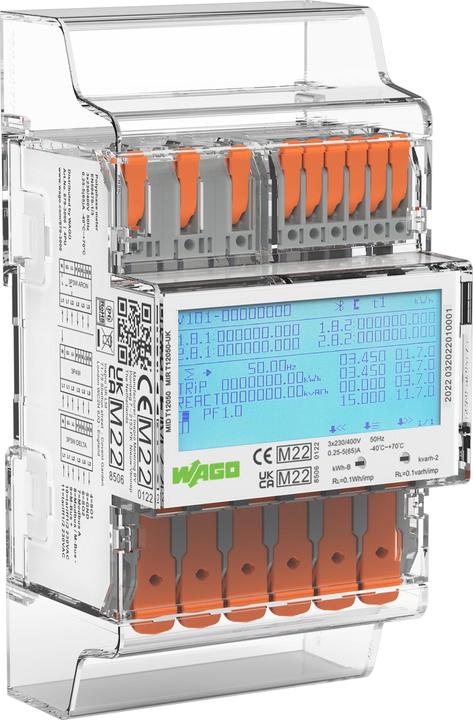

9. Wago Energy consumption meter
Energy Meter MID, for direct connection, 65A, 3x230/400V, 50Hz, Modbus and M-Bus, S0 interface, 4PU
Short description:
To optimize energy consumption, comprehensive energy measurement is necessary. WAGO has introduced new energy meters in its portfolio that offer numerous advantages. They utilize push-in connection technology with a lever, making them very easy and time-saving to connect. The devices have a width of only 72 mm for direct measurement, saving users a significant amount of space in the control cabinet. In addition to measuring active and reactive energy, the energy meters also capture network frequency as well as current, voltage, and power for all phases. The large illuminated display allows users to see all energy quality characteristics at a glance.
Features:
- Time savings at all levels thanks to Push-in CAGE CLAMP and lever
- Real space savings: 72 mm wide
- Communication expert: M-Bus and Modbus interfaces and 2 S0 pulse outputs
- Full transparency at a glance: Display of energy quality characteristics on a backlit full-format display
- Intuitive configuration: Sensitive control elements and configuration app via Bluetooth.

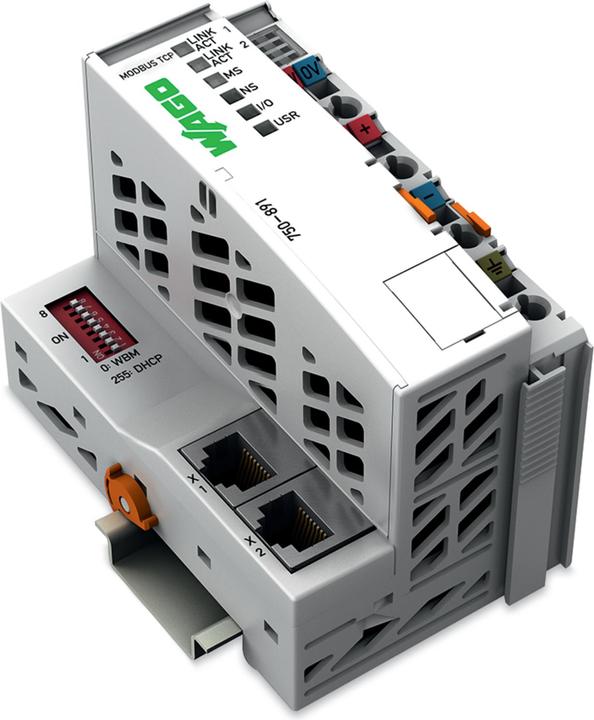

10. Wago 750-891 - Modbus Cotroller TCP 4th Generation 2x ETHERNE light grey
Modbus TCP Controller, 4th Generation, 2 x Ethernet. In conjunction with the WAGO I/O system, the Modbus TCP controller can be used as a programmable controller in Ethernet networks. The controller recognizes the plugged I/O modules and creates a local process image from them. This can involve a mixed arrangement of analog (word-wise data exchange) and digital (bit-wise data exchange) modules. The two Ethernet interfaces and the integrated switch enable the wiring of the fieldbus in a line topology, eliminating the need for additional infrastructure elements such as switches or hubs. Both interfaces support autonegotiation and Auto-MDI(X). The DIP switch allows for the configuration of the last byte of the IP address as well as the reference of the IP address. The controller is suitable for fieldbus communication in Modbus networks. Additionally, a variety of standardized Ethernet protocols are supported (HTTP(S), BootP, DHCP, DNS, SNTP, (S)FTP, SNMP). An integrated web server provides the user with configuration options and status information of the controller. The device is programmable according to IEC 61131-3, supports multitasking, and features a buffered real-time clock.
