Best selling Energy monitors from Siemens
On this page you'll find a ranking of the best Siemens products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Siemens Logo 230RCE
Logo! 230RCE, logic module, display SVEA: 115V 230V relay, DE4 DA, SP. 400 blocks, modularly expandable, Ethernet, integrated web server, data logging, custom web pages, standard microSD card for Logo! Soft Comfort from V8.4, older projects executable, cloud connectivity, MQTT in all Logo! 8.4 basic devices. The Logo! basic devices with digital inputs and outputs and their compact installation width of 72 mm integrate many well-known functions such as pulse relays, stairwell timers, auxiliary relays, time relays, etc., which can be combined in various ways. Switching programs can be easily created and simulated on a PC. The integrated Ethernet interface allows communication with up to nine Logo! modules or SIMATIC S7 systems. With the also integrated web server, connected consumers can be monitored and controlled via WLAN or the Internet. Users can design the web pages themselves, even without HTML knowledge. Additional modules enable GSM or GPS communication as well as integration into a KNX building management system. Logo! basic devices are available with and without displays for various input voltages and with transistor or relay outputs up to 10 rated current. Expandable with additional modules to up to 24 DI, 20 DQ, 8 AI, 8 AQ. Integrated cloud communication. Logo! can also be expanded with an external text display for clear text messages. The background color is selectable for visual highlights. Various Logo! power modules for power supply are also available.
2. Siemens Sentron Mid
The Siemens SENTRON MID converter terminal measuring device 7KM PAC2200 is a highly advanced measuring instrument designed for the precise capture of energy consumption in single-phase and three-phase networks. This device is ideally suited for use in industrial facilities, commercial buildings, offices, and multi-family homes, particularly for billing purposes. With a rated voltage of 400 V (L-L) and 230 V (L-N) as well as a maximum current of 5 A, the 7KM PAC2200 provides reliable and reproducible measurements of apparent, active, and reactive power. The integrated digital display allows for easy reading of measurement values. Thanks to its various communication interfaces, including Modbus TCP, PROFINET, Modbus RTU, and M-Bus, the device can be easily integrated into existing automation and energy management systems. The MID certification ensures the accuracy and reliability of the measurements, making it a valuable component for monitoring and analyzing energy consumption.
- MID certified for accurate billing
- Energy measurement for single-phase and three-phase networks
- Various communication interfaces for easy integration
- Digital display for clear readability of measurement values
- Self-powered and suitable for mounting on a DIN rail.
3. Siemens Sentron Mid PAC2200
Meter, measuring device with LAN/IP, 65A direct measurement. Measuring transformer as DIN rail device three-phase, Modbus TCP and MID, LCD. Measurement of apparent / active / reactive energy. L-L: 400 V, L-N: 230 V, operating current 65 A, self-supplied. Main circuit operating frequency min. 45 Hz and max. 65 Hz. Short-term overload current 65 A. With screw connection.
4. Siemens Messgerät

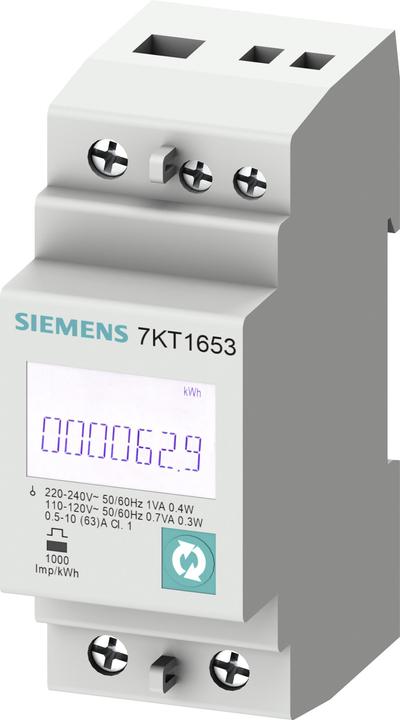

Sentron 7KT PAC1600 energy meters for calibrated measurement of energy consumption in single-phase and three-phase networks, e.g. in industrial plants, functional buildings, offices and flats in apartment blocks, for billing purposes. The MID-calibrated 7KT PAC1600 energy measuring devices precisely, reproducibly and reliably record the energy values for the infeed, electrical outgoing circuits or individual consumers via transformer or direct measurement up to 80 A (3-phase) and up to 63 A (1-phase). They not only provide comprehensive information about your electrical installation and energy distribution, but also important measured values for assessing the condition of the system. Thanks to their wide range of communication options, the devices can be easily integrated into higher-level automation and energy management systems via Modbus RTU, M-Bus or S0 interface for further processing of the measurement data.
5. Siemens PAC1600: 1 phasig 63A, Mbus
Sentron measuring device 7KT PAC1600, LCD, L-N: 230 V, 63 A, DIN rail device, single-phase, M-Bus, apparent/active/reactive power, self-powered, screw connection. The Sentron 7KT PAC1600 energy meter is designed for measuring energy consumption in single-phase and three-phase networks, such as in industrial facilities, purpose-built buildings, offices, and apartments in multi-family homes. The 7KT PAC1600 energy meters accurately, reproducibly, and reliably capture energy values for feed-in, electrical outputs, or individual consumers through transformer or direct measurement up to 80 A (three-phase) and up to 63 A (single-phase). They provide comprehensive information about your electrical installation and energy distribution, as well as important measurement values for assessing the condition of the system. For further processing of the measurement data, the devices can be easily integrated into higher-level automation and energy management systems through their various communication options, including Modbus RTU, M-Bus, or S0 interface. The 7KT PAC energy meters are available in different variants to suit the scope of your requirements. Sentron PAC - specialists in measurement data acquisition.
6. Siemens Energy cost meter
There are specific requirements for the measuring technology in this case. A third-party supply occurs when your company provides electricity for final consumption to another natural or legal person. This includes, for example, electricity consumption in rented premises, construction electricity, or a managed cafeteria. Leased devices such as vending machines, printers/copiers, or rented IT infrastructure are also considered third-party consumers.
Without self-supply – PAC2200 MID: Without self-supply, the recording and allocation of electrical active power (kWh) can be adequately performed with a MID-certified measuring device, the PAC2200 MID. The accrued shares of self-consumption and third-party consumption can be balanced and reported annually.
With self-supply – PAC2200 CLP: If you also consume self-generated electricity for which you pay a reduced EEG levy, a quarter-hourly measurement must ensure the simultaneity between self-generated and consumed energy by recording the active power (kWh) in 15-minute intervals and synchronizing with the legal time. The PAC2200 CLP (Certified Load Profile) supports this by generating the active power intervals in accordance with legal metrology and storing them for 2 years.
7. Siemens PAC1600: 1 phasig 63A, Modbus, MID
SENTRON measuring device 7KT PAC1600, LCD, L-N: 230 V, 63 A, DIN rail device, single-phase, Modbus RTU/ASCII + MID, apparent / active / reactive power, self-powered, screw connection. The SENTRON 7KT PAC1600 energy meter is suitable for calibrated measurement of energy consumption in single-phase and three-phase networks, for example in industrial plants, utility buildings, offices, and apartments in multi-family homes, for billing purposes. The MID-compliant energy measuring devices 7KT PAC1600 accurately, reproducibly, and reliably capture energy values for feed-in, electrical outputs, or individual consumers via transformer or direct measurement up to 80 A (three-phase) and up to 63 A (single-phase). They not only provide comprehensive information about your electrical installation and energy distribution but also important measurements for assessing the condition of the system. For further processing of the measurement data, the devices can be easily integrated into higher-level automation and energy management systems through their various communication options, including Modbus RTU, M-Bus, or S0 interface. The 7KT PAC energy meters are available in different variants to suit the scope of your requirements. SENTRON PAC - specialists in measurement data acquisition.
8. Siemens SENTRON PAC2200 DIN rail power monitorin
SENTRON measuring device 7KM PAC2200, LCD, L-L: 400 V, L-N: 230 V, 5 A, DIN rail device, 3-phase, M-Bus + MID, apparent/active/reactive power, self-powered, screw connection. The SENTRON 7KM PAC2200 energy meter is suitable for calibrated measurement of energy consumption in single-phase and three-phase networks, for example in industrial plants, utility buildings, offices, and apartments in multi-family homes, for billing purposes. The MID-compliant energy measuring devices 7KM PAC 2200 accurately, reproducibly, and reliably capture energy values for feed-in, electrical outputs, or individual consumers through transformer or direct measurement up to 65 A. They provide comprehensive information about your electrical installation and energy distribution, as well as important measurement values for assessing the condition of the system. For further processing of the measurement data, the devices can be easily integrated into higher-level automation and energy management systems via their various communication options, including Modbus TCP, PROFINET, Modbus RTU, and M-Bus. The 7KM PAC measuring devices are available in various versions to suit the scope of your requirements. SENTRON PAC - specialists in measurement data acquisition.
9. Siemens Combination meter A/Q/Hz/V/P 7KM1020-0BA01-1DA0
SENTRON PAC1020 96x96 mm Power Monitoring Device. Panel-mounted device for measuring electrical parameters. Protocol: Modbus RTU. With graphical display. Rated voltage max: 400/230V, 45-65Hz. Rated current: X/5A AC. Auxiliary power: 85V - 276V AC. Screw terminal connection. The multifunction measuring device SENTRON 7KM PAC1020 is designed for measuring energy consumption in single-phase and three-phase networks, such as in industrial facilities, purpose-built buildings, offices, and apartments in multi-family homes. The basic measuring device 7KM PAC1020 accurately, reproducibly, and reliably captures energy values for feed-in, electrical branches, or individual consumers. It provides comprehensive information about your electrical installation and energy distribution, as well as important measurements for assessing the condition of the system. For further processing of the measurement data, the device can be easily integrated into higher-level automation and energy management systems via serial MODBUS RTU communication. The 7KM PAC measuring devices are available in various versions to suit the scope of your requirements. If the front panel sheet thickness is below 1 mm or above 2 mm, you will need to purchase the corresponding compact holder separately. SENTRON PAC - specialists in measurement data acquisition.
10. Siemens Sentron
SENTRON Measuring Device 7KM PAC2200 CLP L-L: 400V, L-N: 230V, x/1A & x/5A DIN rail device, 6TE, 3-phase, LAN interface, Modbus-TCP, LC display, MID approval, screw connection, self-powered. Certified apparent/active/reactive energy load profile storage, measurement and calibration law compliant according to PTB-A50.7.
The SENTRON 7KM PAC2200 energy meter is designed for calibrated measurement of energy consumption in single-phase and three-phase networks, such as in industrial facilities, utility buildings, offices, and apartments in multi-family homes, for billing purposes with a certified load profile (calibration law compliant according to PTB-A50.7).
The energy measuring devices 7KM PAC 2200, calibrated according to MID and PTB 50.7 (CLP), with extended functionality, accurately, reproducibly, and reliably capture energy values for feed-in, electrical outputs, or individual consumers via transformer or direct measurement up to 65 A. They provide not only comprehensive information about your electrical installation and energy distribution but also important measurements for assessing the condition of the system.
For further processing of the measurement data, the devices can be easily integrated into higher-level automation and energy management systems via Modbus TCP and PROFINET due to their diverse communication options. The 7KM PAC measuring devices are available in various versions to meet the scope of your requirements. SENTRON PAC - specialists in measurement data acquisition.
