Best ABB products in the Energy monitors category
On this page you'll find a ranking of the best ABB products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. ABB Three-phase energy meter B24-212-600 Measuring transformer
The ABB three-phase energy meter B24-212-600 is a highly advanced energy measuring device designed for the precise capture of electrical energy quantities in three-phase systems. This device is ideal for applications where accurate monitoring of energy consumption is required. The meter provides comprehensive measurements of active energy, reactive energy, voltage, and current, making it a versatile tool for energy monitoring. With an integrated Modbus RS-485 interface, the meter allows for easy integration into existing systems and data transmission for efficient analysis. The B24-212-600 is designed for mounting on a DIN rail and meets the stringent requirements of METAS, MID, and IEC standards, underscoring its reliability and accuracy.
- Three-phase 4-quadrant measurement for comprehensive energy monitoring
- Integrated Modbus RS-485 interface for easy data communication
- Tested and approved according to METAS, MID, and IEC standards
- Display of active, reactive, and apparent energy
- Pulse and alarm output for additional functionality.
2. ABB Alternating current meter B23 212-100 Bronze
ABB Stotz S&J Three-Phase Meter B23 212-100
Manufacturer: ABB Stotz S&J
Designation: Three-Phase Meter Direct Connection 65A
Type: B23 212-100
Meter Type: electronic
Rated Current (In): 65 A
Maximum Current (Imax): 65 A
Rated Voltage (Un) N-L: 220..240 V
Rated Voltage (Un) L-L: 380..415 V
Frequency: 50..60 Hz
Accuracy Class: B
Number of Phases: Four-Wire
Design: Direct Measurement
Energy Type: Active and Reactive Power
Suitable for: Consumption/Supply
Tariff Type: Single Tariff
Load Profile Measurement: no
Reverse Lock: yes
Calibrated: yes
Approval: Measuring Instruments Directive
Pulse Output: electrical
Pulse Type: S0
Pulse Rate: 1..999999 Imp/kWh (kvarh)
Display Type: digital
Mounting Type: REG
Width in Division Units: 4
Width: 70 mm
Depth: 65 mm
Height: 26.5 mm
Interface Design: other
EDL40 Signature: no
With Lock Code: no
Number of Digits: 7
Protection Class (IP): IP20
Protection Class (NEMA): other
ABB Stotz S&J Three-Phase Meter B23 212-100: additional details
Three-phase meter for measuring a three-wire or four-wire three-phase network via a direct connection up to a maximum of 65 A. The following values are displayed on a white backlit display with up to 7 digits: active energy (Class 1) and reactive energy (Class 2) for import and export, power, currents, voltages (L-L, L-N), frequency, cos phi, power factor, and apparent power, both per phase and total. Communication can be established via the integrated RS485 interface (Modbus RTU) or through the infrared interface for connecting a KNX module. The energy meter has a pulse output. The meter is calibrated according to MID and approved according to IEC. The installation width is 4 DIN modules.
3. ABB 11T G2
ABB's PowerValue 11 T G2 is a single-phase online UPS with double conversion that ensures up to 10 kW of clean, reliable power for your critical single-phase applications. In addition to providing secure power supply for your servers, digital signage, turnstiles, laboratory equipment, traffic signal systems, and cash and vending machines, the PowerValue 11 T G2 also conditions the incoming power to eliminate voltage spikes, sags, noise, and harmonics. Equipped with a voltage and frequency independent (VFI) topology, the PowerValue 11 T G2 saves costs by minimizing energy losses with a double conversion efficiency of up to 95% (up to 98% in ECO mode). Two or three units can be connected in parallel to create redundancy or increase power output to up to 30 kW. Easy to install, maintain, and operate, and with the smallest footprint of any online UPS available on the market, the PowerValue 11 T G2 provides stable, regulated, disturbance-free, pure sine wave AC power with extremely tight output voltage regulation. All units can be equipped for extended runtime of over two hours with up to four external battery modules (EBM), each assigned to its corresponding UPS. Simple setup is done via the LCD menu.
4. ABB Measuring transformer meter
ABB Stotz S&J Measuring Transformer Meter A44 111-100
Manufacturer: ABB Stotz S&J
Designation: Measuring Transformer Meter
Type: A44 111-100
Meter Type: electronic
Rated Current (In): 1 A
Maximum Current (Imax): 6 A
Rated Voltage (Un) N-L: 57.7..288 V
Rated Voltage (Un) L-L: 100..500 V
Frequency: 50..60 Hz
Accuracy Class: B
Connection Type: Four-wire
Design: Measuring Transformer
Energy Type: Active Power
Suitable for: Consumption
Tariff Type: Single tariff
Load Profile Measurement: no
Reverse Prevention: yes
Calibrated: yes
Approval: Measuring Instruments Directive
Pulse Output: electrical
Pulse Type: S0
Pulse Rate: 1..999999 Imp/kWh (kvarh)
Display Type: digital
Mounting Type: REG
Width in Division Units: 7
Width: 123 mm
Depth: 65 mm
Height: 97 mm
Interface Design: other
EDL40 Signature: no
With Lock Code: no
Number of Digits: 7
Protection Class (IP): IP20
Protection Class (NEMA): other
Three-phase meter for measuring a three-wire or four-wire three-phase network via a transformer connection CTVT (transformer ratio for current and voltage configurable) up to a maximum of 6 A. The following values are displayed on a white backlit display with up to 7 digits: active energy (Class 1), power, currents, voltages (L-L, L-N), frequency, and power factor, both per phase and total. Communication can be established via the infrared interface for connecting a KNX module. The energy meter has an output that can be used either as a pulse output for active energy or as an alarm output. Up to 25 alarm values (thresholds with time delay) can be set. The meter is calibrated according to MID and approved according to IEC. The installation width is 7 DIN modules.
5. ABB MID Energy meter, B21 112 series
Display type: LCD
Number of digits: 6
Number of phases: 1
Pulse output: Yes
Depth: 65 mm
Accuracy: Class 1 %
Min. temperature: -40 °C
Max. temperature: +70 °C
Type of measuring device: Electromechanical
ABB Energy Meter B21, single-phase, Steel-Level. The B series is a basic meter product for systems up to 65 A for direct connection or connection via transformer (CT). Meters in this series are high-performance meters for many applications and systems. Navigation with the meter is very simple using the push buttons below the display. Data from B series meters can be captured via a pulse output or serial communication. All meters come with an infrared connection for communication with an external serial communication adapter (SCA) such as the KNX adapter. B21 – Single-phase energy meter, 65 A – 2 DIN widths with IR connection – Directly connected energy meter – Measurement values – Alarm function. Features (Steel-Level): Active power. New update: With a new update for all measuring devices in the B series, these devices can be used and set up more intuitively. This includes an updated user interface that requires fewer clicks for configuration, thus reducing time and costs for the installer. Fewer clicks to configure the most common settings, fewer steps to set the pulse output, easier to read and understand text, alarms are inactive by default.
6. ABB TRFM/40
7. ABB XR-1-CONNECTION.3PH

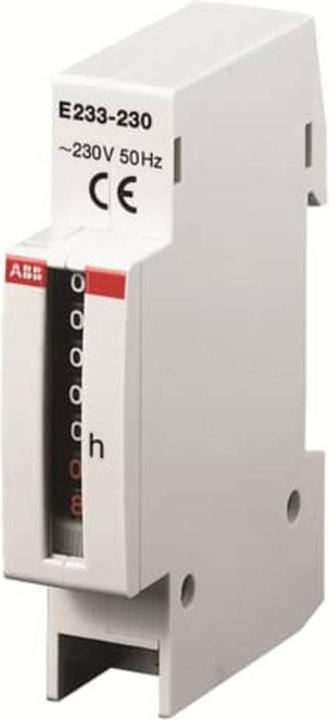

8. ABB Operating hours counter DRB7 E233-230
Operating hour counters are used to record operating times, determine idle times, and track downtime of machines and equipment, for commercial purposes or in home installations. Without reset function.
Type: E233-230
Operating hour counter HMT, E233 operating hour counter.
9. ABB Three-phase meter MID calibrated
ABB Stotz S&J Three-Phase Meter B23 113-100
Manufacturer: ABB Stotz S&J
Designation: Three-Phase Meter M-Bus
Type: B23 113-100
Meter Type: Electronic
Rated Current (In): 5 A
Maximum Current (Imax): 65 A
Rated Voltage (Un) N-L: 220..240 V
Rated Voltage (Un) L-L: 380..415 V
Frequency: 50..60 Hz
Accuracy Class: B
Polarity: Four-Wire
Design: Direct Measurement
Energy Type: Active Power
Suitable for: Consumption
Tariff Type: Single Tariff
Load Profile Measurement: No
Reverse Lock: Yes
Calibrated: Yes
Approval: Measuring Instruments Directive
Pulse Output: Electrical
Pulse Type: S0
Pulse Rate: 1..999999 Imp/kWh (kvarh)
Display Type: Digital
Mounting Type: REG
Width in Division Units: 4
Width: 70 mm
Depth: 65 mm
Height: 97 mm
Interface Design: M-Bus
EDL40 Signature: No
With Lock Code: No
Number of Digits: 7
Protection Class (IP): IP20
Protection Class (NEMA): Other
Three-phase meter for measuring a three-wire or four-wire three-phase network via a direct connection up to a maximum of 65 A. The following values are displayed on a seven-segment display with up to 7 digits: Active Energy (Class 1), Power, Currents, Voltages (L-L, L-N), and Frequency, both per phase and total. Communication can occur via the integrated M-Bus interface or through the infrared interface for connecting a KNX module. The energy meter has an output that can be used either as a pulse output for active energy or as an alarm output. Up to 25 alarm values (thresholds with time delay) can be set. The meter is calibrated according to MID and approved according to IEC. The installation width is 4 DIN modules.
Delivered: ABB Stotz S&J Three-Phase Meter M-Bus B23 113-100, packaging unit: 1 piece.

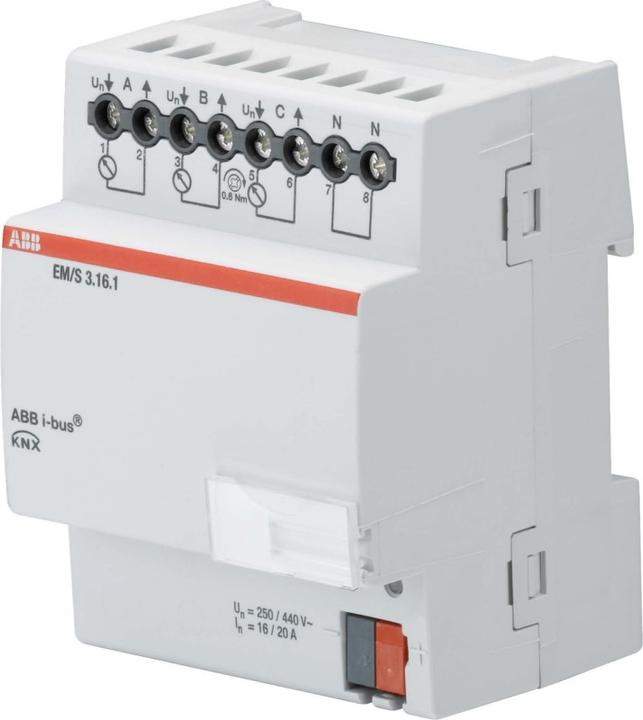

10. ABB EM/S3.16.1 Energy module, EM/S3.16.1 3F, 16/20A, REG
The energy module is used to measure energy consumption and various electrical parameters in the final circuit. Active power, current, voltage, and frequency can be monitored through threshold values, and load peaks can be limited through simple load control. The recorded values are made available via ABB i-bus KNX.
Type: EM/S3.16.1
Energy modules and actuators energy meters.
