Best Hoffman products in the Electrical enclosures category
On this page you'll find a ranking of the best Hoffman products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

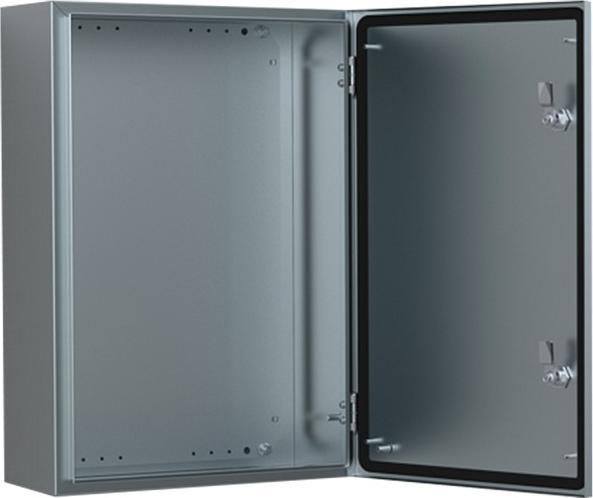

1. Hoffman ASR0302015, 200 mm, 150 mm, 300 mm
The nVent Hoffman wall-mounted enclosure ASR0302015 is a compact and robust cabinet designed for wall installation. With dimensions of 300 mm in height, 200 mm in width, and 150 mm in depth, this enclosure provides ample space for housing electrical components. Made from high-quality stainless steel (304 stainless steel), it ensures high resistance to corrosion and weather influences, making it ideal for outdoor use. The IP66 protection rating guarantees that the enclosure is dust-tight and protected against powerful water jets. The enclosure features a door and a depth-adjustable mounting plate, allowing for flexible installation of components. It is not suitable for in-wall installation and does not provide visibility or ventilation doors, which enhances the safety of the installed devices.
- Made from stainless steel (304 stainless steel) for high corrosion resistance
- IP66 protection rating for optimal dust and water protection
- Single-door design with one door for easy access
- Depth-adjustable mounting plate for flexible installation
- Suitable for outdoor installation, ideal for harsh environments.

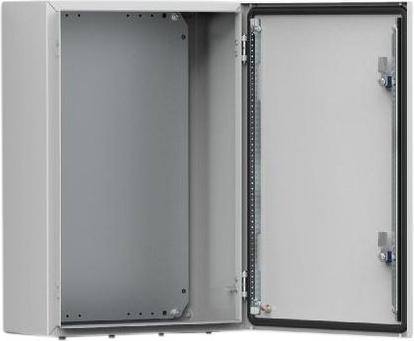

2. Hoffman Vaegskab 600x400x300
NVent Hoffman wall-mounted enclosure MAS0604030R5
Manufacturer: nVent Hoffman
Designation: Wall-mounted enclosure
Dimensions: 600 x 400 x 300 mm
Type: MAS0604030R5
Width: 400 mm
Height: 600 mm
Depth: 300 mm
Material: Steel
Material grade: Other
Finish: Powder-coated
Colour: Grey
RAL number: 7035
Suitable for wall mounting: Yes
With mounting plate: Yes
Mounting plate depth adjustable: Yes
Pole mounting: No
Number of doors: 1
Number of locks: 2
Suitable for metric mounting: No
Suitable for outdoor installation: No
Pitched roof: No
EMC version: No
With viewing door: No
With ventilation door: No
With rear door: No
Impact resistance: IK10
Protection class (IP): IP66
Protection class (NEMA): 4
The MAS range of single-door sheet steel wall-mounted enclosures with IP 66 protection is available in a wide range of sizes ready for use. This enclosure range is well suited for many different applications. The risk of component failure and associated unnecessary downtime is avoided as water and dust cannot penetrate the enclosure.

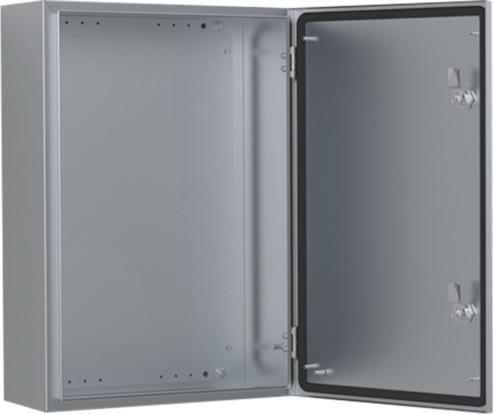

3. Hoffman ASR0403021, 300 mm, 210 mm, 400 mm
The ASR0403021 wall-mounted enclosure from nVent Hoffman is a compact control cabinet designed for wall installation. With a height of 400 mm, a width of 300 mm, and a depth of 210 mm, this enclosure provides ample space for housing electrical components. Made from stainless steel (Stainless Steel 304), it ensures high resistance to corrosion and weather influences, making it ideal for outdoor use. The IP66 protection rating guarantees that the enclosure is dust-tight and protected against powerful water jets. The enclosure features a single-door design and is equipped with a depth-adjustable mounting plate that allows for flexible installation of components. This product is particularly suitable for applications where a high degree of protection and robustness are required.
- Made from stainless steel (Stainless Steel 304) for enhanced corrosion resistance
- IP66 protection rating for optimal protection against dust and water
- Single-door design with a depth-adjustable mounting plate
- Suitable for outdoor installation, ideal for harsh environments.
4. Hoffman ELDON Vaegskab, 300x250x155, Skab 1-dørs, med montageplade, lakeret stål, IP66
The ELDON wall cabinet is a robust wall-mounted enclosure specifically designed for the secure storage of electrical components. With a compact size of 300x250x155 mm, it provides ample space for various applications. The enclosure is made from high-quality construction steel and is painted in a light gray color (RAL 7035), which not only gives it an appealing appearance but also supports the product's durability. The IP66 protection rating ensures that the enclosure is dust-tight and protected against powerful water jets, making it ideal for use in demanding environments. The door of the enclosure opens up to 130 degrees and is equipped with a standard lock to ensure the security of the contained components. Additionally, grounding points are available on both the door and the enclosure, facilitating installation and operation.
- Grounding points on the door and enclosure for easy installation
- Door opening up to 130 degrees for better access
- One-piece polyurethane gasket for optimal protection
- Complete enclosure with mounting materials and plastic key
- UL listed and Nema classification 4, 12, 13.
Electrical enclosures
CHF100.24
Hoffman ELDON Vaegskab, 300x250x155, Skab 1-dørs, med montageplade, lakeret stål, IP66
5. Hoffman MAS1208030R5, 800 mm, 300 mm, 1200 mm, 62.1 kg
Body: Angled and seam-welded. To ensure air circulation behind the housing when wall-mounted, four depressions with a diameter of 20.4 mm and a depth of 2 mm are incorporated into the back panel, which contain 8.5 mm holes for wall mounting. Door: Surface-mounted, with a 130° opening angle, concealed and removable hinges for right or left-hand mounting and secured pins. The tightness is ensured by a continuously foamed polyurethane seal. Closure: Lock with double handle for easy door opening, 3 mm DIN double-bitted lock with a 90° closing angle, and a 3-point locking mechanism starting from a housing height of 1000 mm. Other lock inserts are available as accessories. The mounting plate has markings at a 10 mm distance for easy positioning of components. There are holes for cable fastening at the top and bottom. The mounting plate is attached to welded M8 bolts on the back of the housing, with all sides reinforced by bends. With the accessory kit, the mounting plate is continuously adjustable in depth. When installed outdoors, the installation of a rain canopy is recommended. Corrosion protection should also be considered. Delivery includes: complete housing with 2 door mounting profiles, flanges with seals and screws, plastic key DIN 3 mm, and mounting material. Grounding options.
6. Hoffman ELDON Vaegskab, 1000x600x260, Skab 1-dørs, med montageplade, lakeret stål, IP66
The ELDON Wall Cabinet is a compact distribution cabinet designed for wall mounting. With dimensions of 1000 mm in height, 600 mm in width, and 260 mm in depth, it offers ample space for housing electrical components. The cabinet is made from high-quality lined steel and features a robust construction. The IP66 protection rating ensures that the cabinet is dust-tight and protected against strong water jets, making it ideal for use in demanding environments. The internal mounting plate allows for easy installation and arrangement of electrical devices. The light gray color gives the cabinet a modern and professional appearance that seamlessly fits into various environments.
- IP66 protection rating for optimal protection against dust and water
- Single-door design with integrated mounting plate
- Made from durable construction steel for longevity
- UL certified and Nema classifications 4, 12, 13 for high safety standards.
Electrical enclosures
CHF362.–
Hoffman ELDON Vaegskab, 1000x600x260, Skab 1-dørs, med montageplade, lakeret stål, IP66
7. Hoffman ASR1008030, 800 mm, 300 mm, 1000 mm, 52.2 kg
The ASR1008030 distribution cabinet from Hoffman is a compact wall-mounted enclosure characterized by its robust dimensions of 1000 mm in height, 800 mm in width, and 300 mm in depth. Made from high-quality stainless steel 304, this single-door cabinet offers high resistance and durability, making it ideal for use in demanding environments. With an IP66 protection rating, the cabinet ensures effective protection against dust and water ingress, making it particularly suitable for industrial applications. The design of the enclosure allows for easy wall mounting and provides secure housing for electrical components. The use of stainless steel 304 as the material group contributes to corrosion resistance and ensures a long product lifespan. The ASR1008030 is thus a reliable solution for the installation and protection of electrical and electronic devices in various applications.

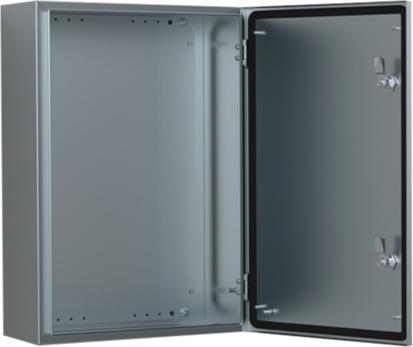

8. Hoffman ASR0504021, 400 mm, 210 mm, 500 mm
NVent Hoffman Wall-mounted enclosure, 500x400x210 ASR0504021 Manufacturer :nVent Hoffman Designation :Wall-mounted enclosure, 500x400x210 Type :ASR0504021 Width :400 mm Height :500 mm Depth :210 mm Material :Stainless steel Material grade :Stainless steel (V2A) Finish :untreated Colour :Stainless steel With mounting plate :yes Mounting plate depth adjustable :yes Suitable for wall mounting :no Pole mounting :no Number of doors :1 Number of locks :1 Suitable for outdoor installation :yes Pitched roof :no EMC version :no With viewing door :no With ventilation door :no With rear door :no Impact resistance :IK10 Protection class (IP) :IP66 Protection class (NEMA) :4X nVent Hoffman wall-mounted enclosure, 500x400x210 ASR0504021: further details Wall-mounted enclosure, 500x400x210, Compact enclosure, single door, with MP, stainless steel 304, IP66 , EAN: 8713574120426.
9. Hoffman MAS0403021R5, 300 mm, 210 mm, 400 mm, 8.62 kg, 1 piece(s)
The MAS series of steel sheet wall-mounted enclosures with one door and an IP 66 protection rating is available in many different sizes and ready for use. This enclosure series is well-suited for a variety of applications. The risk of component failure and the associated unnecessary downtime is avoided, as water and dust cannot penetrate the enclosure.
10. Hoffman MAS0806030R5, 600 mm, 300 mm, 800 mm, 33.6 kg, 1 piece(s)
The MAS series of steel sheet wall-mounted enclosures with one door and an IP 66 protection rating is available in many different sizes, ready for use. This enclosure series is well-suited for a variety of applications. The risk of component failure and the associated unnecessary downtime are avoided, as water and dust cannot penetrate the enclosure.
