Best somfy products in the Electric motors category
On this page you'll find a ranking of the best somfy products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. somfy Radio tubular motor set
Never crank again - thanks to the Somfy roller shutter complete set, you can easily retrofit your roller shutter with an electric radio drive. This complete set includes all the necessary products for retrofitting existing roller shutters with a maximum area of 5 m² and a roller shutter shaft SW60 (octagonal shaft with a diameter of 60 mm) - including all electrical and mechanical components for quick and easy installation. The retrofit offers high flexibility, less effort, and less mess, as no new cables need to be run between the drive and the switch for the installation of the Somfy radio roller shutter motor. Simply place the wall transmitter in a location that is optimal for you. You can easily add more products at any time without additional renovations: for example, in combination with the Somfy sun sensor, you can prevent your living spaces from overheating. With the Somfy Smart Home solution TaHoma Switch, you can also have your roller shutters automatically open and close at a specific time, even in your absence.
According to crime statistics, burglars give up their break-in attempts after about three to five minutes. The risk of being caught increases significantly afterward. The wave connectors and mounting rings included in the set stabilize the roller shutter curtain when closing and can withstand a counter pressure of at least 100 kg. Therefore, pushing it open from the outside is almost impossible. Enhance the complete set with the Smart Home control TaHoma Switch and create a smart and intelligent home for yourself.
2. somfy Modern.kit standard 15/17 LT50 Atlas 1039409
The Somfy complete package offers an all-in-one solution for various roller shutter installation situations, characterized by user-friendliness and efficiency. The drive is operated via the included wired Smoove UNO wall switches, eliminating the need for complicated installation work. The system is designed for maximum comfort and durability, achieved through a fixed end position setting and a smooth, quiet operation thanks to high-quality bearings. Included in the package are a powerful plug-in drive and compatible components such as adapters, a drive coupling for the 8-sided shaft, a robust motor bracket, and a telescopic roller capsule that allows for easy adjustment to the roller shutter shaft. Mounting springs, quick-connect terminals including a meter of cable, and a Smoove UNO wall switch with a frame further facilitate installation. The drive is suitable for plastic roller shutters with an area of up to 7.5 m² and for aluminum roller shutters with an area of up to 5.5 m², offering a nominal torque of 15 Nm and a nominal speed of 17 rpm at a rated voltage of 230 V. With a power consumption of 140 W, a frequency of 50 Hz, and a diameter of 60 mm, the system strikes a balance between performance and energy efficiency. For those seeking a more flexible option, the io modernization kit is available. This minimizes wiring effort and allows for quick initialization, making it ideal for retrofitting. Thanks to the ability to integrate with Somfy's TaHoma home control system, the wireless drive can be incorporated into a wide range of other smart devices, enabling comprehensive home automation.
3. somfy 1000032

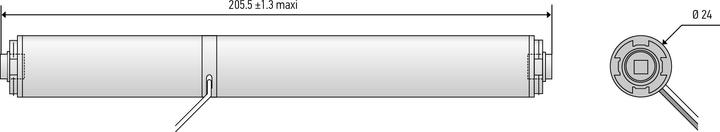

Somfy Drive LW25-B44, 24VDC 1000032
Manufacturer: Somfy
Designation: Drive LW25-B44, 24VDC
Torque: 0.4 Nm
Speed: 40 RPM
Power: 10.8 W
Outer diameter: 24 mm
Hexagonal steel shaft SW 40: no
Hexagonal steel shaft SW 50: no
Hexagonal steel shaft SW 60: no
Hexagonal steel shaft SW 70: no
For roller shutters: no
For awnings: no
For profile tube shaft: no
Type of limit switches: mechanical
Backjump: no
Electronic travel monitoring: no
Electronic obstacle detection: yes
With coupling: no
With adapter for shaft: no
Length: 205.5 mm
This central drive can be installed in the smallest compact rail systems with dimensions of 25 x 25 mm or in other rails using the appropriate adaptations (head rail and shaft adapters). The adjustment of the limit positions is not necessary due to an integrated current detection in the drive. A spindle lock is integrated into the head rail for shutdown in the lower limit position. The drive features an integrated brake and overload protection and is maintenance-free.
Note: We are happy to advise you on the appropriate accessories for integrating the drive into the respective applications. Delivery includes a 2.5 m cable, white.
4. somfy 1242194 Push-in drive LS40 4/16 NL BK
The ideal drive for mini roller shutters and textile sun protection. It can be installed even in tight side spaces. Reliable adjustment of the drives with hexagon screws. Fixed mounted cable. With high pulling forces of 4 to 13 Nm, even larger coverings can be rolled up effortlessly. Revised components for improved acoustic comfort.
Scope of delivery: Drive, adapter, coupling, 1 m black cable. Nm: 4, RPM: 16, Length 1 in mm: 442, Power in W: 80, Operating voltage: 230 V - 50 Hz, Operating temperature: -20 to 60 degrees C, Protection class: IP 44, Protection class: II.
Have you heard about the Somfy modernization kit Radio io? Your advantages: significant time savings due to reduced wiring effort during installation and quick commissioning, even for retrofits. Additionally, Somfy radio drives can be easily and quickly integrated into the smart home control TaHoma, which is compatible with numerous manufacturers in the market.

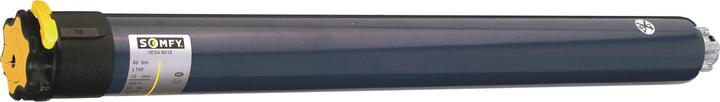

5. somfy 1166154 Tubular motor LT 60 Titan
The classic model with mechanical end position adjustment via adjustment buttons. A single press of a button is all it takes to set the end position. Delivery includes: drive, adapter, coupling, 1 m black cable. Nm: 100, RPM: 12, Length 1 in mm: 681, Power in W: 350, Operating voltage: 230 V - 50 Hz, Operating temperature: -25 to 70 degrees Celsius, Protection class: IP 44, Protection category: I. Are you familiar with the Somfy modernization kit for io wireless? Your advantages: significant time savings due to reduced wiring effort during installation and quick commissioning, even for retrofitting. Additionally, Somfy wireless drives can be easily and quickly integrated into the smart home control TaHoma, which is compatible with numerous manufacturers in the market.
6. somfy GDK 700 RTS
Garage door complete set GDK 700 RTS. Open and close the garage door in the future with the included remote control. Somfy GDK 700 also offers burglary protection. When operating the garage door, the integrated light bulb automatically turns on. Suitable for swing and sectional doors with a door height of 2.5 m and an area of 7 m².
7. somfy Roller shutter motor 4sqm 8Nm/17Umin. 1035192
Somfy Roller Shutter Motor 1035192
Manufacturer: Somfy
Description: Roller shutter motor for 4 sqm, 8 Nm/17 RPM
Type: 1035192
Outer diameter: 45 mm
Torque: 8 Nm
Square steel shaft SW 40: no
Square steel shaft SW 50: yes
Square steel shaft SW 60: yes
Square steel shaft SW 70: yes
For roller shutters: yes
For awnings: yes
For profile tube shaft: yes
Max. roller shutter weight: 20 kg
Type of limit switches: mechanical
Backjump: no
Electronic travel monitoring: no
Electronic obstacle detection: no
With coupling: yes
With adapter for shaft: yes
Length: 525 mm
Additional details: Roller shutter motor for 4 sqm, with adapter, coupling, motor mount, and 2.5 m cable, black, 8 Nm torque, for shaft SW 60.
Have you heard about the Somfy modernization kit Radio io? Your benefits: significant time savings due to reduced wiring effort during installation and quick commissioning, even for retrofits. Additionally, Somfy radio drives can be easily and quickly integrated into the smart home control system TaHoma.
EAN: 3660849562755.
8. somfy Funkantrieb
The drive is supplied in a kit consisting of a powerful DC drive with integrated radio receiver, a compact NiMH rechargeable battery and a modern mSi (monocrystalline silicon) solar panel. The components are designed to ensure reliable operation all year round (min. 2 cycles per day). It is conveniently operated using a Somfy io transmitter. The solar kit is the perfect solution for motorising roller shutters when no power supply is available. With permanently installed cable. Clean and uncomplicated installation without laying cables. Electronic end positions (fixed or automatic). Quiet and energy-saving operation. Reliable operation all year round, even in cloudy, extremely cold and north-facing conditions. Discreet and elegant solar panel with small size and high output. Obstacle detection and freeze protection Notes: The same bearings, adapters and drivers can be used as for the LS 40 series drives. The adaptation kit (item no.: 9 013 763) plus suitable adapters/ drivers must be used for installation in SW 50/60 shafts. Every specialised company requires a charger (item no.: 9 015 006) for initial charging of the battery modules. Product is not compatible with older Smoove Origin io (manufactured before 2020), all Smoove io (sensitive), Composio io, Impresario io, Easy Sun io. The Sunis WireFree II io sun sensor can only be used via Tahoma / Nina io. Replacement costs are not included. Scope of delivery: Drive with adapter/tappet for SW 40 x 0.6 and plastic bearing incl. solar panel and battery module. Nm: 3 RPM: 23 L 1 in mm. 460 Power in W: 17. Operating voltage: 12 V - 50 Hz. Operating temperature: -20 to 70 degrees C. Protection class: IP 44 Protection class: II. Radio frequency: 868-870 MHz Smart Home Ready by Somfy: great time savings thanks to less wiring work during installation and fast commissioning, even for retrofitting.

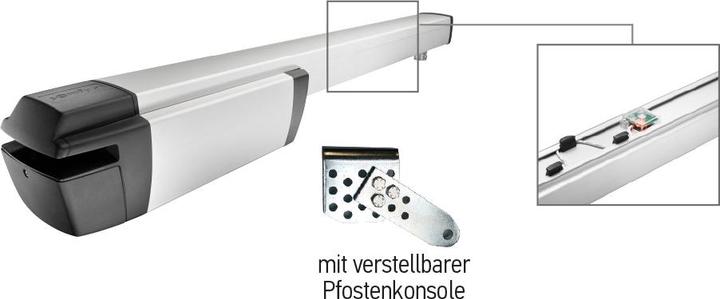

9. somfy 1216558
Robust radio drive for double-leaf swing gates up to 4 m wide or 400 kg in weight. Thanks to the radio connection, the swing gate can be conveniently integrated into home automation systems such as TaHoma or Connexoon. Precise adjustment of the gate open and close positions is facilitated by integrated limit switches accessible from above. 3S io control with separate control of drive units, lighting, and side door (electric lock). Additional push when closing to secure the gate leaf. Suitable for gates that open outward. In case of power failure, emergency operation is possible using a battery, with no mechanical release required. Note: Individual components or sets for single-leaf swing gates available upon request.
Delivery includes: 2x Ixengo drive units with adjustable post brackets, 1x Ixengo 3S io control unit, 2x 4-channel radio remote controls KeyGo 4 io, 1x light barrier set, 1x warning light with integrated antenna, emergency power battery.
Operating voltage: 230 V - 50 Hz. Motor power supply: 24 V DC. Lighting output: max. 500 W. Operating temperature: -20 to 60 degrees Celsius. Protection class: IP 44. Radio frequency: 868-870 MHz. Dimensions (W x D x H): 100 x 955 x 105 mm. Accessory output: 24 V DC, max. 1,200 mA. Operating cycles per day: 60 (3x 2 hours of continuous operation per day). Manual operation: with emergency release key. Maximum width of the gate leaf: 4000 mm. Maximum height of the gate leaf: 2000 mm.
Smart Home Ready by Somfy: significant time savings due to reduced wiring effort during installation and quick commissioning, even for retrofitting. Additionally, Somfy radio drives can be easily and quickly integrated into the smart home control system TaHoma (compatible with numerous manufacturers in the market). The Somfy Pro App (iOS & Android) guides you step by step through the commissioning process.
10. somfy Modernization kit 9/14 EGH 1023027
The Somfy complete package represents an all-in-one solution for various roller shutter installation situations and is characterized by user-friendliness and efficiency. The operation of the drive is carried out via the included wired Smoove UNO wall switches, eliminating the need for complex installation work. The system is designed for maximum comfort and durability, achieved among other things by a fixed end position setting and a smooth, quiet operation due to high-quality bearings. The package includes a powerful plug-in drive and matching components such as adapters, a drive for the 8-sided shaft, a robust motor bracket, and a telescopic roller capsule that allows for easy adjustment to the roller shutter shaft. Mounting springs, quick connection terminals including a 3-meter cable, and a Smoove UNO wall switch with a frame further facilitate installation. The drive is suitable for plastic roller shutters with an area of up to 5 m² and aluminum roller shutters with an area of up to 3.5 m², offering a rated torque of 9 Nm and a rated speed of 16 rpm at a nominal voltage of 230 V. With a power consumption of 110 W, a frequency of 50 Hz, and a diameter of 40 mm, the system strikes a balance between performance and energy efficiency. For those looking for a more flexible option, the io modernization kit is available. This minimizes wiring effort and allows for quick initialization, making it ideal for retrofitting. Thanks to the possibility of integration into Somfy's TaHoma home control system, the wireless drive can be incorporated into a wide range of other smart devices, enabling comprehensive home automation.
