Best Warema products in the Drive technology accessories category
On this page you'll find a ranking of the best Warema products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

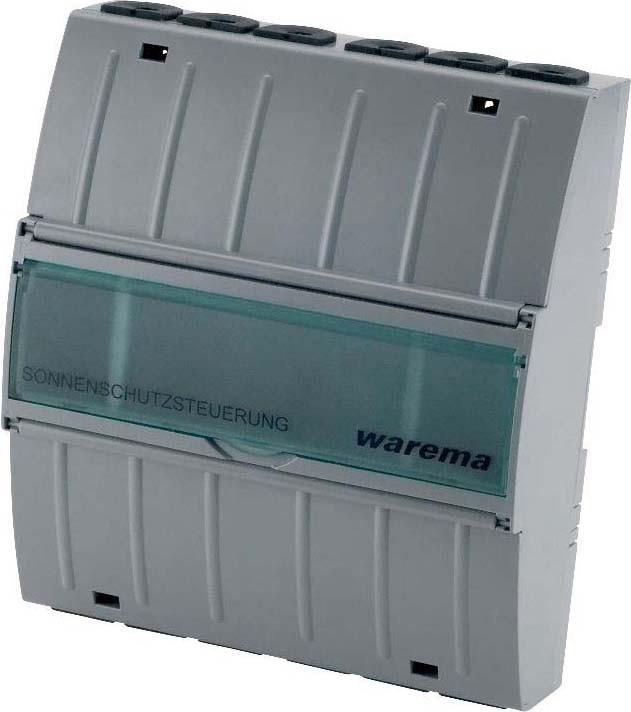

1. Warema Motor control unit
Warema Sonnen motor control unit 2016484 Manufacturer :Warema Sonnen Designation :Motor control unit MSE Kompakt 3 AP Type :2016484 Rated operating current Ie :0.016 A Rated operating voltage Ue at AC 50 Hz :207...253 V Rated operating voltage Ue at AC 60 Hz :0 V Rated operating voltage Ue at DC :0 V Rated operating frequency :50 Hz Current detection module :no Voltage detection module :no Type of connection technology :Screw connection Rated control supply voltage Us at AC 50 Hz :0 V Rated control supply voltage Us at AC 60 Hz :0 V Rated control supply voltage Us at DC :36 V Voltage type for actuation :DC Number of outputs, contact-based :6 Number of digital inputs :8 Input for thermistor connection :no Input for earth fault detection :no Input for analogue temperature sensor :no Switching function :monostable Electrical connection version for auxiliary and control circuit :Screw connection Interface version :other Protection class (IP) :IP30 Protection class (NEMA) :other Warema sun motor control unit 2016484: Further details For controlling up to 3 motors via the sun shading control centre. 3 drives can be connected to the motor control unit at the same time. A separate push-button can also be connected per motor output for local operation. The motor control unit is operated via separate control and power loop cables. The safety extra-low voltage is generated in the motor control unit itself. An external power supply unit is not required. Different programmes can be set for sun shading products with and without slats. A local movement command is saved after 2 seconds or immediately, depending on the programming. In the case of a centralised command, this movement command is deleted and local operation is blocked. All connection terminals are designed as screw terminals for safe installation. The logic behaviour, time logic or permanent logic, can be switched via a coding switch on the device. The housing is also halogen-free and complies with the UL-94 V0 test. Both REG and surface-mounted housings are available. A replaceable miniature fuse is provided for each two motor outputs to protect the motor cable. EAN: 4251317204698.

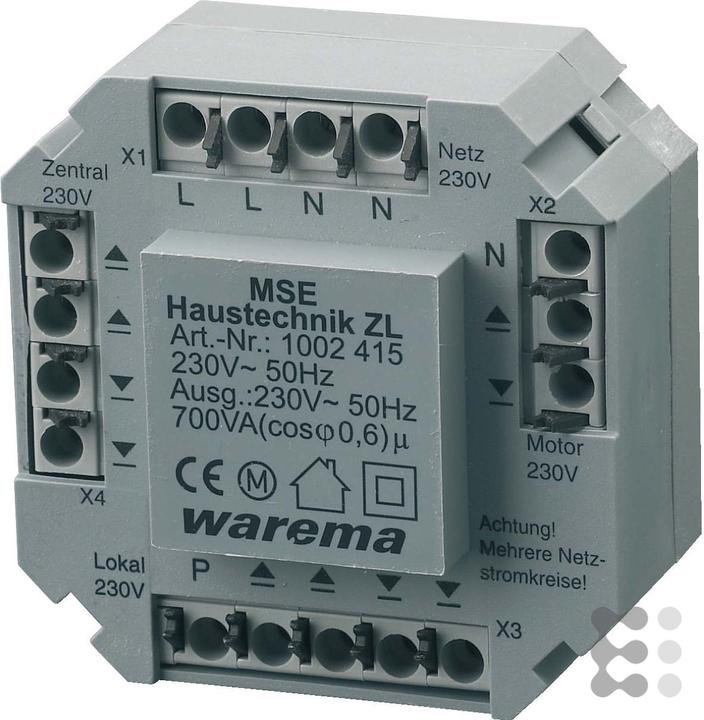

2. Warema MSE Building services
Warema Sonnen MSE Home Technology ZL 1002415
Manufacturer: Warema Sonnen
Designation: MSE Home Technology ZL UP
Type: 1002415
Rated operating current Ie: 0.004 A
Rated operating voltage Ue at AC 50 Hz: 207..253 V
Rated operating frequency: 50 Hz
Current detection module: no
Voltage detection module: no
Connection technology type: other
Rated control supply voltage Us at AC 50 Hz: 207..253 V
Voltage type for operation: AC
Number of outputs, contact-bearing: 2
Number of digital inputs: 4
Switching function: monostable
Electrical connection design for auxiliary and control circuit: other
Protection class (IP): IP20
Motor control unit (MSE) for controlling a 230 V AC sun protection drive. It allows direct control of a 230 V sun protection drive via a sun protection central unit and a local button. Additionally, multiple motor control units can be grouped together and operated collectively from a single button. The logic behavior of the switch is time logic. The time logic causes the MSE to enter self-holding mode after approximately 2 seconds of button activation. A shorter button press generates a reversing pulse (for louver products). It is suitable for use in small installations (up to about 15 units). Note: 230V trailing line voltage.

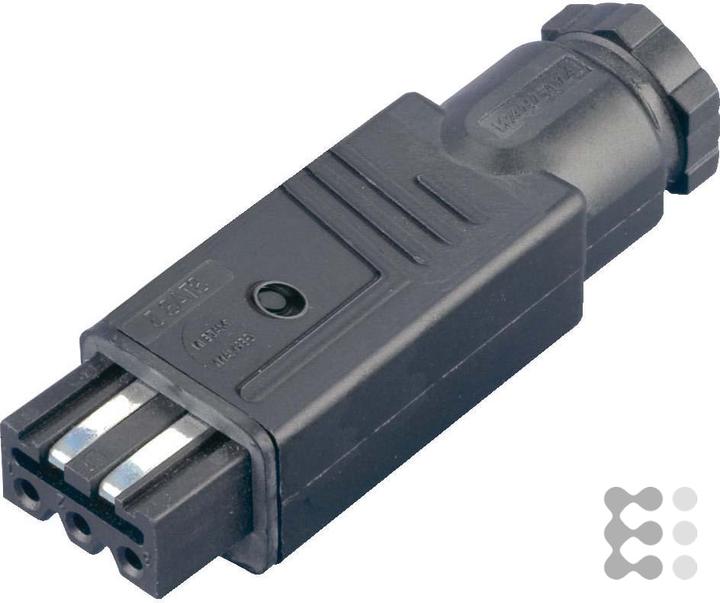

3. Warema Coupling
The Warema 4-pole coupling STAK 3 (Type 627050) is a high-quality accessory for sun protection drives. It provides a reliable connection for 3-pole cables and is equipped with strain relief, which enhances the durability and safety of the installation. This coupling is specifically designed for use in drive technology and ensures a stable and secure connection. Manufactured in Germany, it meets high quality standards and is suitable for professional use. The coupling features a neutral color scheme that seamlessly integrates into various installations. It is an essential accessory for anyone who values quality and reliability in drive technology.
- Strain relief for increased safety and durability
- Specialized for sun protection drives
- Made in Germany with high quality standards.

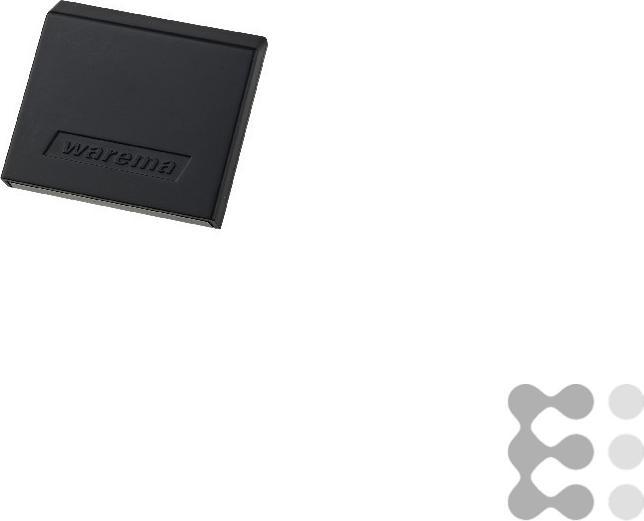

4. Warema WMS wall bracket
The WMS wall mount from Warema is a practical accessory specifically designed for the installation of WMS remote controls. This mount allows for easy and secure attachment, ensuring that the remote is always within reach. The wall mount is made from high-quality materials and provides a reliable solution for mounting on walls in residential or commercial spaces. It is an essential accessory for anyone looking to optimize the functionality of their WMS systems. Installation is straightforward and requires no special tools, making it easy for anyone to set up. The WMS wall mount is a well-thought-out product that impresses in both functionality and design.
- Specialized for the installation of WMS remote controls
- Easy and secure attachment
- Made in Germany.
5. Warema Motor control unit compact 4 AP
For controlling up to 4 motors via the sun protection central unit. The motor control unit can connect 4 drives simultaneously. For local operation, a separate button can also be connected to each motor output. The motor control unit operates via separate control and power loop lines. The safety low voltage is generated within the motor control unit itself. An external power supply is not necessary. Different programs for sun protection products with and without slats can be set. A local command will be saved after 2 seconds or immediately, depending on the programming. In the case of a central command, this local command is deleted and local operation is blocked. All connection terminals are designed as screw terminals for secure mounting. The device allows switching between logic behavior, time logic, or permanent logic via a coding switch. Additionally, the housing is halogen-free and complies with UL-94 V0 testing. Both recessed and surface-mounted housings are available. For every two motor outputs, there is a replaceable fuse for securing the motor line.

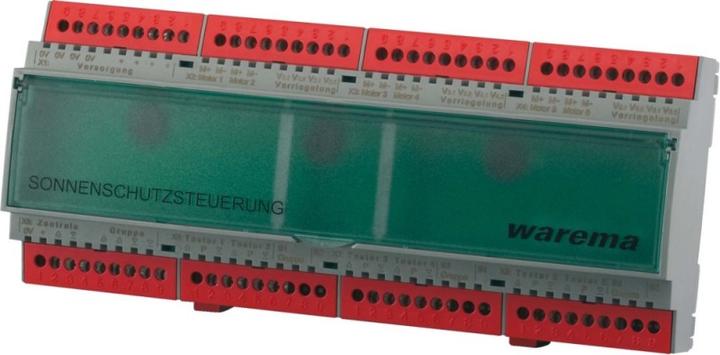

6. Warema 1002086
Warema Sonnen MSE Inside 6 REG 1002086
Manufacturer: Warema
Designation: MSE Inside 6 REG
Type: 1002086
Rated operating current Ie: 0.14 A
Rated operating voltage Ue at AC 50 Hz: 0 V
Rated operating voltage Ue at AC 60 Hz: 0 V
Rated operating voltage Ue at DC: 30 V
Rated operating frequency: 0 Hz
Current sensing module: no
Voltage sensing module: no
Type of connection technology: screw connection
Rated control supply voltage Us at AC 50 Hz: 0 V
Rated control supply voltage Us at AC 60 Hz: 0 V
Rated control supply voltage Us at DC: 30 V
Type of voltage for operation: DC
Number of outputs, contact-bearing: 12
Number of digital inputs: 14
Input for thermistor connection: no
Input for earth fault detection: no
Input for analog temperature sensors: no
Switching function: monostable
Design of electrical connection for auxiliary and control circuit: screw connection
Interface design: other
Protection class (IP): IP30
Protection class (NEMA): other
Warema Sonnen MSE Inside 6 REG 1002086: additional details
Direct control of six 24 V sun protection/window drives via a sun protection central unit and a local button. Multiple motor control units can be grouped together and operated collectively by a single button. The operating mode of the button can be switched between time logic and permanent logic. TL: Time logic causes the MSE to go into self-holding after a button press of about 2 seconds. A shorter button press generates a reversing pulse (for slat products). PL: Permanent logic causes the MSE to immediately go into self-holding upon button press (for fabric products/roller shutters). Program "Fanning out" (complete slat rotation after stop or 3 minutes of runtime) to ensure the correct position of the slats. The locking input can disable the sun protection drive as soon as, for example, a window is opened.
EAN: 4251317202311.
