Best selling Door hinges from Dormakaba
On this page you’ll find a ranking of the best Door hinges from Dormakaba. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Dormakaba Frame part Studio to screw on
The Dormakaba Studio frame part for screw mounting is a high-quality door fitting specifically designed for use with glass doors. Made from galvanized steel, this product offers a robust and durable solution for securing door leaves. The plastic-coated bolt construction provides additional protection and improved handling. With a length of 83 millimeters and a width of 15 millimeters, this frame part is ideal for various applications both indoors and outdoors. The straightforward installation by screwing allows for quick setup, while the use of countersunk screws with a diameter of 10 millimeters ensures a secure connection. This product is not only functional but also aesthetically pleasing, seamlessly integrating into modern interior designs.
- Plastic-coated bolt construction for additional protection
- Quick and easy installation through screw mounting
- Ideal for glass doors and various applications.
2. Dormakaba Glast+AMMAvA ribbon

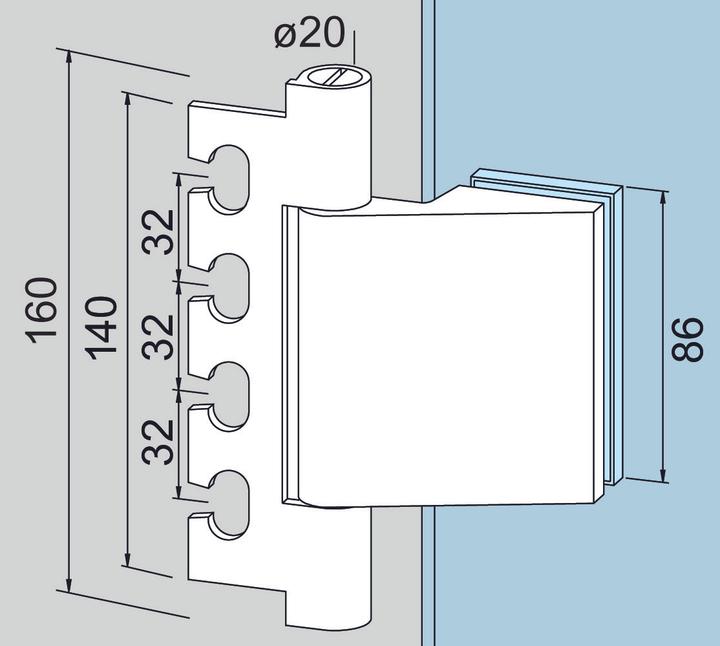

3. Dormakaba Glast+AMMAvA-rband Junior Office Classic
The Glast+AMMAvA-Rband Junior Office Classic from Dormakaba is a high-quality accessory for door fittings, specifically designed for commercial doors. It provides a reliable and durable solution for the installation of glass doors. The hinge is equipped with a frame part for 160mm frame pockets, allowing for easy installation. The use of stainless steel for the bolt and KS sliding bearings ensures high stability and functionality. The product is suitable for glass thicknesses of 8mm and 10mm and offers a rebate depth of 24mm or 26mm. Made in Germany, it meets high quality standards and is an ideal choice for modern office and commercial applications.
- Stainless steel bolt for increased stability
- Compatible with glass thicknesses of 8mm and 10mm
- Designed for use in commercial doors with 160mm frame pockets.
4. Dormakaba DORMA glass door hinge w.frame part Junior Office 11.239,glass 8-10mm,silver anodised
The DORMA glass door hinge with frame part Junior Office 11.239 is a high-quality solution for mounting glass doors with a glass thickness of 8 to 10 mm. This hinge is specifically designed for wooden frames and offers a load capacity of up to 55 kg, making it ideal for use in offices and other commercial spaces. The product is made of silver anodized aluminum, which not only provides an attractive appearance but also ensures high durability and longevity. Installation is done by recessing into the wooden frame, allowing for a clean and aesthetic setup. The hinge is equipped with a bolt made of galvanized steel and plastic bushings, ensuring smooth operation. With a maximum wing width of 1000 mm, this hinge is versatile and suitable for various door designs.
- Suitable for glass doors with a thickness of 8-10 mm
- Maximum load capacity of 55 kg
- Anodized aluminum surface for increased corrosion resistance
- Recessed installation for a clean and aesthetic setup.
Door hinge
CHF101.64
Dormakaba DORMA glass door hinge w.frame part Junior Office 11.239,glass 8-10mm,silver anodised

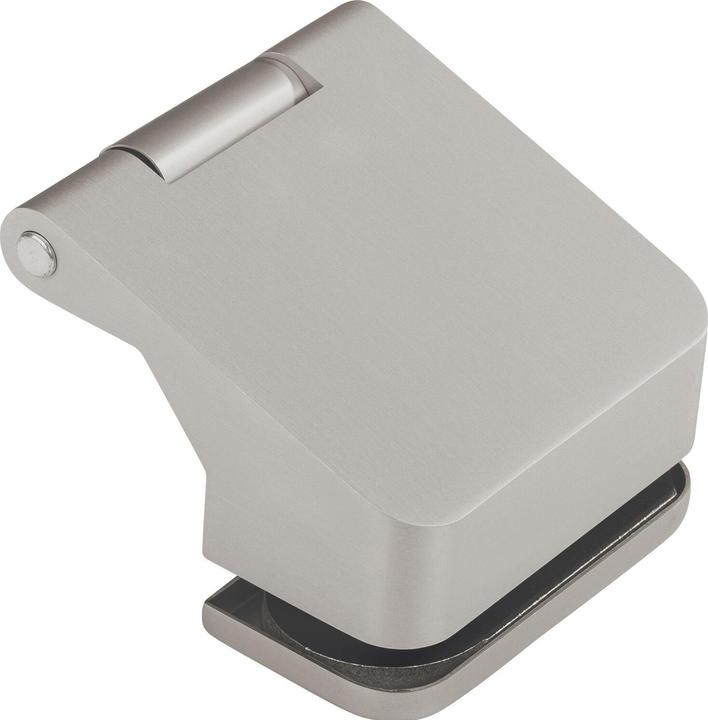

5. Dormakaba DORMA glass door hinge, Junior Office sash section 11.238, 38.5 mm, stainless steel effect
The DORMA glass door hinge leaf Junior Office from Dormakaba is a high-quality solution for mounting glass doors in office environments. This door hardware system is specifically designed for use with glass thicknesses of 8 mm and 10 mm, providing a reliable and aesthetically pleasing way to install glass doors. With an elegant stainless steel effect, the hinge blends harmoniously into modern interiors, ensuring an appealing appearance. The aluminum construction guarantees high stability and durability, while the hinge is suitable for leaf weights of up to 80 kilograms. The precise workmanship and thoughtful technology make this product an ideal choice for demanding applications in the office sector.
- Suitable for glass thicknesses of 8 mm and 10 mm
- Maximum leaf weight of 80 kilograms
- Made from aluminum with a stainless steel effect
- Designed for use in modern office environments.
Door hinge
CHF111.12
Dormakaba DORMA glass door hinge, Junior Office sash section 11.238, 38.5 mm, stainless steel effect
6. Dormakaba Glass door hinge Studio Rondo
Glass door hinge with a semicircular end, pointing towards the center of the glass. Maximum wing weight of 45 kg and maximum wing width of 1,000 mm for ESG 8 mm glass thickness and 24 mm rebate depth, or for 10 mm glass thickness and 26 mm rebate depth with sleeve. Features: surface anodized in silver, hinge construction for a two-part wing weight of 60 kg. Hinge dimensions (WxH): 131 x 43 mm, rebate depth: 24 mm.
7. Dormakaba Swing door hinges TENSOR
Band with spring-assisted self-closing function without damping. Max. torque 12 Nm (with 2 bands). Application area: single or double-leaf interior doors. Suitable for damp environments (not for sauna applications). Versions available for wall or frame mounting (with surface-mounted or recessed mounting plate) as well as for mounting on glass side panels. Max. side panel width 1500 mm. Locking point at 90° opening angle relative to the zero position. Quick and easy zero position adjustment. TÜV certification/monitoring regarding quality and production process with confirmed 500,000 movement cycles. Not suitable for hinged doors.
Locking point: 90°. Glass thickness (mm): 8, 10, and 12. Material: aluminum with stainless steel effect. Mounting type: glass-wall. Max. leaf width (mm): 1000. Max. leaf height (mm): 2500. Type: tensioner. Max. load capacity (kg): 65. Leaf width from (mm): 700. Brand: DORMA-Glas. Content (PAA): 1.
8. Dormakaba Glass door hinge Junior Office
Dorma-glas Glass Door Hinge OFFICE Junior LM anodized stainless steel. 80 kg for 3-part. Manufacturer: Dorma-glas. Description: Dorma-glas Glass Door Hinge OFFICE Junior LM anodized stainless steel. 80 kg for 3-part. Type: OFFICE Junior. Country of origin: Germany. Surface: anodized stainless steel. Hinge construction: for 3-part. Leaf weight: 80 kg. Additional information: with sleeve. Material: lightweight metal. Rabbet depth: 24 mm. Packaging size: 2 pieces. Further details: with rounded corners facing the center of the glass, max. 55 kg leaf weight and max. 1000 mm leaf width. Material: aluminum for ESG 8 mm glass thickness and 24 mm rabbet depth or for 10 mm glass thickness and 26 mm rabbet depth. Hinge dimensions (WxH): 87 x 86 mm with sleeve. 3-part. EAN: 4048421083192.
9. Dormakaba Glass door fitting STUDIO Rondo/OFFICE Junior Light metal Dark Niro BB Handle guide front DIN
The STUDIO Rondo/OFFICE Junior glass door fitting is a high-quality solution for the installation of glass doors. It consists of a complete fitting set that includes a lock, hinges, and sleeves, as well as two frame parts for the wooden frame. The fitting is suitable for 8 mm and 10 mm thick ESG glass and offers a maximum load capacity of up to 80 kg, making it ideal for use in single or double-leaf systems. The handle guide is included in the delivery, but no handle is included in the set. The fitting is made of lightweight aluminum and is anodized in the elegant color Dark Niro, giving it an appealing look. Installation is possible for both left-hand and right-hand DIN configurations, allowing for flexible application. With a lock case classified according to DIN 18 251, this fitting offers high security and durability, making it ideal for daily use.
- Complete fitting with lock and hinges for glass doors
- Maximum load capacity of up to 80 kg
- Suitable for 8 mm and 10 mm ESG glass
- Easy installation for left-hand and right-hand DIN configurations.
Door hinge
−7%
CHF129.– was CHF139.–
Dormakaba Glass door fitting STUDIO Rondo/OFFICE Junior Light metal Dark Niro BB Handle guide front DIN
10. Dormakaba Glass door hinge Studio Classic
Glass door hinge with a rectangular end, facing the center of the glass. It supports a maximum wing weight of 45 kg and a maximum wing width of 1,000 mm for ESG 8 mm glass thickness and 24 mm rebate depth, or for 10 mm glass thickness and 26 mm rebate depth with sleeve. Features include an anodized stainless steel surface, hinge construction for two parts, a wing weight capacity of 60 kg, hinge dimensions of 131 x 43 mm, and a rebate depth of 24 mm.
