Dormakaba Glass door fitting STUDIO Rondo/OFFICE Junior Light metal Dark Niro BB Handle guide front DIN

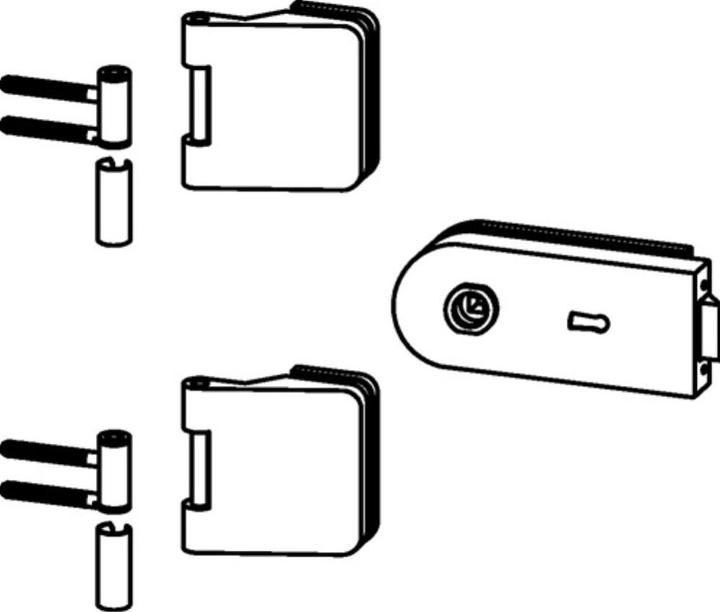

Complete fitting with lock, hinges, and sleeves, including two frame parts for wooden frame - without lever handle. Glass door lock STUDIO Rondo with semi-circular cap end, pointing to the center of the glass - for 8 mm glass thickness and 24 mm rebate depth or for 10 mm glass thickness and 26 mm rebate depth - can be used DIN left/right - material: aluminium - for toughened safety glass 8 or 10 mm - max. door leaf weight: 60 kg / 60 kg / 10 mm max. door leaf weight: 60 kg / 80 kg (OFFICE hinges) - lock case dimensions (WxHxD): 159x65x37 mm - lock according to DIN 18 251, class 3 (200,000 operations of the latch function and 50,000 operations of the dead bolt). Application range for 1/2-leaf systems or systems with side panel - with lever handle guide - without lever handle. Glass door hinges OFFICE Junior with rounded corners, pointing to the center of the glass - max. sash weight 80 kg and max. 1000 mm sash width - aluminium material - for toughened safety glass 8 mm glass thickness and 24 mm rebate depth or for 10 mm glass thickness and 26 mm rebate depth - hinge dimensions (WxH) 87x86 mm - with sleeve - 3-piece. Further technical features: glass thickness: 8/10 mm - material: light metal - fitting direction: DIN left/right - glass type: toughened safety glass - max. door weight: 45 kg.
