Cable routing
CHF125.73 CHF11.43/1cm
Niedax NIE RFD110.200 drop section 110x202mm w.ungel.side rails bandverz.
11 cm
Best Niedax products in the Cable routing category
On this page you'll find a ranking of the best Niedax products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Niedax NIE RFD110.200 drop section 110x202mm w.ungel.side rails bandverz.
The Niedax RFD110.200 is a high-quality fall piece specifically designed for cable tray systems. With a design that allows for a vertical direction change of 90°, this product is ideal for the installation of cable trays. It features unperforated side rails and an integrated connector hole, enabling easy assembly and connection with other components. The bend is made of strip-galvanized steel, providing it with high resistance and durability. The construction is designed to meet the requirements for cable routing in various environments, including a wide temperature range of -20 to 120 °C. This fall piece is a reliable solution for the efficient and safe management of cables in industrial applications.
- Integrated joint connectors for easy assembly
- Suitable for vertical cable tray runs with 2 x 45°
- Made from strip-galvanized steel according to DIN EN 10346
- Operating temperature range of -20 to 120 °C.

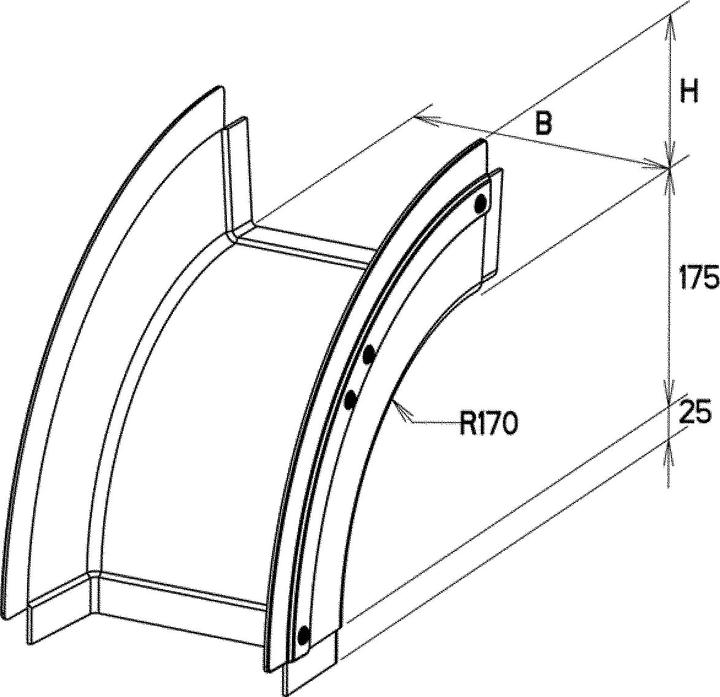

2. Niedax NIE KKBA 80.100 GRP gutter downpipe 80x100mm w.attached connector,pressed
The Niedax KKBA 80.100 GFK cable tray elbow is a high-quality product specifically designed for the vertical discharge of cable trays. Made from fiberglass-reinforced polyester (UP-GF), this cable tray elbow offers a robust and durable solution for cable support systems. With an inner radius of 175 mm, it allows for efficient and safe cable routing. The elbow is halogen-free, contributing to safety in electrical installations. The unperforated side rails and molded connectors ensure easy assembly and stability. It is important that the elbow is supported with brackets at every cable tray access point to ensure proper installation. The item is available in an attractive pebble gray color (RAL 7032) and is suitable for various applications in cable laying.
- Made from fiberglass-reinforced polyester (UP-GF) for high stability and durability
- Halogen-free, enhancing safety in electrical installations
- Unperforated side rails and molded connectors for easy assembly
- Suitable for vertical 90° cable tray runs with an inner radius of 175 mm.
Cable routing
CHF82.90 CHF8.29/1cm
Niedax NIE KKBA 80.100 GRP gutter downpipe 80x100mm w.attached connector,pressed
10 cm

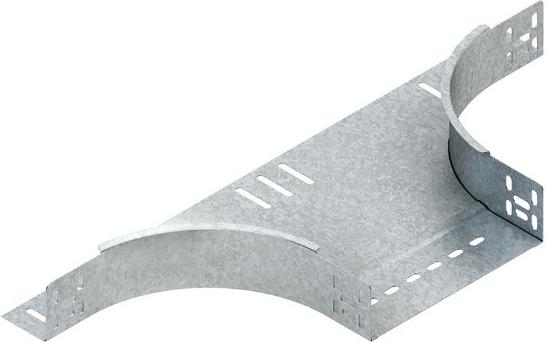

3. Niedax NIE RTS110.300F T-piece 110x302mm with unhinged side rails, hot-dip galvanised.
Niedax RTS110.300F T-piece 110x302mm.
Cable routing
CHF209.– CHF19.–/1cm
Niedax NIE RTS110.300F T-piece 110x302mm with unhinged side rails, hot-dip galvanised.
11 cm

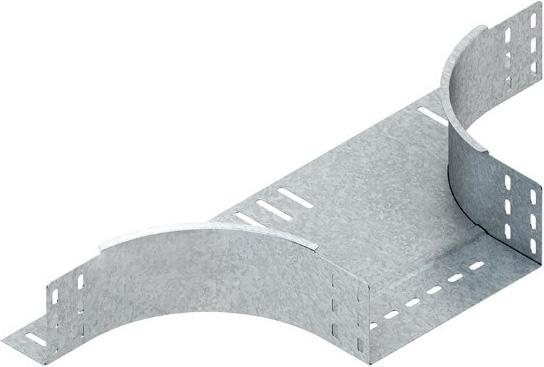

4. Niedax NIE RTS35.400 T-piece 35x402mm with ungel.en side rails bandverz.
Niedax RTS35.400 T-piece 35x402mm with.
Cable routing
CHF139.– CHF39.72/1cm
Niedax NIE RTS35.400 T-piece 35x402mm with ungel.en side rails bandverz.
3.50 cm
5. Niedax NIE RTA 60.300 E3 add-on T-piece 60x302mm w.unperforated side rails
Niedax RTA 60.300 E3 mounting T-piece.
Cable routing
CHF129.– CHF21.50/1cm
Niedax NIE RTA 60.300 E3 add-on T-piece 60x302mm w.unperforated side rails
6 cm

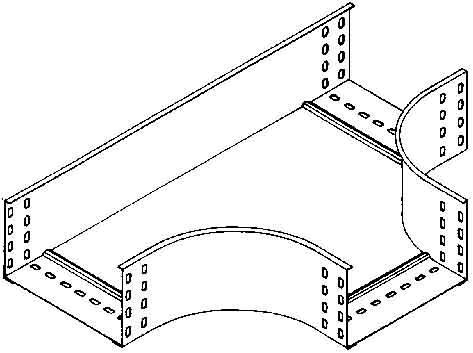

6. Niedax NIE RTA 85.100 F attachment T-piece 85x102mm w.unperforated side rails
Branch T-piece with unperforated side rails and connector holes for connection to cable trays. It is used to create horizontal 90° T-branches and intersections of varying and equal widths, depending on the main direction. The product features integrated joint connectors and is supplied with hot-dip galvanized mounting accessories.
For cable trays:
- Edge height: 85 mm
- Dimensions (approx. internal measurements) H x W: 85 x 102 mm
- Internal rail radius R: 138 mm
- Notch of the cable trays: 280 mm + W
Material: Steel, hot-dip galvanized according to DIN EN ISO 1461.
Cable routing
CHF82.90 CHF9.75/1cm
Niedax NIE RTA 85.100 F attachment T-piece 85x102mm w.unperforated side rails
8.50 cm

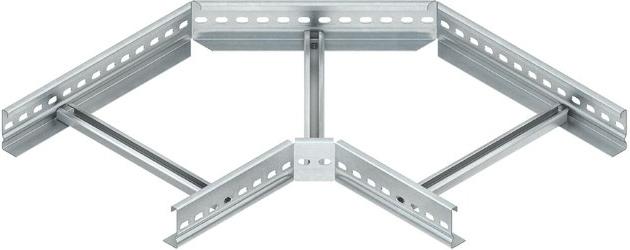

7. Niedax NIE KLE 60.603 F Corner piece, 60x600 mm, with perforated side rails, hot-dip galvanised
Niedax KLE 60.603 F corner piece, 60x600 mm,.
Cable routing
CHF259.– CHF4.31/1cm
Niedax NIE KLE 60.603 F Corner piece, 60x600 mm, with perforated side rails, hot-dip galvanised
60 cm

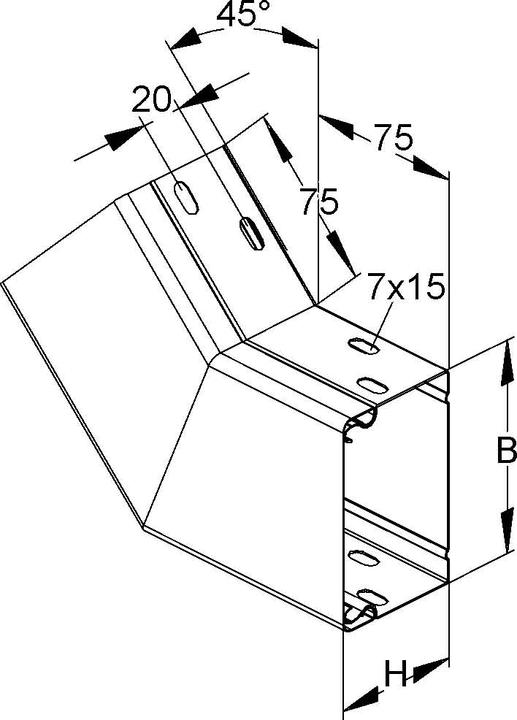

8. Niedax NIE LEWB60.200 Flat angle 45° with cover 60x200mm strip galvanised DIN EN 10346
Niedax LEWB60.200 Flat angle 45° with.
Cable routing
CHF109.–
Niedax NIE LEWB60.200 Flat angle 45° with cover 60x200mm strip galvanised DIN EN 10346

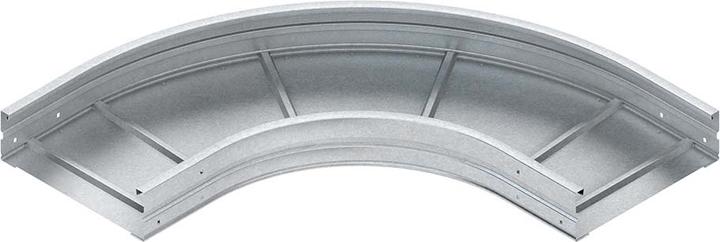

9. Niedax NIE WRBR150.300 Bend 90° 150x300mm round beaded not galvanised.
The Niedax WRBR150.300 90° bend is a high-quality fitting specifically designed for the installation of wide-span cable trays. With a diameter of 150x300 mm and a robust construction made of hot-dip galvanized steel according to DIN EN 10346, this bend provides a reliable solution for horizontal 90° drops. The flanged, round, and unperforated side rails ensure high shape stability, while the connector holes allow for easy assembly. The bend is designed to accommodate cable routing in accordance with the standards DIN/VDE 0298 Part 3, making it an ideal choice for professional installations. The use of joint connectors is recommended to ensure the stability of the construction. The WRBR150.300 is an essential component for any modern electrical installation.
- Robust construction made of hot-dip galvanized steel according to DIN EN 10346
- Suitable for horizontal 90° drops in wide-span cable trays
- Shape-stable due to fully riveted base
- Easy assembly through integrated connector holes.
Cable routing
CHF239.– CHF26.56/1cm
Niedax NIE WRBR150.300 Bend 90° 150x300mm round beaded not galvanised.
9 cm

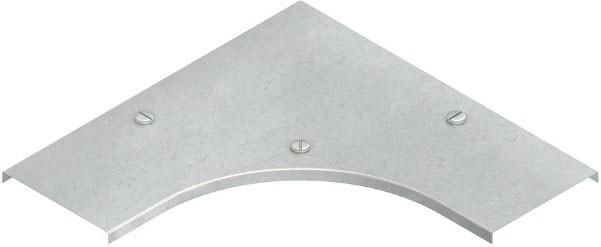

10. Niedax NIE RESDV100 Cover for bend 90° B:104mm strip galvanised DINEN10346 with Dr.V.
Niedax Cover RESDV 100
Manufacturer: Niedax
Description: Cover
Type: RESDV 100
Angle: 90°
Direction change: horizontal
Width: 104 mm
Suitable for cable tray: yes
Suitable for grid tray: no
Suitable for cable ladder: no
Mounting type: rotary latch
Hinged: no
Suitable for function maintenance: yes
Material: Steel
Material quality: other
Surface protection: hot-dip galvanized
Operating temperature: -20 to 120 °C
Niedax Cover RESDV 100: additional details
Cover for 90° bend, with non-removable pre-assembled rotary latch closures, height-independent cover for 90° cable trays and for covering a 90° bend made using a corner attachment piece. Due to external influences, such as wind loads, use in outdoor areas is only possible with additional securing. For additional needs, rotary latches can be used. VDE certified! Please observe additional regulations for use in function maintenance!
Dimensions (approx. measurements) B (inside): 104 mm
Material: Steel, hot-dip galvanized according to DIN EN 10346
EAN: 4013339276202.
Cable routing
CHF61.90
Niedax NIE RESDV100 Cover for bend 90° B:104mm strip galvanised DINEN10346 with Dr.V.
