Best Homematic IP products in the Actuator category
On this page you'll find a ranking of the best Homematic IP products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

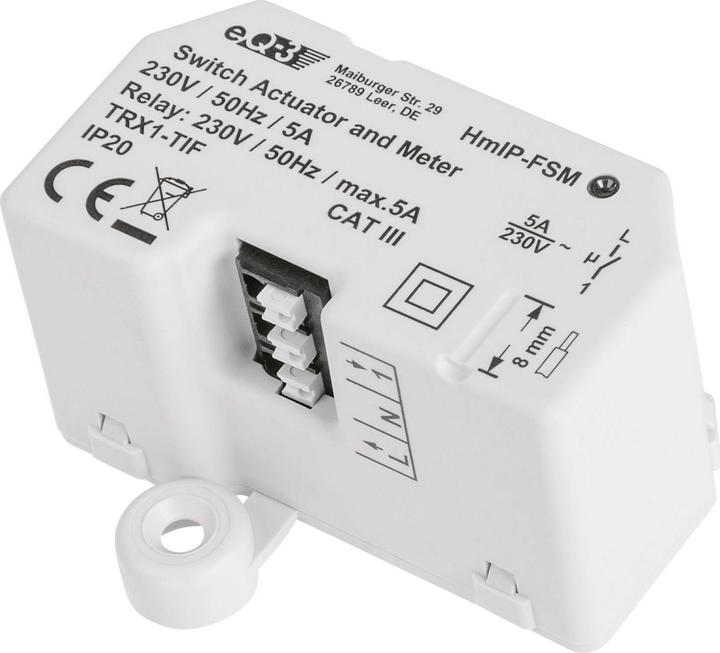

1. Homematic IP Switching and measuring actuator 1-fold
HomeMaticIP Switch-Measurement Actuator for flush mounting, Product Type: Switching Actuators, System Communication: Wireless. Product Features: 5 A switching capacity, power measurement, frequency measurement, voltage measurement, current measurement. Compact design for easy installation in flush-mounted boxes or surface-mounted distribution boxes. Convenient control via the Homematic IP app or the Homematic IP remote control. Can be operated with the Access Point in conjunction with the Homematic IP app, the Homematic Central CCU2, as well as with many partner solutions.
2. Homematic IP Wireless switching actuator for top-hat rail mounting 4-fold
Controls up to four channels from the distribution cabinet. The robust housing design allows for professional yet simple installation on standard DIN rails. Versatile control options are available directly via standard 230 V switches, wirelessly through Homematic IP switches or remote controls, and even anytime via the smartphone app.
Ohmic loads of 16 A per channel, incandescent lamps up to 1500 W per channel, lamps with internal ballast, LED, compact fluorescent lamps up to 200 W per channel, HV halogen lamps up to 1500 W per channel, NV halogen lamps with electronic or iron core transformers up to 1500 W per channel, electric radiators and electric heating systems up to 8 A, with 200,000 switching cycles per channel.
Mounting on standard DIN rails is particularly easy thanks to spring-loaded terminals and connectors. Each channel can be assigned to a different phase, allowing for independent control of each channel. Even without programming, the function and wiring can be checked directly on the device during installation, thanks to the illuminated display and device buttons.
Connected lights can be flexibly controlled via wireless switches or remote controls, as well as anytime through the Homematic IP app (e.g., via time profiles). Alternatively, manual operation via conventional wired switches is also possible. Adjustable time profiles in the Homematic IP app allow the lighting to be tailored to the daily routines of the residents. Additionally, the switching actuator can be conveniently controlled via voice commands (through Amazon Alexa or Google Assistant).
Actuator
CHF150.–
Homematic IP Wireless switching actuator for top-hat rail mounting 4-fold
Switch actuator

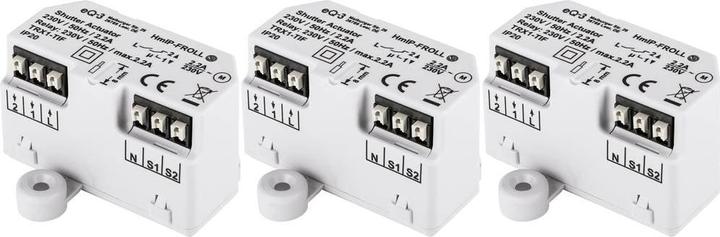

3. Homematic IP Set of 3 UP shutter actuators
3rd Set Homematic IP Roller Shutter Actuator Flush Mount
The Homematic IP Roller Shutter Actuator – Flush Mount is part of the Homematic IP Smart Home system and enables automated control of roller shutters and awnings via all common tubular motors. The small actuator is installed in the flush-mounted box and wired to the existing tubular motor. After commissioning, individual weekly profiles can be defined, also depending on sunrise and sunset. For example, the roller shutter can be raised on weekdays after sunrise, but not before 6:30 AM. Additionally, features such as a lock-out, storm protection, and heat protection can be combined with the Homematic IP app and other components. Once installed, the shading device can be operated via the Homematic IP app, using the Homematic IP remote control, or traditionally with two buttons connected via screwless terminals. Thanks to its low standby power consumption of a maximum of 0.2 watts, you won't have to worry about ongoing energy costs.
4. Homematic IP Switch actuator for top-hat rail mounting - 1-fold
The particularly narrow switching actuator, with a width of only 1 TE, can be easily installed on a DIN rail to control a channel from the distribution cabinet. This makes the device ideal for replacing impulse switches. Control is done directly via standard 230 V push buttons, wirelessly via Homematic IP buttons or remote controls, and even anytime through the smartphone app. The switching actuator not only allows for the convenient switching on and off of a connected light via an independent channel but also serves as a replacement for a conventional impulse switch. Installation on standard DIN rails is made particularly easy with spring-loaded terminals. Even without programming, the function and wiring can be checked directly on the device during installation thanks to the illuminated display and device buttons. The connected light can be flexibly controlled via wireless buttons or remote controls, as well as anytime through the Homematic IP app (e.g., using time profiles). Alternatively, manual operation via conventional wired buttons is also possible. It is suitable for renovations (e.g., attic) as well as for retrofitting. It can be easily installed in the distribution cabinet and takes up little space due to its compact housing. No intervention in the room-level installation is necessary. Existing switches and buttons can simply continue to be used.
5. Homematic IP Radio switch actuator 2-fold for brand switches
The Homematic IP switching and measuring actuator for brand switches is part of the Homematic IP smart home system. With two independent channels, it allows for the connection of up to two lights, which can be turned on and off either traditionally via a push button on the device, smartly through the free Homematic IP app, or conveniently via voice control (Amazon Alexa or Google Assistant). The upper touch surface controls channel 1, while the lower one operates channel 2. This enables easy adaptation of the lights to individual control preferences, allowing them to be automatically turned on and off at any desired time or in relation to sunrise and sunset.
Thanks to its compact design, the switching actuator fits comfortably into standard flush-mounted boxes with a depth of at least 50 millimeters. Existing switches can be replaced with minimal effort, provided that a neutral wire is available in the flush-mounted box alongside the phase. With the appropriate adapter, the actuator can be integrated into the most common designs of leading switch manufacturers, allowing for the reuse of desired frames and single push buttons.
The switching actuator is suitable for controlling many consumers such as resistive loads, incandescent lamps, lamps with internal ballast, HV halogen lamps, NV halogen lamps with electronic or iron core transformers, fluorescent lamps, electric radiators, and electric heating systems.
Intelligent light control: Conveniently turn on or off up to two connected lights via independent channels for the ideal lighting atmosphere in your smart home.
Suitable for many consumers: Resistive loads (channels 1+2 max. 6 A total), incandescent lamps (max. 600 W per channel), lamps with internal ballast (LED/compact fluorescent lamp) (max. 100 W per channel), HV halogen lamps (max. 600 W per channel), NV halogen lamps with electronic or iron core transformers (max. 600 W per channel).

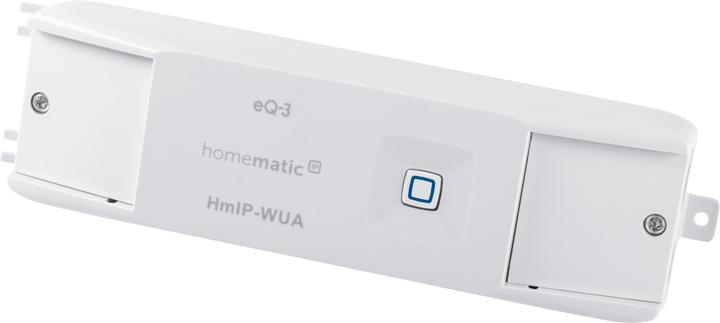

6. Homematic IP Smart Home Universal Switch Actuator 0-10 V
The network-powered Homematic IP Universal Switch Actuator is part of the Homematic IP Smart Home system and allows for the control of managed room ventilation or analog dimmable lights. The actuator can be easily controlled via the Homematic IP app, where time profiles can also be conveniently set up. The Universal Switch Actuator features a switching output with a 0-10 V interface, which allows for easy control of electronic ballasts or managed room ventilation systems. An additional load, such as a dimmer, can be connected to the parallel 1-10 V interface. When the actuator is connected to a Homematic IP wireless switch, it can also facilitate a quick ventilation burst at the push of a button. Time profiles ensure that the room ventilation operates at a normal level during the day and reduces performance at night, saving energy and minimizing disruptive ventilation noise. Once a conventional load is connected, it can also be switched on or off directly next to the power supply with the help of an additional relay. This allows the connected device to be completely powered off, unlike conventional actuators. The Homematic IP Universal Switch Actuator can be mounted on the wall or in the ceiling using standard screws and dowels, thanks to its side mounting brackets.

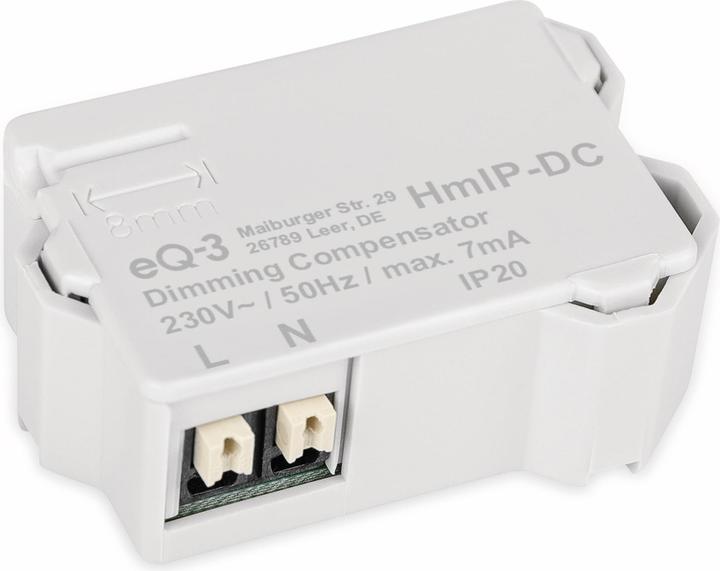

7. Homematic IP Dimmer compensator
Homematic IP Dimmer Compensator - HmIP-DC. Prevents flickering, flashing, and noise when dimming. Also works with phase-cut dimmers from other manufacturers. Easy installation thanks to screwless push-in terminals. Suitable for mounting in flush-mounted boxes or in the canopy of a light fixture. A problem solver for issues with LEDs. The Homematic IP Dimmer Compensator can eliminate typical disturbances such as flickering, flashing, or unpleasant noises in dimmable light sources, ensuring a calm lighting atmosphere. Home automation made easy with Homematic IP. Homematic IP offers practical solutions for almost all situations in home life: The home control system simplifies everyday life and manages recurring tasks in the house, such as retracting awnings, closing shutters, or opening garage doors. Control everything conveniently via the central unit, remote control, PC software, or smartphone. You have the option to combine different applications. Always expandable, always reliable. The Homematic system is flexible and can be expanded at any time. You can build your system piece by piece and customize it according to your personal preferences. Since the components communicate wirelessly, no wiring is necessary. The use of state-of-the-art wireless technology provides you with nearly one hundred percent availability of functions. Innovative smart home products from eQ-3. Homematic IP is a product of eQ-3 AG. Since the 1980s, the ELV/eQ-3 group has evolved from a technology pioneer to one of the European market leaders in the field of home control and is now one of the largest employers in East Frisia. eQ-3 stands for innovations across a wide range of technologies that, when combined, provide a competitive edge in consumer solutions.

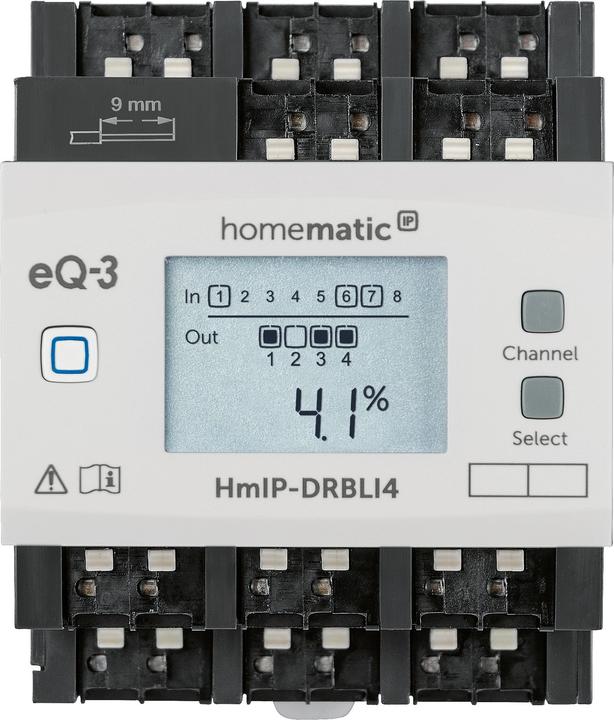

8. Homematic IP Radio blind actuator for top-hat rail mounting 4-fold
Controls up to four blinds, roller shutters, or awnings from the distribution cabinet. The robust housing design allows for professional yet simple installation on standard DIN rails. Versatile options for controlling the shading elements are available - directly via standard 230 V switches, wirelessly through Homematic IP switches or remote controls, and even anytime via the smartphone app. Individual raising or lowering of up to four connected blinds, roller shutters, or awnings can be done through independent channels for greater comfort and security in the smart home. Adjustable time profiles allow blinds to automatically raise or lower, adapting to the daily routines of the residents. Control can be flexibly done remotely via smartphone, manually through the already installed switches, or conveniently via voice control. Enjoy a relaxed wake-up in the morning or secure your home at dusk: blinds can be automatically controlled based on sunrise and sunset. The intelligent heat protection prevents overheating of rooms in summer through automatic shading. With adjustable time profiles in the Homematic IP app, the operation of the blinds can be tailored to the residents' daily schedules. Additionally, the blind actuator can be comfortably controlled via voice commands (through Amazon Alexa or Google Assistant). Installation on standard DIN rails is particularly easy thanks to spring-loaded terminals and connectors. Each channel can be assigned to a different phase, allowing for independent control of each individual channel. Even without programming, the functionality and wiring can be directly checked on the device during installation thanks to the illuminated display and device buttons.
9. Homematic IP Smart Home Wiegand Interface
The Wiegand interface enables the integration of Wiegand-compatible devices into the Homematic IP Smart Home system, such as a code lock, a fingerprint sensor, or a card and transponder reader. The interface can be configured according to individual preferences via the Homematic IP app, allowing for the inclusion of Wiegand-compatible devices. This ensures secure and convenient access to the smart home. The Wiegand interface features eight virtual input channels that can be individually linked to Wiegand codes. A Wiegand code can control one or more virtual input channels and trigger actions. In combination with the respective Homematic IP devices, this allows for the control of lighting, the garage door, or the alarm mode. In addition to the Wiegand inputs, the device has an input for connecting a doorbell button and another input for connecting a tamper contact. A switching output can be used to connect an LED or a bell. Due to its compact design, the Wiegand interface fits into all common flush-mounted boxes. For convenient installation, flush-mounted boxes with a depth of more than 50 mm are recommended. The versatile wiring options allow for individual use with the following Wiegand-compatible devices: code lock, fingerprint sensor, card and transponder reader, doorbell, tamper contact.
10. Homematic IP Dimming actuator for DIN rail mounting 3-fold
Dimmable control for up to three lights from the distribution cabinet: The robust housing design allows for professional yet simple installation on standard DIN rails. Versatile control options are available directly via standard 230 V switches, wirelessly through Homematic IP switches or remote controls, and even at any time via the smartphone app. Intelligent lighting control and dimming: Nearly continuous dimming and switching of up to three connected lights through independent channels for the perfect lighting ambiance in a smart home. Suitable for many types of bulbs: Dimmable LEDs, dimmable energy-saving lamps, incandescent bulbs, high-voltage halogen lamps, and low-voltage halogen lamps with electronic transformers. Convenient installation: Mounting on standard DIN rails is particularly easy with spring-loaded terminals. Even without programming, the function and wiring can be checked directly on the device during installation thanks to the illuminated display and device buttons. Flexible operation: Connected lights can be controlled flexibly via wireless switches or remote controls, as well as at any time through the free Homematic IP app (e.g., using time profiles). Alternatively, manual operation via conventional wired switches is also possible. The added value for a smart home: Suitable for expansions (e.g., attics) as well as for retrofitting. Can be easily installed in the distribution cabinet without any intervention at the room level. Existing switches and buttons can be reused easily. Ideal for replacing, for example, impulse switches.
