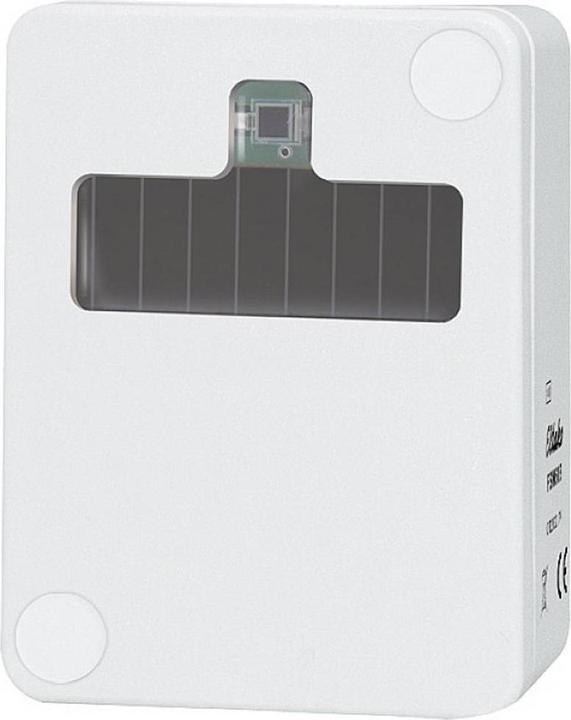

1. Eltako FHD60SB

Radio brightness twilight sensor in pure white with solar cell and battery (lifespan 5-8 years). Suitable for indoor and outdoor use. Dimensions: 60 x 46 x 30 mm. The sensor covers the range from 0 to 30,000 Lux. The range from 0 to 50 Lux can be evaluated by actuators in the twilight switch function. The radio sensor can be integrated into various actuators and the Professional Smart Home Controller.

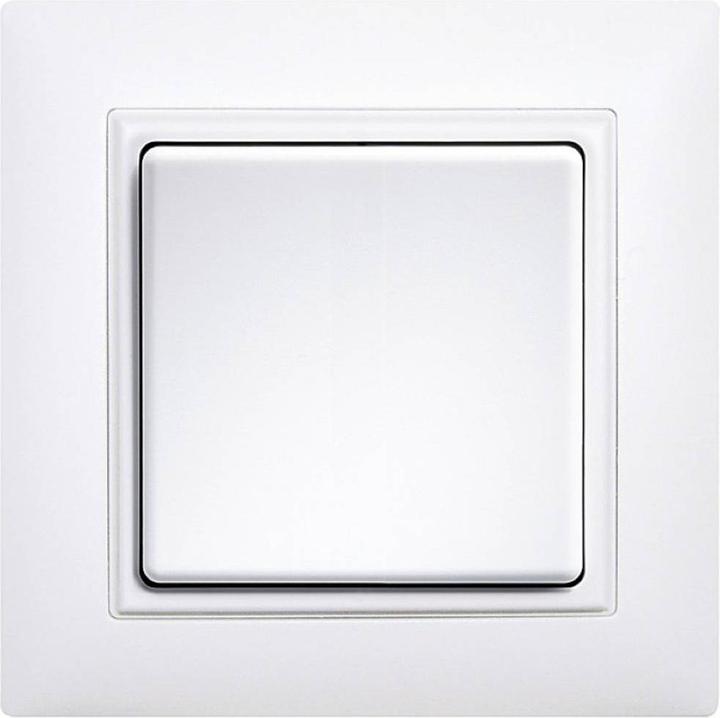

2. Eltako FT4CH-w

The Eltako FT4CH-w wireless switch is an innovative accessory for switch programs, distinguished by its user-friendly handling and versatile applications. With a compact design suitable for frames with an internal dimension of 60x60 mm, this wireless switch provides a practical solution for controlling electrical devices without the need for connection wires. The switch generates energy for radio telegrams with each button press, making it particularly energy-efficient and avoiding standby losses. The package includes various components, including a large rocker, a double rocker, and an intermediate frame, all in the same color. Installation can be done using either screw fastening or adhesive film, allowing for flexible installation on different surfaces. The FT4CH-w is also compatible with Swiss cover frames and offers the ability to send multiple signals, making it a versatile choice for modern smart home applications.

- Energy generation through button press, without connection wires
- Compatible with Swiss cover frames from ABB Normelec and Hager
- Flexible mounting options: screw fastening or adhesive film
- Sends up to four evaluable signals with double rocker.

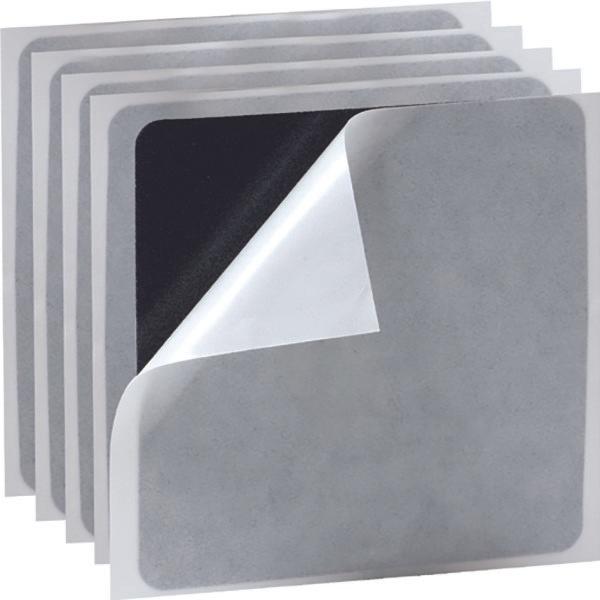

3. Eltako Adhesive foils

The Eltako adhesive films FT-KF are a practical solution for use with wireless switches. These self-adhesive films are available in a set of 10 pieces and provide an easy way to label or personalize switches and buttons. With a thickness of 0.8 mm and a width of 70 mm, they are versatile and can be applied effortlessly. The films are in a classic white color, offering a clear, unobtrusive appearance that blends into various environments. Ideal for use in living spaces, offices, or other areas where easy identification of switches is required. The adhesive films are not only functional but also an aesthetic addition to your switch program.

- Self-adhesive for easy application
- Set of 10 pieces for versatile use
- Thickness of 0.8 mm for optimal durability.

4. Eltako Smart

Eltako Smart Home Controller MiniSafe2

Manufacturer: Eltako
Designation: Smart Home Controller
Type: MiniSafe2
Bus system KNX: no
Bus system KNX-RF: no
Bus system Radio Bus: yes
Bus system LON: no
Bus system Powernet: no
Other bus systems: others
Bidirectional radio: yes
Design: IR interface
Mounting type: others
Tamper protection: no
With LED display: yes
Updatable: yes
Operating voltage: 5 V
Voltage type: DC
Power consumption: 1.3 W
Provider dependent: no
Visualization: no
Web server: no
Radio interface: yes
IR interface: yes
Protection class (IP): IP20

The MiniSafe2 is the smallest, universally applicable professional smart home controller from Eltako. The central control unit ensures that sensors and actuators operable via EnOcean radio can be conveniently and centrally controlled using the GFA5 app and voice commands. This allows for easy and versatile combinations of lighting, shading, climate control, security components, and much more, transforming any living environment into a professional smart home in no time. The basic features include app-based automation, update, and backup options. Migration from older Eltako controllers is possible. The MiniSafe2 can fundamentally be operated offline and locally, without the need for internet access. Remote access and cloud connectivity can be optionally activated during operation. An internet connection and a WLAN network are required for setup.
EAN: 4010312323939.

5. Eltako ELTA radio transmitter module

Eltako Wireless Transmitter Module FSMTB

Manufacturer: Eltako
Designation: Wireless Transmitter Module
Type: FSMTB
With handheld remote: yes
Wall-mounted transmitter: yes
Window transmitter: no
With remote control: no
Signal transmission: wireless
Mounting type: other
Color: other
Range: 30 m
Suitable for switches: yes
Suitable for dimmers: no
Suitable for blind switches: no
Suitable for display elements: no
Suitable for motion detectors: no
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Eltako Wireless Transmitter Module FSMTB: additional details
Wireless transmitter module for key and industrial switches with battery. Battery life 3-5 years. No standby loss. 65 mm long, 28 mm wide, and 8 mm deep. This wireless transmitter module is suitable for key switches NICE EKSEU (surface-mounted) and industrial switches EATON M22-D-G-X1/KC11/I (surface-mounted). The wireless transmitter module is placed into the switch according to the manual and connected to the terminals with wires. No external voltage required; a 3V CR2032 battery provides power for several years. To activate the battery supply, simply pull out the insulation strip. The wireless transmitter module sends 2 evaluable signals that can be learned into wireless actuators. It can be encrypted into all encodable actuators of series 61, 62, and 71, as well as into the FAM14. EAN: 4010312327654.

6. Eltako Power add-on for universal dimmer switch

Power add-on for dimmer switch FUD14/800W, power MOSFET up to 400W. Standby loss only 0.1 watt. Rail-mounted device for installation on a mounting rail. Power add-ons FLUD14 can be connected to the universal dimmer switches FUD14/800W, increasing the switching capacity by up to 200W for a single light fixture and up to 400W for additional fixtures, depending on the ventilation conditions, per power add-on. The two circuits for power enhancement can be executed with multiple FLUD14 units simultaneously. Supply voltage is 230V. No minimum load required. Automatic electronic overload protection and over-temperature shutdown. The lamp type of a FLUD14 power add-on may differ from the lamp type of the universal dimmer switch FUD14/800W in the power enhancement circuit with additional fixtures. This allows for mixing capacitive and inductive loads. A ventilation distance of 1/2 unit spacing must be maintained from adjacent mounted devices.

7. Eltako FTVW wireless push-button rocker switch

Eltako Wireless Switch Encryption Rocker FTVW

Manufacturer: Eltako
Designation: Wireless Switch Encryption Rocker
Type: FTVW
KNX Bus System: no
KNX Wireless Bus System: no
Wireless Bus System: yes
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: other
Surface Finish: matte
Color: white
Transparent: no

The Wireless Switch Encryption Rocker FTVW allows the encryption to be activated and deactivated on Eltako wireless switches, remote controls, and wireless transmitters using battery-free and wired EnOcean wireless modules. This does not apply to the push-button wireless switches and handheld transmitters with the EnOcean module PTM210. First, the rockers must be removed. For the FMH8 wireless mini remote controls, the wireless modules must be taken out and placed on a flat surface.

To activate encryption: The label "Encryption on" is located on the top side. Press the encryption rocker onto the wireless module and operate the rocker twice.

To deactivate encryption: The label "Encryption off" is located on the top side. Press the encryption rocker onto the wireless module and operate the rocker once.

The process of teaching in encryptable EnOcean wireless modules is described in the operating instructions of the encryptable actuators. These are marked with the key pictogram.

EAN: 4010312907030.

8. Eltako Bus push-button coupler for feedback LED FTS61BTKL (30014074)

Eltako Bus Button Coupler FTS61BTKL

Manufacturer: Eltako
Designation: Bus button coupler for feedback LED
Type: FTS61BTKL
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: yes
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: others
Bidirectional Radio: yes
Mounting Type: Flush-mounted
Number of Activation Points: 1
Mounting Method: Clamp mounting
Protection Class (IP): IP20
Minimum Depth of Device Box: 18 mm

The Eltako Bus Button Coupler FTS61BTKL is a bus button coupler for 4 conventional buttons with integrated 24V LEDs for connection to button gateways FTS14TG via a 2-wire button bus. The standby loss is only 0.2 watts.

The dimensions are 45 mm long, 45 mm wide, and 18 mm deep. Up to 30 bus buttons and/or bus button couplers FTS61BTKL can be connected to the terminals BP and BN of a button gateway FTS14TG. The permissible total cable length is 200 m. The RLC element included with the FTS14TG must be additionally connected to the terminals BP and BN at the furthest bus button or bus button coupler.

The power supply for the connected FTS61BTKL is provided via the 2-wire button bus with 29V DC while simultaneously transmitting data. Only standard bus or telephone cables should be used. Up to four conventional buttons T1-T4 can be connected to the 15 cm long connection cables. The opposite pole is T0. The connection cables can be extended up to 2 m.

The integrated 24V LEDs in the buttons display confirmation telegrams from actuators when the IDs of the actuators are entered into the ID table of the FTS14TG with PCT14.

Warning! Do not apply voltage. The pairs T1/T3 and T2/T4 can be defined as direction buttons. The bus is connected to BP and BN. Observe polarity!

EAN: 4010312316801.

9. Eltako R-rw 5 Frame pure white

The Eltako R-rw 5 frame in pure white is a functional cover frame specifically designed for use with switches measuring 55x55 mm. With its compact dimensions of 80x80 mm on the outside and a height of 15 mm, the frame integrates seamlessly into various interiors. The frame is made of high-quality, halogen-free plastic that is not only durable but also antibacterial. This makes it an ideal choice for environments where hygiene and safety are important. Installation is simple and straightforward via clamp mounting, allowing the frame to be installed both vertically and horizontally. The plain, pure white color provides a timeless aesthetic that harmoniously fits into any room design.

- Antibacterial material for enhanced hygiene
- Halogen-free for increased safety
- Easy clamp mounting for quick installation
- Versatile mounting direction (vertical/horizontal).

10. Eltako DAT71 Data adapter f.series 71

Eltako Data Transmitter DAT71

Manufacturer: Eltako
Designation: Data transmitter for series 71-PCT14
Type: DAT71
KNX Bus system: no
KNX Radio Bus system: no
Radio Bus system: yes
LON Bus system: no
Powernet Bus system: no
Other Bus systems: other
Bidirectional radio: no
Design: manufacturer-specific radio interface
Mounting type: other
Disassembly protection: no
With LED display: no
Updatable: no
Operating voltage: 5 V
Voltage type: DC
Protocol: other
Provider-dependent: no
Visualization: no
Web server: no
Radio interface: yes
IR interface: no
Protection class (IP): IP20

Further details:
Data transmitter for configuring actuators of series 71 with the PC tool PCT14. With the DAT71, an actuator can be connected to the PC. Data can be transferred from or to the actuator using PCT14. Additionally, the DAT71 can be used as a mobile data storage device. For this purpose, the DAT71 must be plugged onto the actuator and connected to the PC with a USB cable (not included). After opening PCT14, the actuator's configuration can be carried out according to the user manual.
EAN: 4010312316351.
