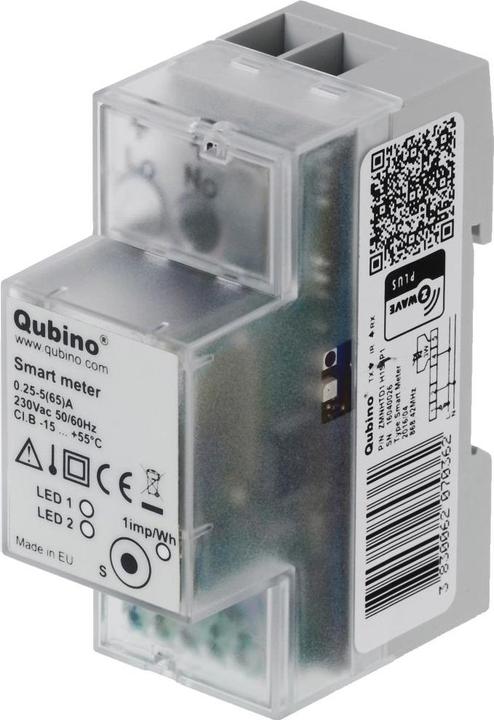

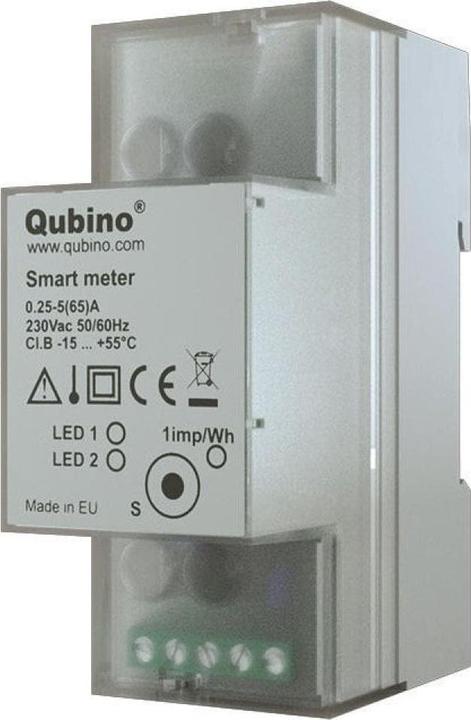

Z-Wave Qubino Smart Meter DIN Rail

Z-Wave Qubino Smart Meter DIN-Rail 1-Phase Meter

Measuring range: 0.25 - 65 A and 230 V / 3 W control output
Voltage and current measurement
Power measurement (kWh, var, kvarh, kVAh, PF)

The Z-Wave DIN-Rail Meter from Qubino is used for energy measurement on a single phase. It is suitable for use in homes and apartments, as well as in industrial and commercial buildings. Energy measurement is performed by rapidly sampling voltage and current values. A built-in microprocessor calculates energy, power, and power factor from these values. The module can be controlled via the Z-Wave network. It is designed for mounting on a DIN rail.

General:
System communication: Wireless
Protocol: Z-Wave Plus
Radio frequency: 868.42 MHz
Interfaces: IR
Control output:

Product type: Security and Sensors

Dimensions:
Max. range: 30 m
Depth: 36 mm
Width: 90 mm
Length: 69 mm

Environmental conditions:
Max. operating temperature: -10 - 40 °C

Power:
Power supply: Mains operation
Max. load: 65 A
Min. load: 0.25 A
Power consumption in operation: 2 W
Input voltage: 230 V.
