XPOtool Kleinhebeanlage

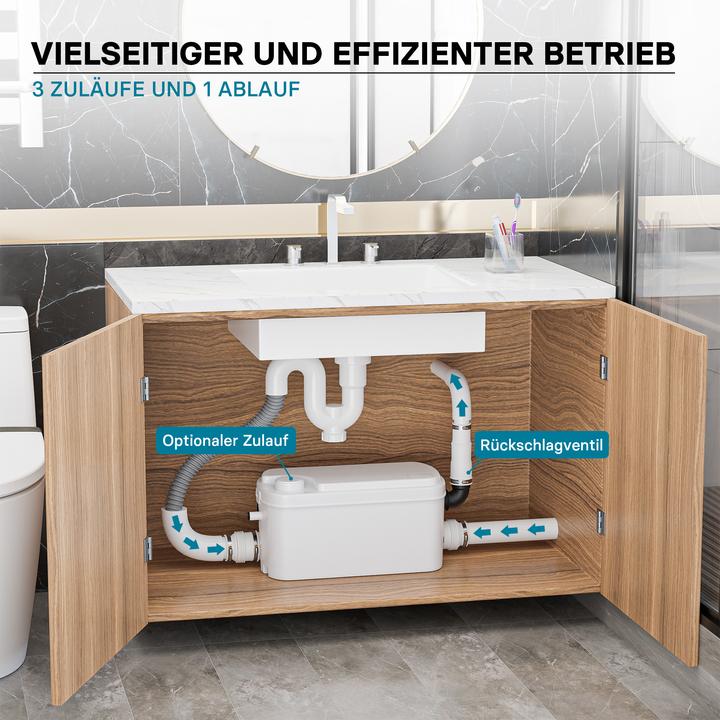

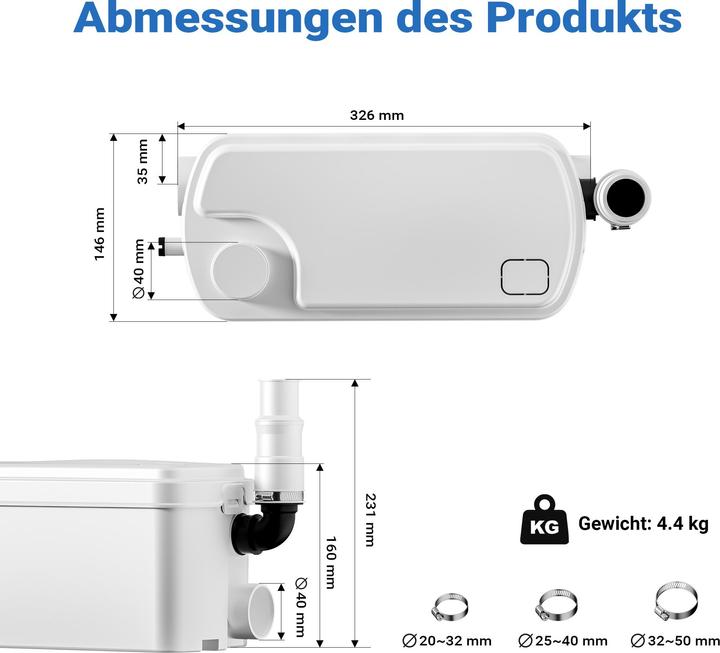

The 3/1 lifting unit from XPOtool is equipped with a 250 watt motor with an aluminium winding and a diameter of 95 mm. This ensures that the waste water from the sanitary facilities is removed and discharged into the main pipe. The lifting unit has three inlets, each with a diameter of 40 mm, for connection to waste water pipes and a 23/28 mm outlet, which makes it possible to connect the unit to several sanitary facilities. For example, the inlets can be connected to the washbasin, bath and shower.

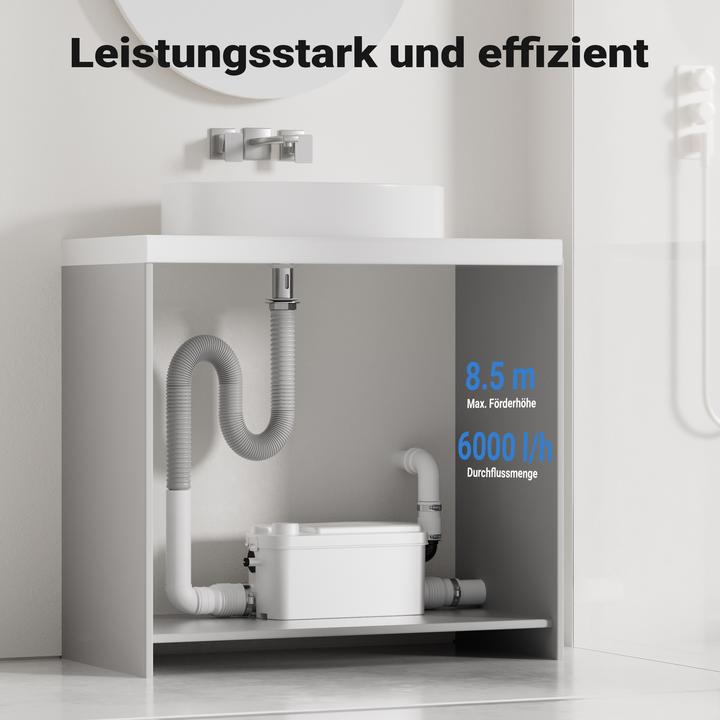

The lifting unit has a maximum flow rate of 100 l/min and can transport water vertically up to 8.5 m high and horizontally up to 85 m. The ratio of delivery height to delivery distance must be taken into account:

Although the delivery head can be up to 8.5 m and the delivery distance up to 85 m, the total delivery capacity of the lifting unit is made up of the ratio of the two values. In this case, 1 m head (vertical capacity) corresponds to 10 m pumping distance (horizontal capacity) with an assumed gradient of 1 % to the point of sewer discharge.

In most cases, devices installed in basements must have a delivery head of 4 m, which would still allow the pump to achieve a delivery distance of 30 m. In most cases, this is more than the pump's capacity. This is more than sufficient in most cases.

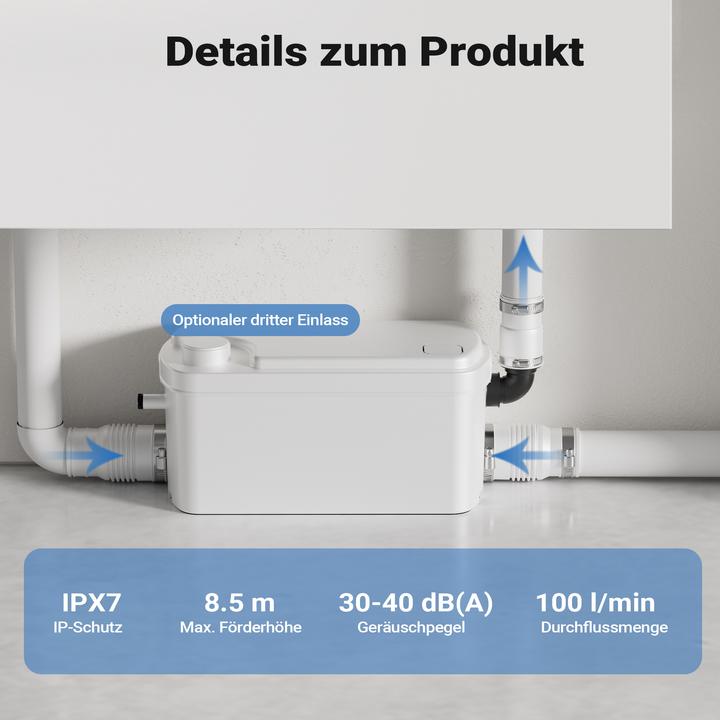

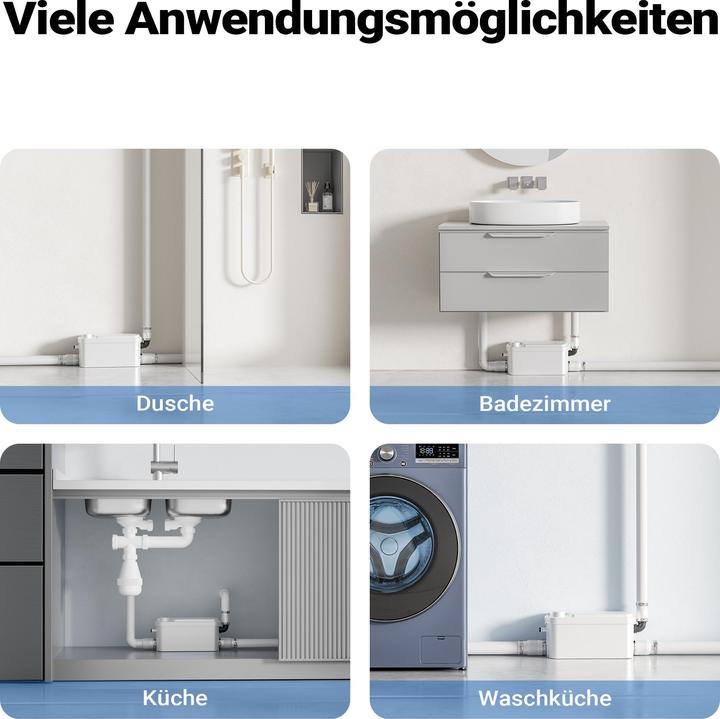

Thanks to its compact design, the lifting unit can also be installed in the tightest of spaces, making even a shower or washbasin in the loft possible. The system can withstand water temperatures of up to 65 °C. With a noise level of 30-40 dB, the 3/1 lifting unit from XPOtool operates pleasantly quietly and blends unobtrusively into its surroundings.
