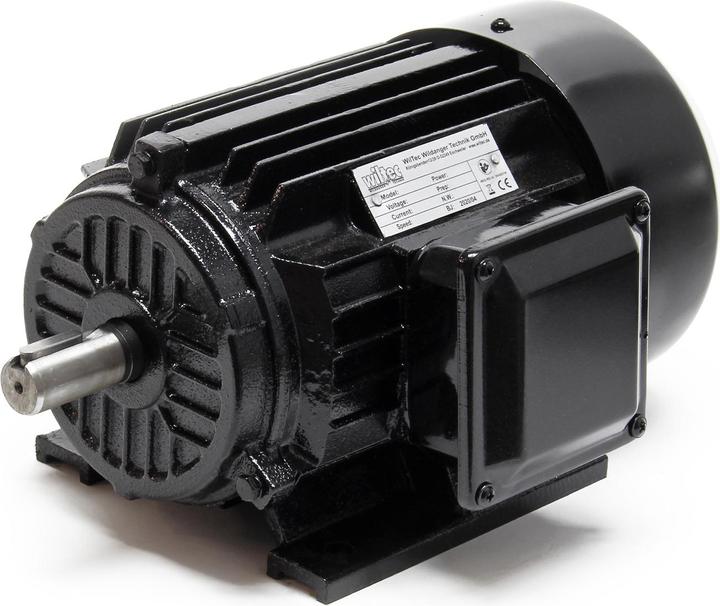

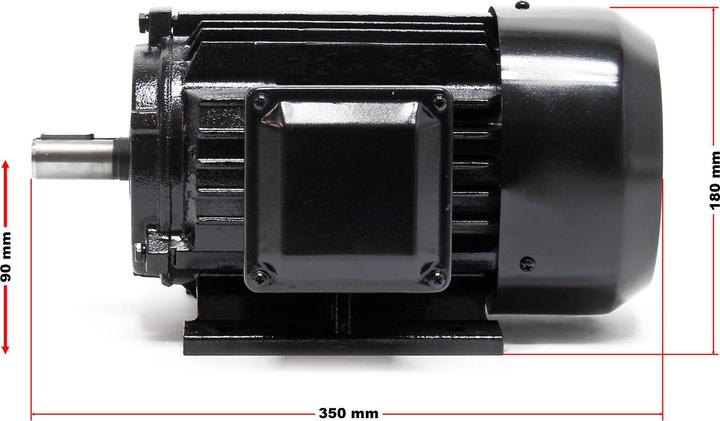

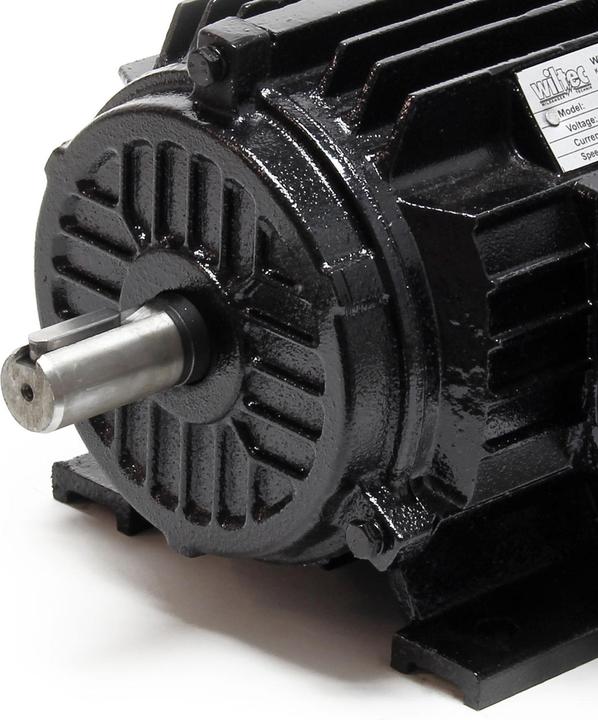

This 3-phase electric motor (asynchronous motor) in a 2-pole design corresponds to the standard size and is therefore easily interchangeable. With its 2.2 kW (3 hp) output, the electric motor achieves speeds of 2830 revolutions per minute. The electric motor with protection class IP44 has a B3 (base) design with a terminal box on the side. This means that the electric motor is mounted on its feet on the substructure. The motor is also equipped with a 24 x 49 mm shaft with a shaft height of 90 mm.
Electric motor type | Alternating current motor |
Rated voltage | 415 V |
Rated frequency | 50 Hz |
Item number | 45834659 |
Manufacturer | Wiltec |
Category | Electric motors |
Manufacturer no. | 62005 |
Release date | 15.5.2024 |
Colour | Black |
Exact colour description | Black |
Material group | Metal |
Material | Cast iron |
Electric motor type | Alternating current motor |
Rated voltage | 415 V |
Rated frequency | 50 Hz |
voltage type | AC |
Phase | 3 |
Number of poles | 2 x |
Protection type (IP code) | IP44 |
Power | 2.20 kW |
Max. Speed | 2830 RPM |
Power supply | Electrical connection |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 33.50 cm |

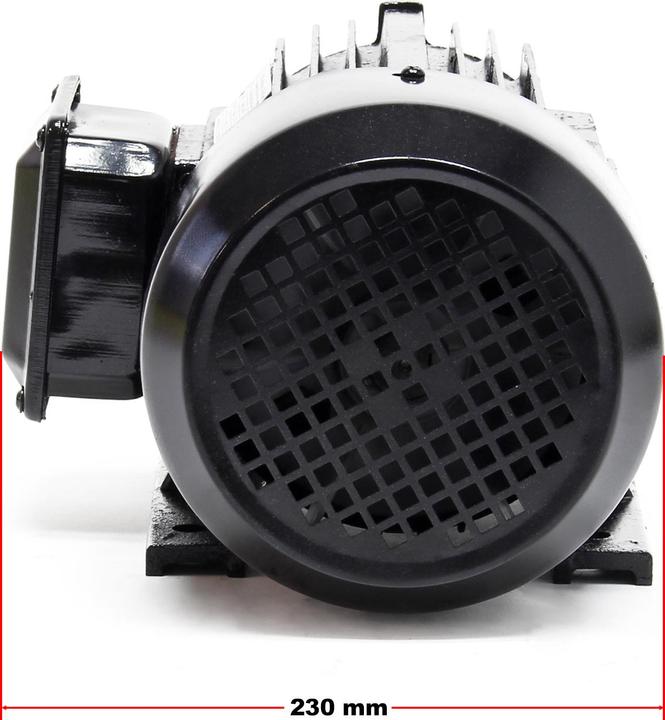

Width | 22.50 cm |
Height | 18 cm |
