Wiha

Wiha current clamp up to 1,000 V AC, CAT IV

The Wiha current clamp is a practical tool for working on electrical systems. It can measure current with the clamp jaws without interrupting the circuit. It performs various measurements: voltage in both AC and DC ranges, resistance, frequency, and capacitance. Additionally, it can conduct continuity tests and diode tests.

The clamp features a large LCD display with backlighting and a data hold function for the measurement results. An audible signal supports the continuity testing. With the LPF function and True-RMS capability, the current clamp provides noise-free effective values for safe testing. It has a measurement category of CAT IV up to 1,000 V for work on low-voltage sources.

Features:
- A measuring device for all relevant electrician tests
- Easy one-handed testing without circuit interruption
- Measurement of live wires without open contacts
- Large LCD display with backlighting
- Integrated flashlight function
- LPF and True-RMS measurement for precise results
- IP40 CAT IV 1,000 V

Technical Specifications:
- Voltage V DC min - max: 0 - 1500
- Voltage V AC min - max: 0 - 1000
- Current A DC: 400
- Current A AC: 400
- Resistance (MΩ): 40 MΩ
- Integrated flashlight: Yes
- Frequency (MHz): 5 MHz
- True RMS: Yes
- Backlighting: Yes
- Data Hold: Yes
- Measurement category: CAT IV 1,000 V
- Non-contact voltage testing: Yes
- Includes batteries (2x AAA)
- Continuity testing: < 30 Ω
- Total length: 220 mm
- Capacitance (µF): 100 µF.

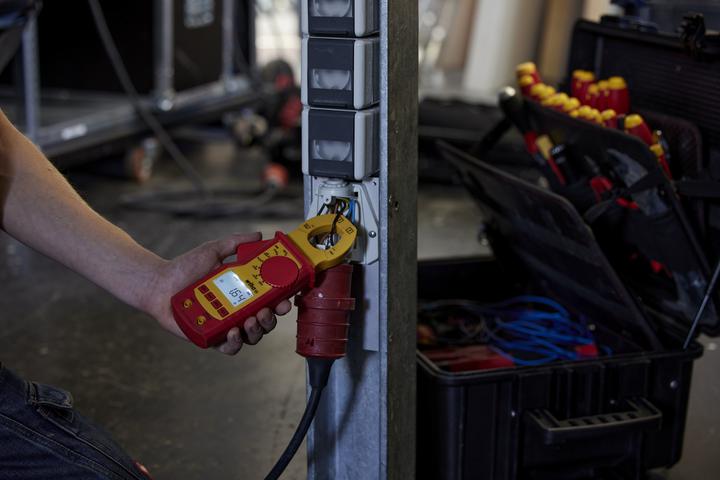

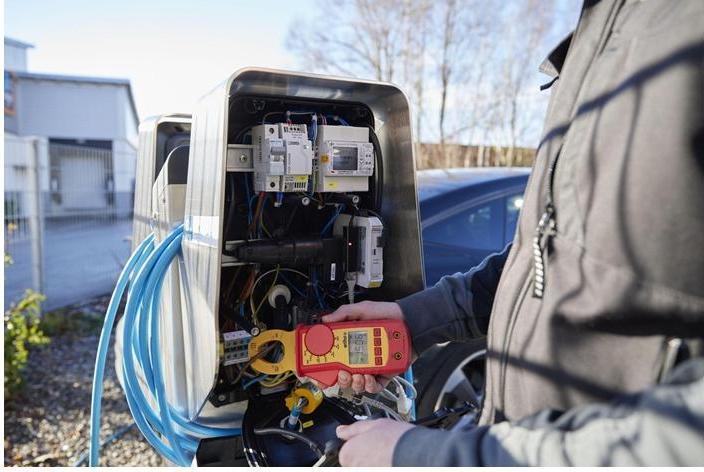

Actual product image Wiha Strommesszange (CAT IV 1000V, Pincer ammeter)

Key specifications

Multimeter type

multimeter technology

voltage type

measurement tolerance

measurement type

measurement category

The measurement category specifies the permissible areas of application of measuring and testing devices for electrical equipment and systems (e.g. voltage testers, multimeters, VDE testing devices) for use in low-voltage networks.
