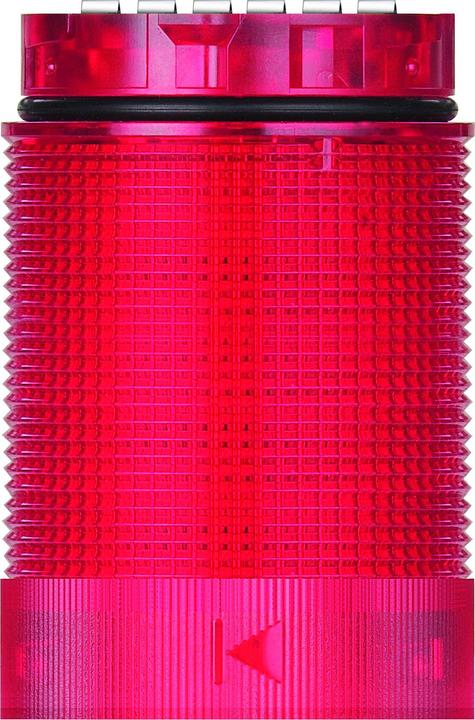

Werma TwinFLASH KS40 24V dc Red

Supply voltage: 24 V DC
Light type: Flashing
Lens color: Red
Mounting type: Surface mount
Lamp type: LED
Current type: DC

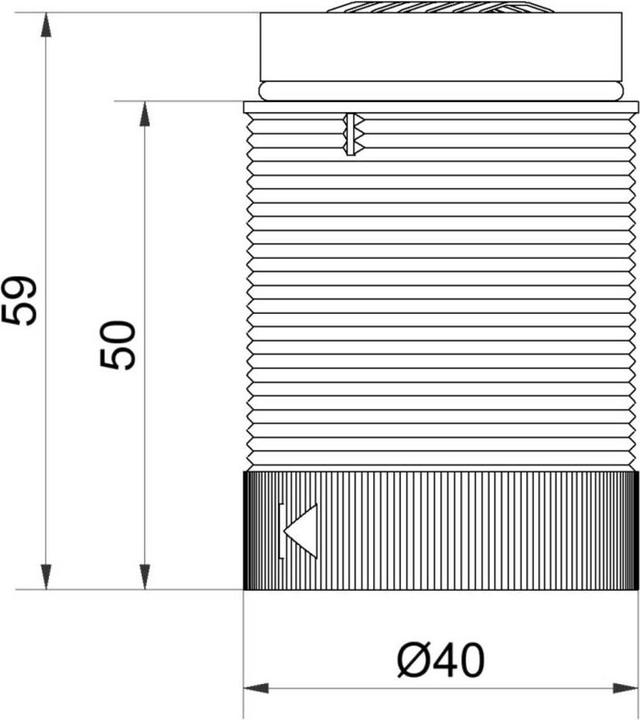

Base diameter: 40 mm
Housing color: Red
Lamp included: Yes
Series: KombiSIGN 40
Height: 58.6 mm
Max temperature: +60 °C

Stackable signal tower – KombiSIGN 40, 40 mm. The modular stackable signal tower WERMA KombiSIGN 40 is the ideal solution for increased safety requirements, machine productivity, and reduced downtime. Each KombiSIGN module is equipped with a bayonet lock and an integrated contact system. The modular design of these stackable towers allows for quick and easy installation.

Features and benefits:

• Suitable for machines and manual Andon display
• Modular system allows for completely free combination of optical and acoustic signal elements
• Seconds-fast mechanical and electrical connection of elements via a bayonet connection system
• Absolutely safe exchange of elements (contact voltage safe) without tools
• Protection class IP66
• Up to 5 elements can be mounted on a connection base
• Flexible combination of optical and acoustic elements
• Optical isolation, as the O-ring seal prevents the illumination of adjacent elements
• Operating temperature range: –30 to +60 °C
• Polycarbonate, Ø 40 mm.
