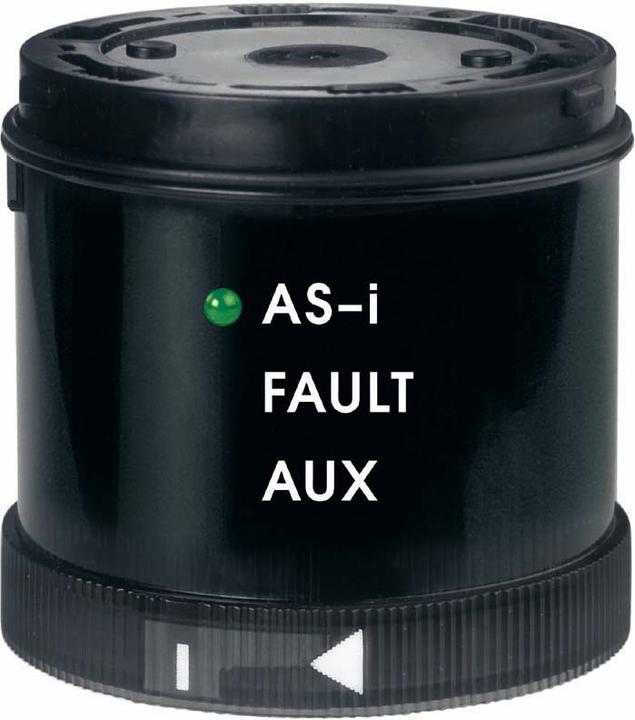

Werma AS-Interface element,standard slave,KS71

Accessory variant: AS-i Element Standard
For use with: KombiSIGN 71

cULus, CE, ASI, GOST-R. AS interface elements for KombiSIGN 71. The AS interface element enables signal tower communication by connecting actuators to the AS interface network system. The AS interface element is available with either Standard Slave or A/B technology. The Standard Slave models can address up to 31 modules and trigger four levels. The A/B technology allows addressing up to 62 modules and triggering three levels. The element is mounted directly onto the connection terminal of the individual signal tower as the first level. It can be used with the following signal elements: steady light, flashing light, LED, warning buzzer, and siren. Features and benefits: LEDs indicate power status, switchable power supply from internal bus supply to additional external power supply, addressing socket, reduction of complex wiring, protection class IP65. Standard Slave AS interface: Standard Slave with 31 addresses, maximum of 4 signal elements possible. A/B Slave AS interface: A/B Slave with 62 addresses, maximum of 3 signal elements possible.
