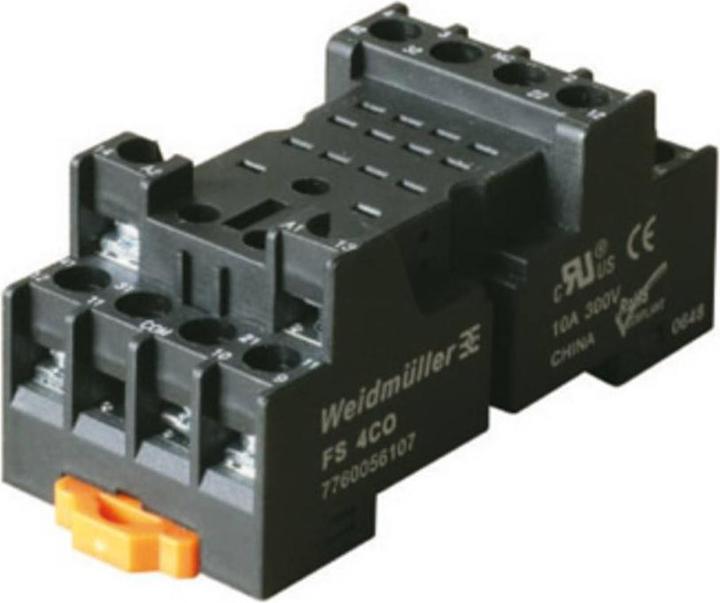

Weidmüller FS 4CO

Contact arrangement: 4-pole changeover
Mounting type: Front panel mounting
Connection type: Screw
Length: 31 mm
Depth: 29.5 mm
Height: 71 mm
Dimensions: 31 x 29.5 x 71 mm
Special features: Protection class IP20, product weight: 48.1 g

DRM relay Weidmüller D series. Relay modules of the D series have been specifically designed for demanding industrial applications. Many industrial applications with voltages between 110 and 220 V are used for controlling actuators. With load currents exceeding 100 mA, these high voltages generate arcing, which causes a significant degree of wear on the relay contacts. The D series relay modules are intended for universal use in a wide range of applications in the industry. The D series is much more reliable than conventional solutions, minimizing maintenance costs. Thanks to the series-connected contacts, integrated magnetic latching, and low-wear contacts, arcing is effectively suppressed, resulting in a significantly longer lifespan. 2 or 4 CO contacts, compact design, wide range of coil voltages, optional test button (AC red, DC blue), optionally with integrated status indicator (AC red, DC green) and/or flyback.
